ALZRC DEVIL X360 - 页 25

组装说明 ASSEMBLY SECTION
24

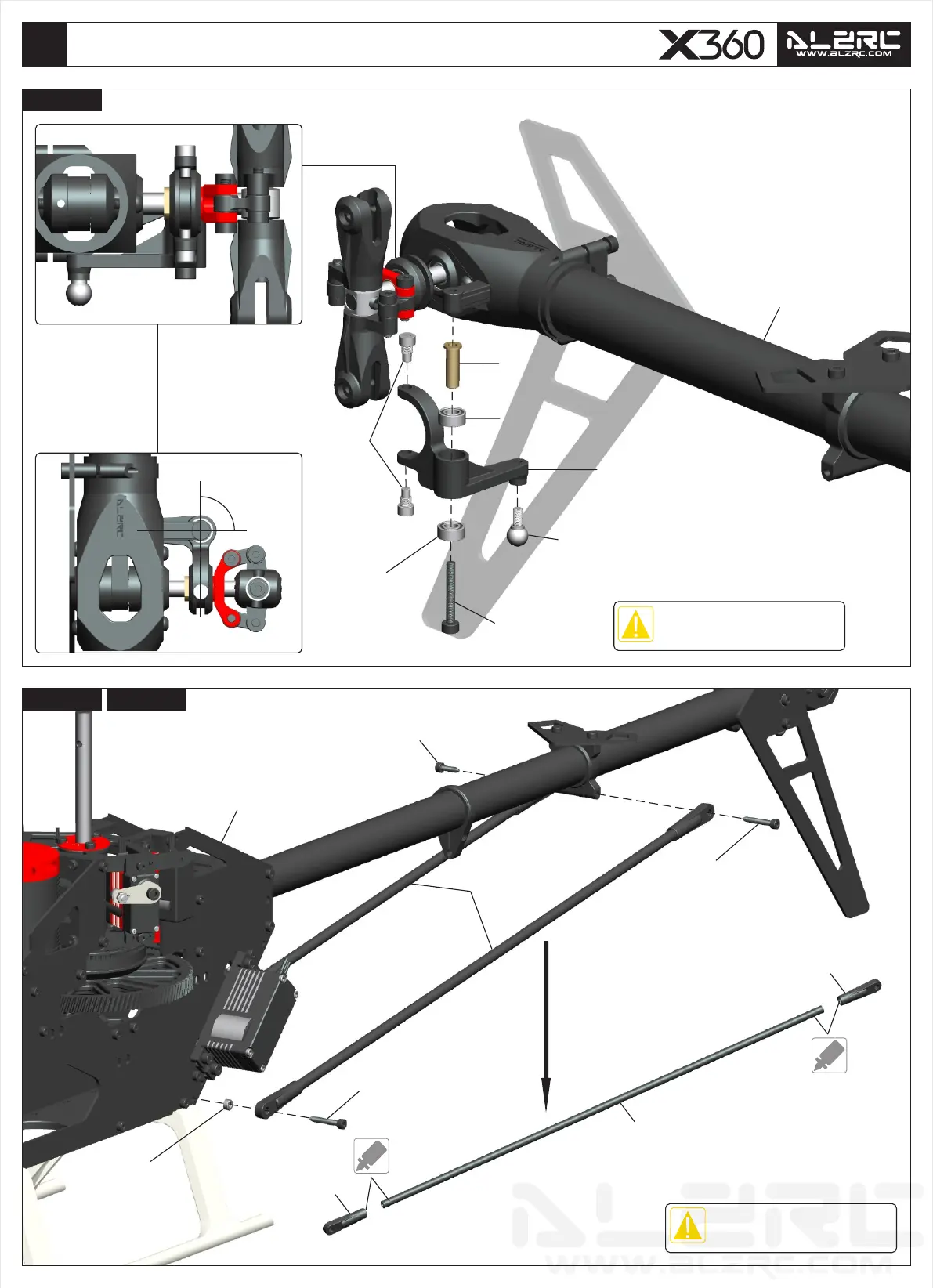

尾旋翼控制组摇臂
Bell Crank Lever
Chapter 39
圆头内六角螺丝
Socket Head Screw
M2x14mm
轴承
Bearing
Φ3xΦ6x2.5mm
轴承
Bearing
Φ3xΦ6x2.5mm
球头 M2
Linkage Ball M2
Φ4.70x9.0mm
变距环螺丝
Tail Pin Screw
尾旋翼控制组摇臂
Bell Crank Lever
第38步组装完成
Assembled in Chapter 38
请勿过度拧紧，以确保摇摆顺畅。
Do not over-tighten to ensure it
can swing smoothly.
90 º
尾管支撑杆组
Tail Boom Brace Assembly
Chapter 40
DX360-H
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x14mm
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x8mm
垫片
Washer
Φ2xΦ4x2mm
第39步组装完成
Assembled in Chapter 39
螺丝锁入塑胶零件请勿过度拧紧。
Do not over-tighten the screws
into the plastic parts.
尾管支撑杆
Tail Boom Brace
铜套
Collar
Φ2xΦ3x9.6mm
碳纤杆
Carbon Fiber Rod
Φ2xΦ4x280mm
CA
G
l
u
e
C
A
G
lue
尾管支撑杆头
Tail Boom Brace Head
尾管支撑杆头
Tail Boom Brace Head
DX360-I
DX360-K
圆头内六角螺丝
Socket Head Screw
M2x14mm
