组装说明 ASSEMBLY SECTION
齿轮总成
Gear Assembly
Chapter 21
DX360-F
14
前尾驱动皮带轮组
Front Tail Pulley Assembly
Chapter 20
DX360-F
第18步组装完成
Assembled in Chapter 18
第19步组装完成
Assembled in Chapter 19
圆头内六角螺丝
Socket Head Screw
M2x5mm
2
4
3
24
3

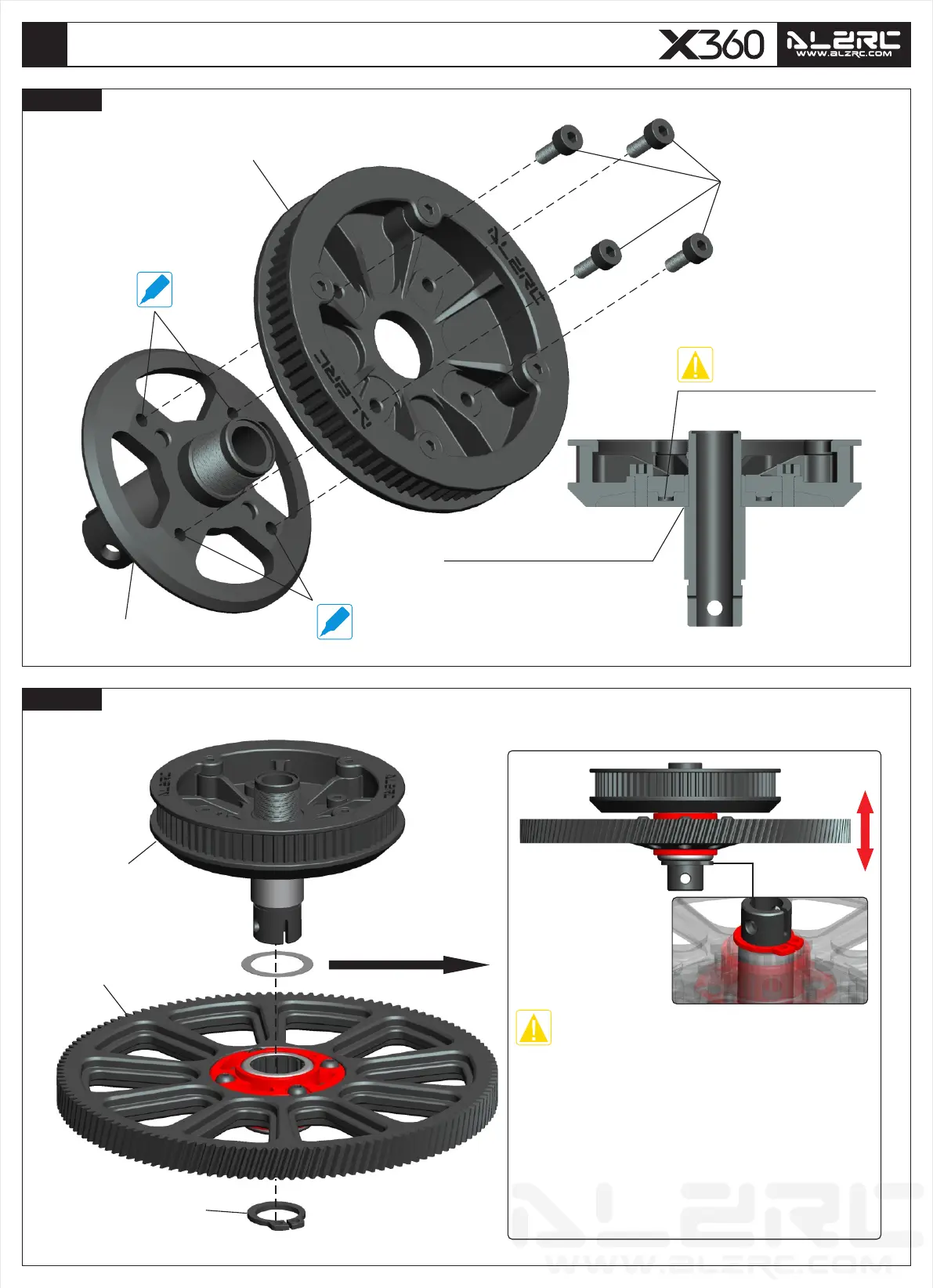

确保上齿轮固定座锁入单向轴承套最
底处。
Make sure the front tail pulley hub
is locked into the bottom of the
one-way bearing sleeve.
注意皮带轮的定位销。
Please pay attention to the
positioning pin of the pulley.
第20步组装完成
Assembled in Chapter 20
第17步组装完成
Assembled in Chapter 17
卡簧
Circlip
垫片
Washer
Φ10xΦ13.5x0.1mm
装配卡簧后，检测斜主齿轮与皮带轮间隙，可以通过加垫
片的方式减少间隙。
Check the gap between the helical main gear and the
pulley after install the circlip. The gap can be reduced
by adding washers.
注意：请认真检查，以确保齿轮能顺滑转动，如果不顺滑，
可以减少一片垫片，直到齿轮确保顺滑转动。
Note: Check the main gear carefully to make sure
you can rotate the main gear smoothly. If you feel too
much friction, you have to remove a washer until the
gear can rotate smoothly.
