组装说明 ASSEMBLY SECTION
16

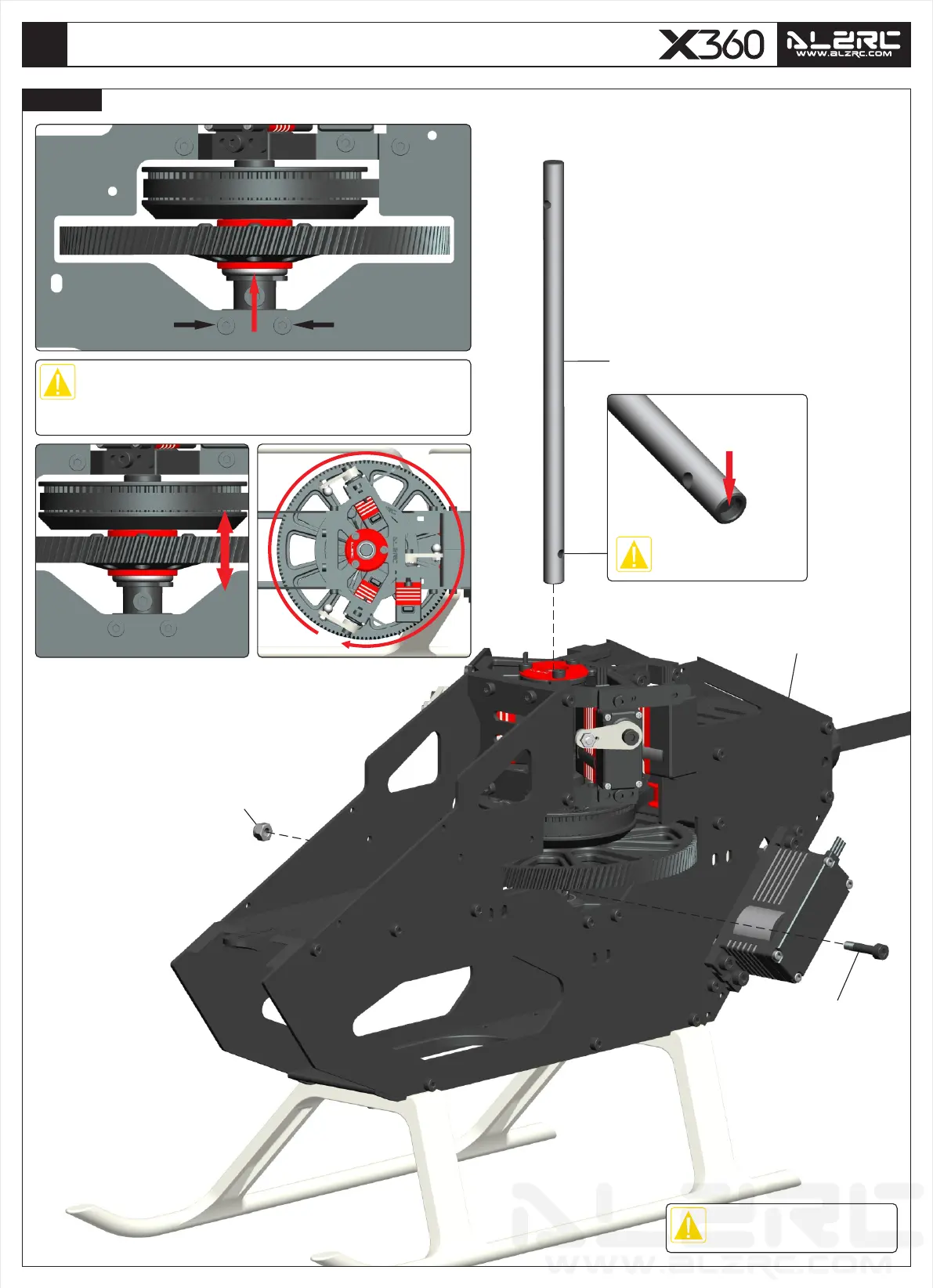

DX360-G
主轴
Main Shaft
Chapter 24
主轴
Main Shaft
Φ6x125mm
凹孔面朝下。
Concave face down.
第23步组装完成
Assembled in Chapter 23
防松螺帽
Locking Nut
M2.5
圆头内六角轴套螺丝
Socket Collar Screw
M2.5x12mm
安装好主轴后，第三主轴轴承座向上压紧，在确保齿轮总成顺滑转动
后，拧紧轴承座四颗螺丝。
After installed the main shaft, pressed up the third bearing mount.
Tighten the four screws of the mount after ensure the gear assembly
can rotate smoothly.
螺丝锁入塑胶零件请勿过度拧紧。
Do not over-tighten the screws
into the plastic parts.
检查齿轮总成与机身组的上下间隙。
Check the gap between the gear assembly and fuselage.
旋转主轴，检查确保齿轮总成顺滑转动。
Rotate the main shaft to make sure the gear assembly can
rotate smoothly.
