ALZRC DEVIL X360 - 页 35

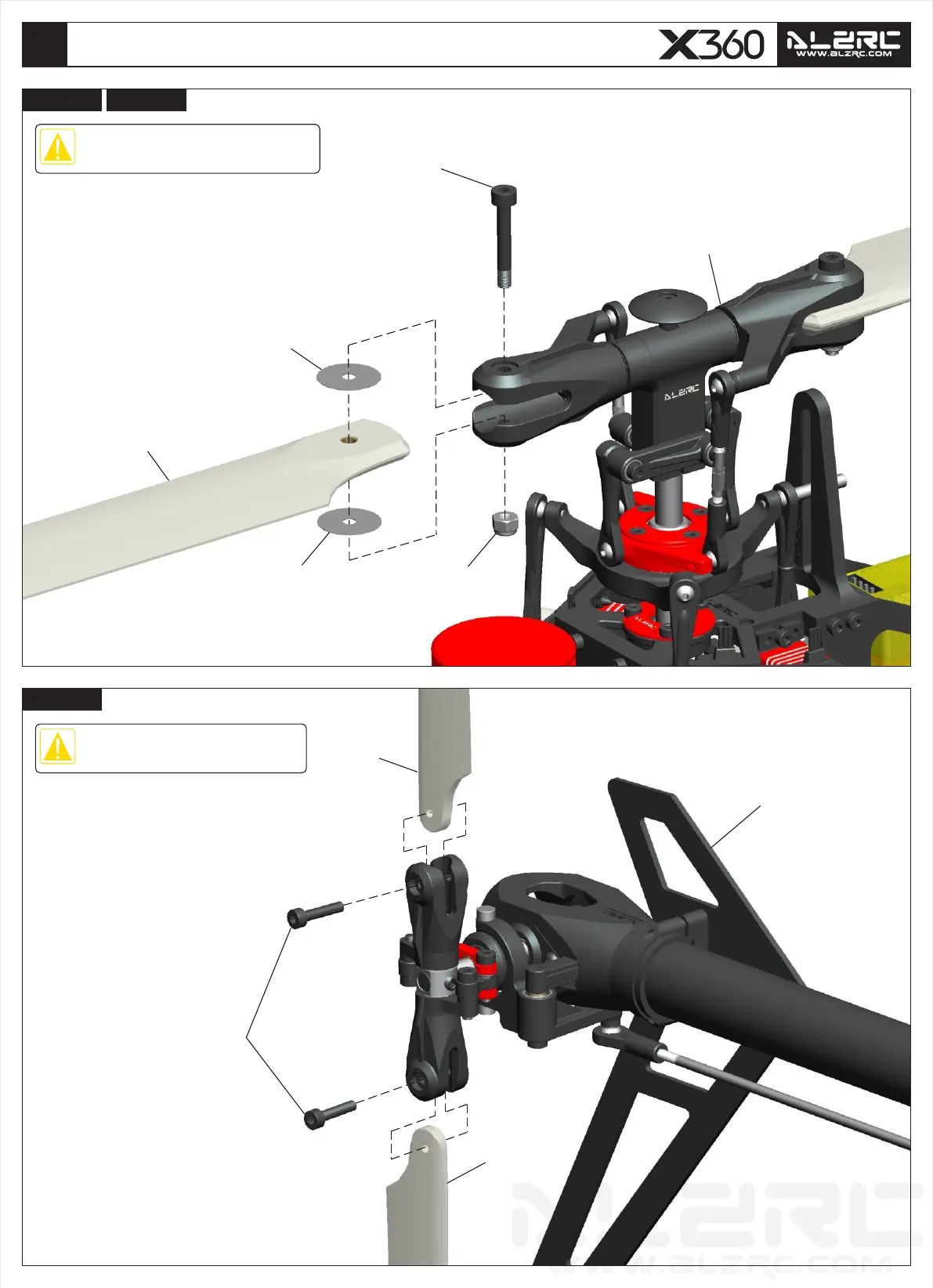

组装说明 ASSEMBLY SECTION
34
DX360-O
垫片
Washer
Φ3xΦ14x0.1mm
垫片
Washer
Φ3xΦ14x0.1mm
碳纤主旋翼
Carbon Fiber Blades
370mm
圆头内六角轴套螺丝
Socket Head Collar Screw
M3x20mm
防松螺帽
Locking Nut
M3
碳纤主旋翼
Carbon Fiber Blades
Chapter 55
第54步组装完成
Assembled in Chapter 54
请按顺时针方向正确安装主旋翼
Please install the main blades correctly by
clockwise direction.
尾旋翼
Tail Blade
Chapter 56
DX360-O
第55步组装完成
Assembled in Chapter 55
尾旋翼
Tail Blade
62mm
尾旋翼
Tail Blade
62mm
圆头内六角螺丝
Socket Head Screw
M2x10mm
请按逆时针方向正确安装尾旋翼。
Please install the tail blades correctly by
anticlockwise direction.
DX360-P
