组装说明 ASSEMBLY SECTION
29

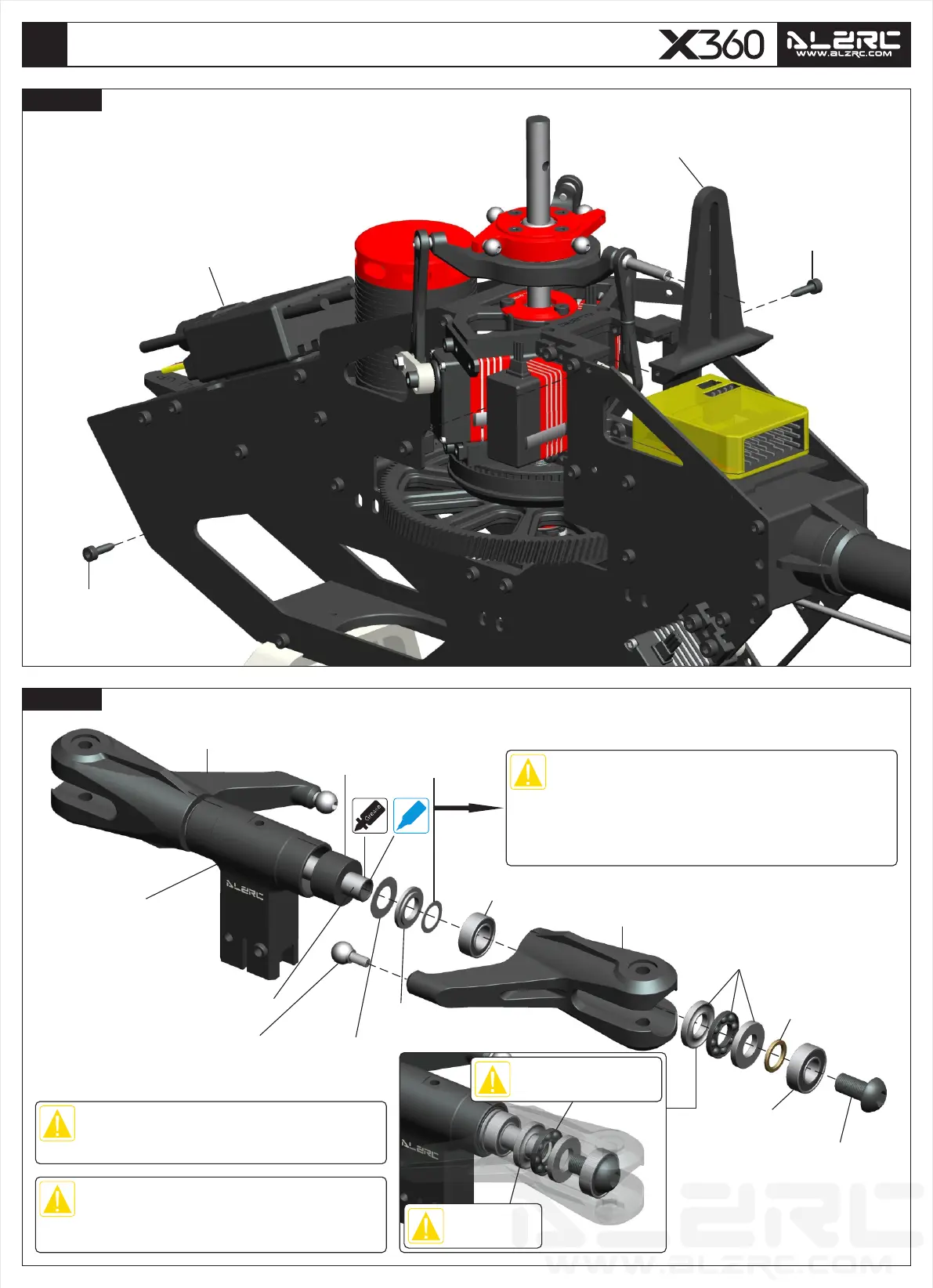

十字盘导板
Anti-Rotation Bracket
Chapter 47
第46步组装完成
Assembled in Chapter 46
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x8mm
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x8mm
十字盘导板
Anti-Rotation Bracket
DX360-M
主旋翼夹座
Main Rotor Holder
主旋翼固定座
Main Rotor Housing Set
横轴
Spindle Shafts
Φ5x54.2mm
球头 M2
Linkage Ball M2
Φ4.70x9.0mm
主旋翼组
Main Rotor Head Assembly
Chapter 48
主旋翼夹座
Main Rotor Holder
横轴垫圈
Spindle Shaft
Damper Rubber
Φ5xΦ10x6mm
出厂零件包装如果是已组装品，请务必确认各部件是否
锁紧上胶。
For original manufactory package, If the product is
already assembled by factory, please check again if
parts are firmly secured and applied with some glue.
半圆头内六角螺丝
Socket Button Head
Collar Screw
M4x8mm
2
4
3
轴承
Bearing
Φ5xΦ10x3mm
垫片
Washer
Φ5xΦ7x0.5mm
推力轴承
Thrust Bearing
Φ5xΦ10x4mm
内孔较大在里面
Larger ID Inside
凹槽面朝内
The Groove Faces Inward.
轴承
Bearing
Φ5xΦ9x3mm
垫片
Washer
Φ5xΦ7x0.1mm
对于强劲3D飞行或高转速转动，建议横轴垫圈与轴承之间至少
加一片垫片。大约20个起落后，请检查虚位，如果感觉松散，
可以再增加一片垫片。
We recommend assembling with at least one washer
between the damper and bearing for 3D flight or high RPM.
After about 20 flights, please manually check the head
dampening, you can add one 0.1mm washer if the
dampening feels loose.
垫片
Washer
Φ5xΦ9x1.1mm
垫片
Washer
Φ5xΦ9x0.1mm
适当拧紧螺丝，不可硬拧以避免螺丝受损，影响飞行安
全性。
Tighten the screws properly. Do not over-tighten and
damage the screws or it will affect flight safety.
DX360-L
To Next Page
