ALZRC DEVIL X360 - 页 6

5

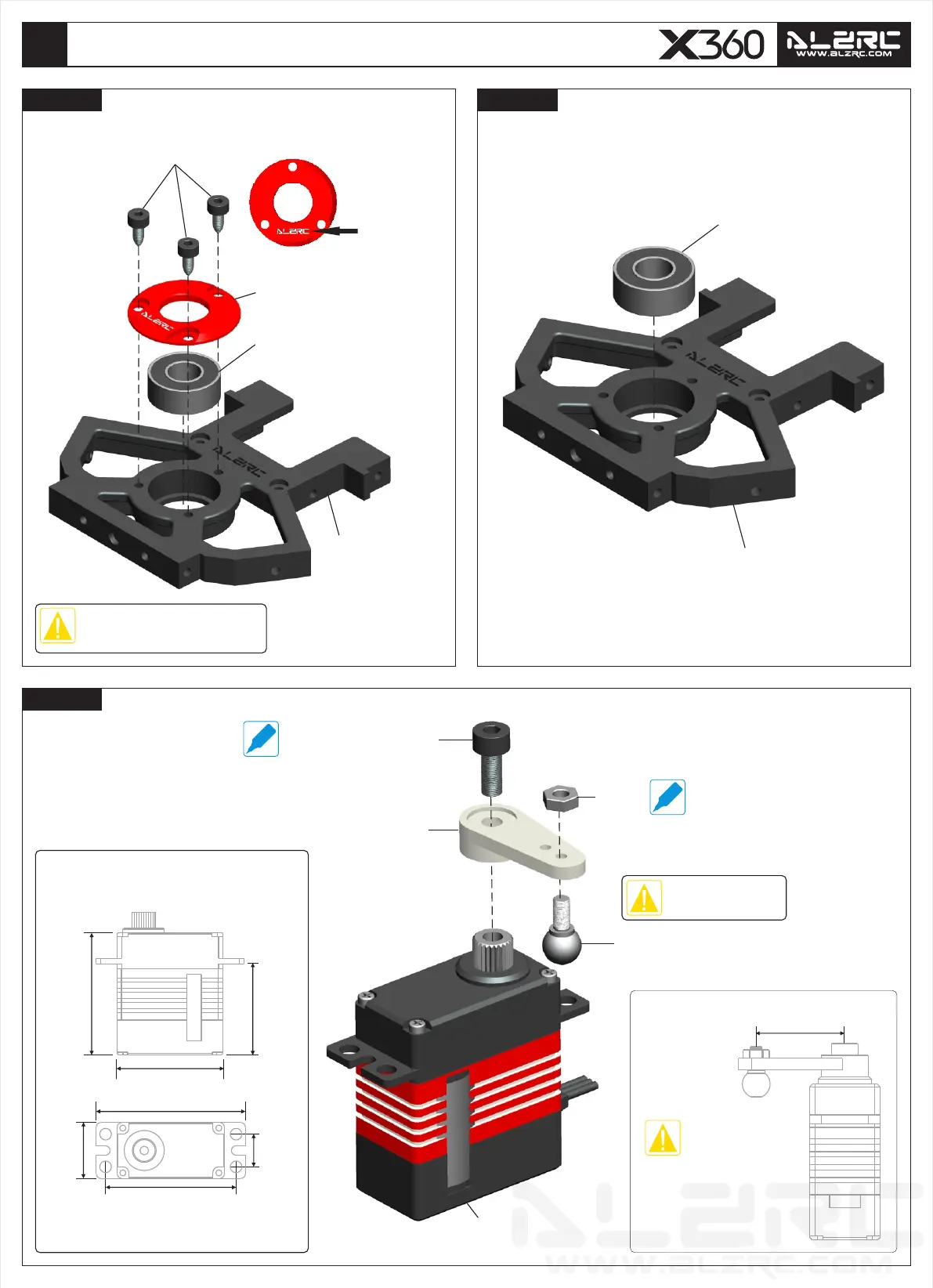

组装说明 ASSEMBLY SECTION
DX360-A
舵机固定座-下
Servo Mount - Bottom
Chapter 2
舵机固定座-上
Servo Mount - Top
Chapter 1
舵机固定座
Servo Mount
轴承
Bearing
Φ6xΦ13x5mm
舵机固定座轴承盖
Servo Mount Bearing Cap
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x5mm
商标向前
Logo Forward
螺丝锁入塑胶零件请勿过度拧紧。
Do not over-tighten the screws
into the plastic parts.
轴承
Bearing
Φ6xΦ13x5mm
舵机固定座
Servo Mount
十字盘舵机 -3
Swashplate Servos - 3
Chapter 3
圆头内六角螺丝
Socket Button Head Screw
M2.5x6mm
球头 M2
Linkage Ball M2
Φ4.70x9.0mm
禁止过度拧紧。
Do not over tighten.
螺帽 M2
Nut M2
24
3
舵机臂
Servo Arm
24
3
建议使用扭力 3Kg*cm 以上舵机。
Recommend to use 3Kg*cm or higher torque
servo.
20mm
26.5mm
23mm
32mm
28mm
12mm
7mm
舵机尺寸参考
Reference Size for Servo
微型数字金属舵机
Micro Digital Metal Servo
舵机臂球头与螺丝中心距
约：12-15mm。
The distance between the
central of linkage ball and
servo arm screw about
12-15mm.
12-15mm
