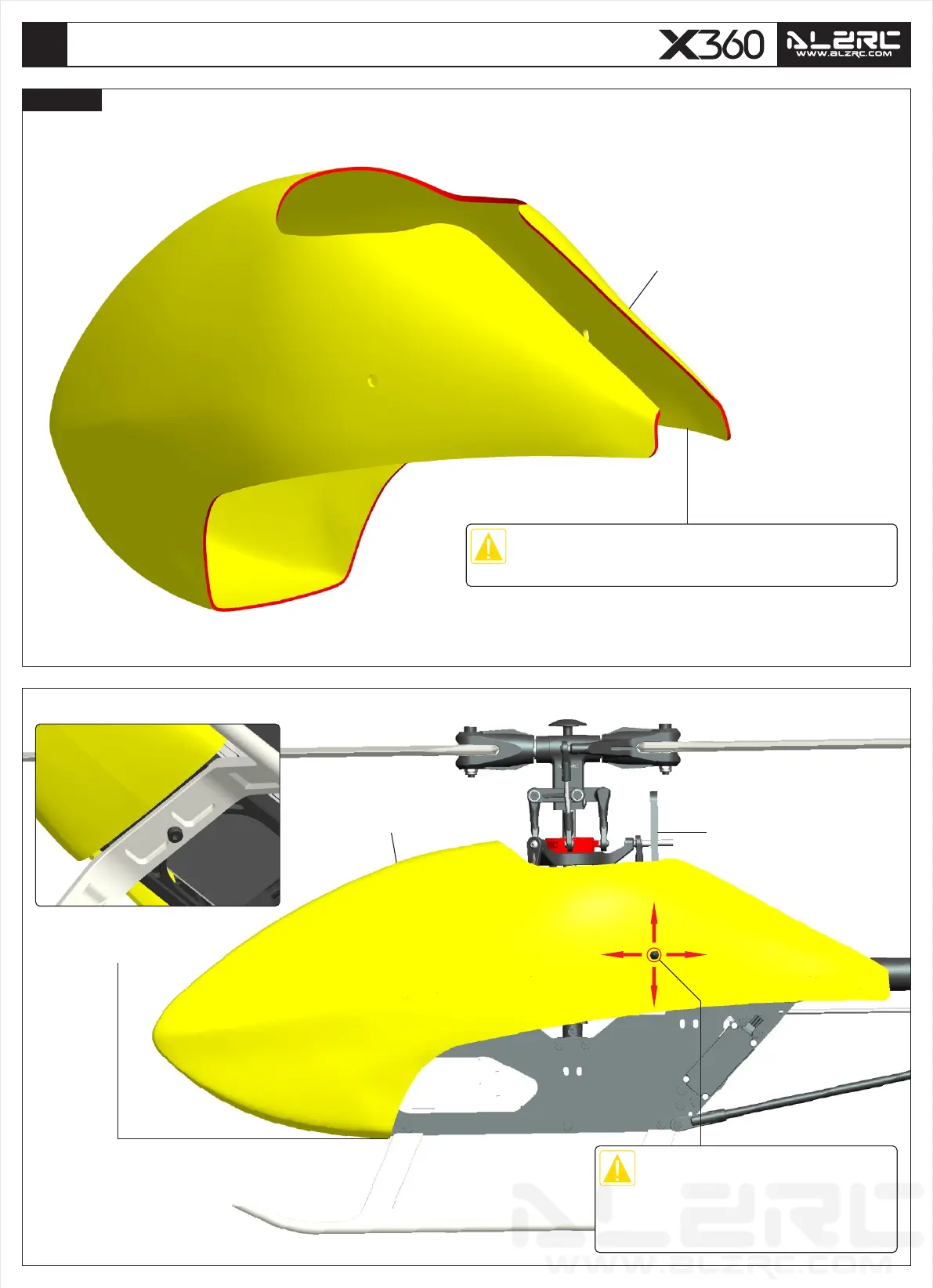

组装说明 ASSEMBLY SECTION
35
Canopy
玻纤彩绘外壳
Fiberglass Painting Canopy
Chapter 57
玻纤彩绘外壳
Fiberglass Painting Canopy
玻纤配件的制造工艺会导致边缘非常锋利，我们建议用砂纸打磨边缘。
The manufacturing process of the Fiberglass parts often leaves
micro-burrs edges. We recommend de-burring the edges with
sand paper.
玻纤彩绘机头罩的初始安装
Initial Installation of Painting Fiberglass Canopy
Chapter 58
如果固定孔位正确，将固定孔扩大至 。3-5mm
如果有些微偏差，扩孔时则按照偏差定位扩孔。
If the canopy holes was on the correct
position, please enlarge the hole's diameter
to 3-5mm.
If there is a slight deviation, please enlarge
the holes according the deviation.
机头罩先初始安装，确认扩孔位置正确后，再
进行扩孔安装机头罩固定垫圈。
Initial installation just for canopy holes position
confirmation. After confirm the holes position
is corrected, enlarge the 2 canopy holes, then
install the washer.
第57步组装完成
Assembled in Chapter 57
第56步组装完成
Assembled in Chapter 56
将头罩安装至底板下侧。
Put the canopy to the underside of
the bottom plate.
