组装说明 ASSEMBLY SECTION
17

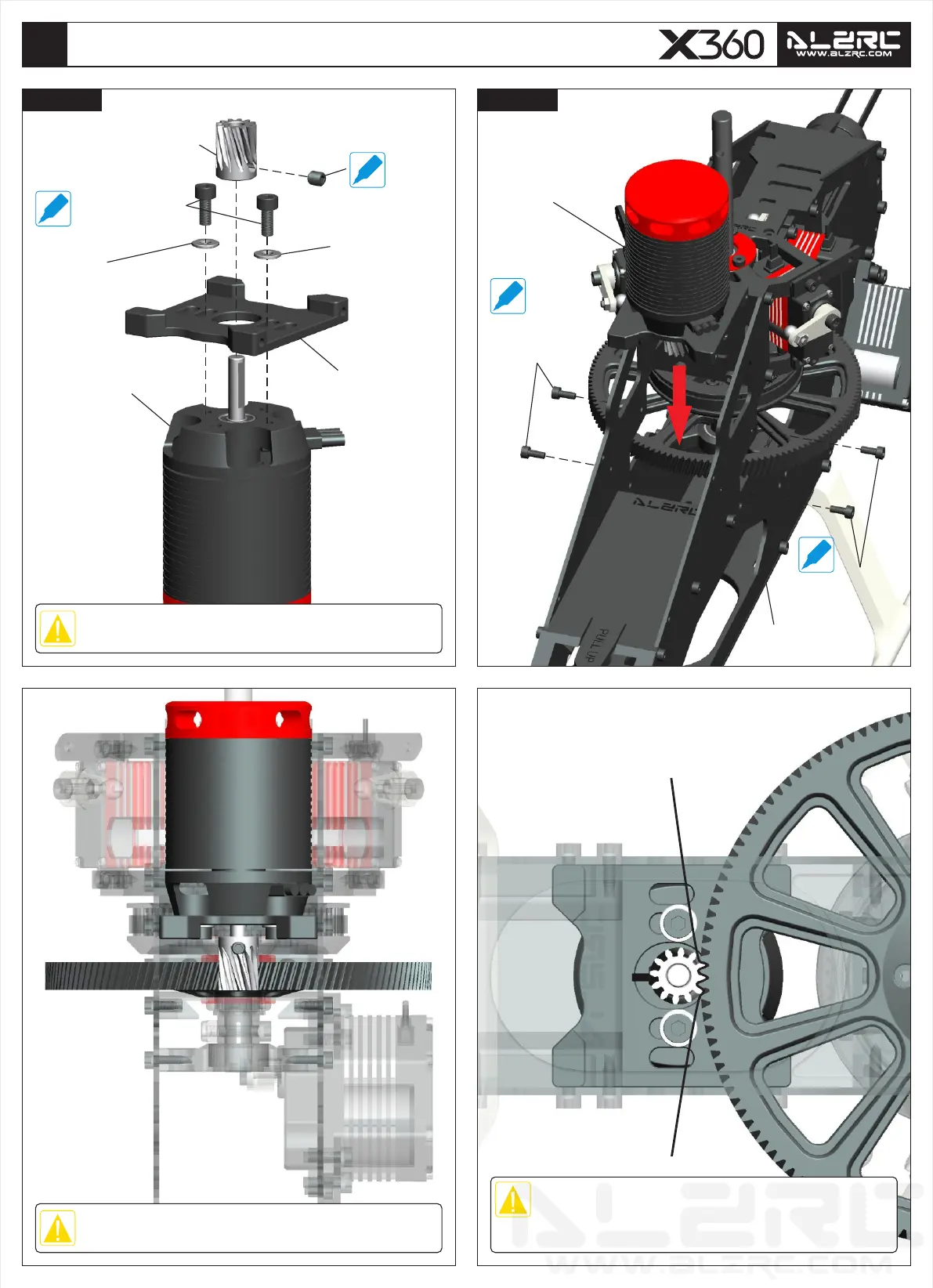

马达固定座安装
Installation of Motor Mount
Chapter 26
马达固定座
Motor Mount
Chapter 25
ALZRC - 无刷马达
ALZRC - Brushless Motor
2525 - 1800KV
马达固定座
Motor Mount
2
43
止泄螺丝
Set Screw
M3x3mm
圆头内六角螺丝
Socket Head Screw
M2.5x6mm
24
3
垫片
Washer
Φ2.5xΦ5.8x0.5mm
垫片
Washer
Φ2.5xΦ5.8x0.5mm
未调整电机齿与斜主齿轮间隙之前，请勿拧紧螺丝。
Do not tighten the screws before adjusting the gap between
motor gear and main gear.
圆头内六角螺丝
Socket Head Screw
M2x5mm
243
圆头内六角螺丝
Socket Head Screw
M2x5mm
2
43
第24步组装完成
Assembled in Chapter 24
第25步组装完成
Assembled in Chapter
25
7075 铝制马达齿轮
7075 Aluminium Motor Gear
安装完成后确认马达齿轮与斜主齿轮持平，如图！
After installation, make sure the motor gear and the main gear
is on a same line, as the figure shows.
通过底板孔位可以直接调节马达螺丝，使用一张纸滚入齿轮间，
可调节齿轮间隙为0.1mm.
It can be adjusted the motor screws through the hole of bottom
plate. A strip of paper is used to roll into the gears to adjust the
gear's gap to 0.1mm.
底面
Bottom
正面
Front
DX360-G DX360-G
