组装说明 ASSEMBLY SECTION
25
尾舵机控制连杆组
Tail Control Rod Assembly
Chapter 41
DX360-H

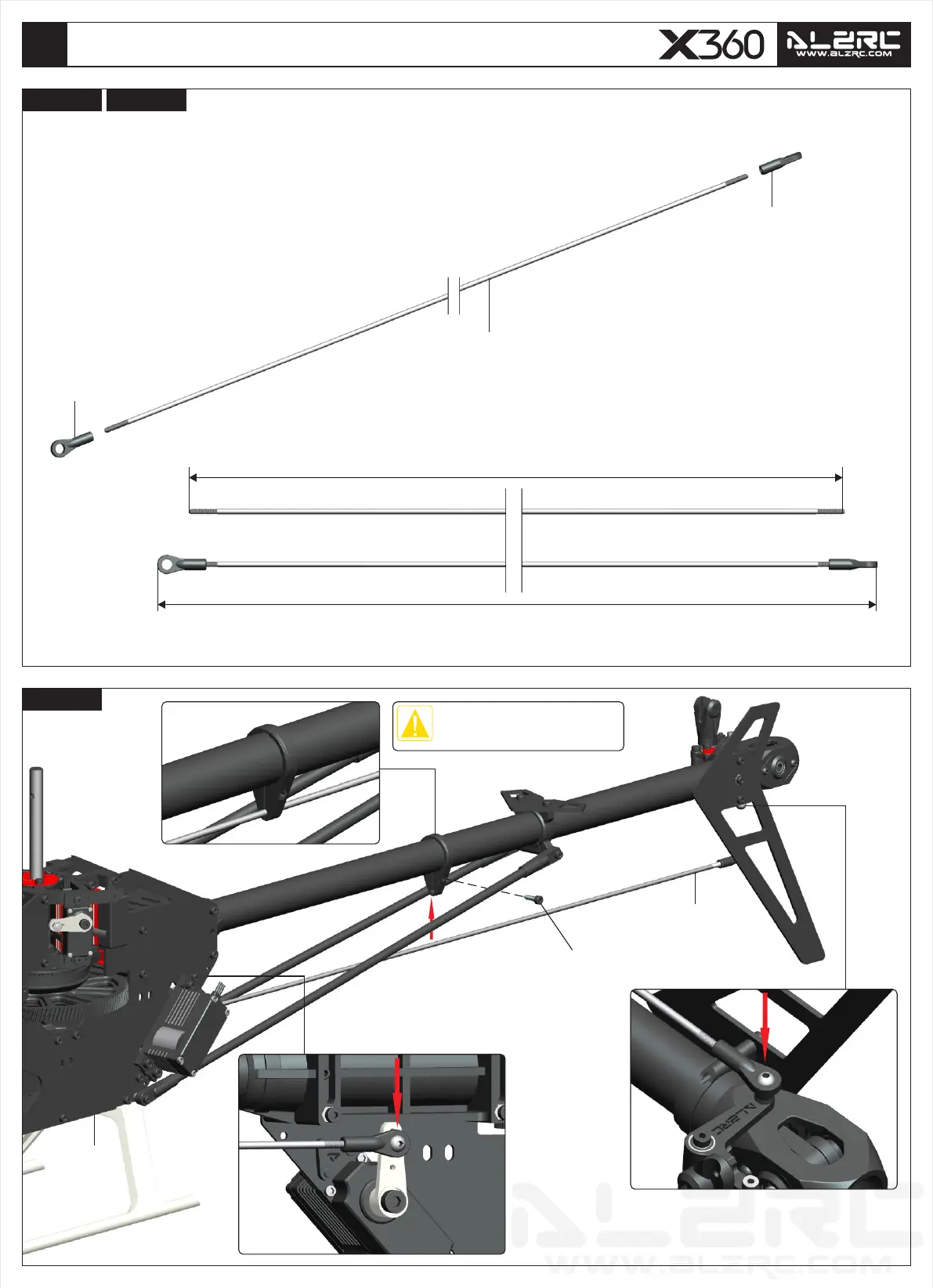

尾舵机控制连杆组安装
Installation of Tail Control Rod Assembly
Chapter 42
DX360-I
将尾舵机控制连杆套进尾旋翼控制组摇臂。
Put the tail control rod link into the bell crank
lever.
拉杆头
Ball Link
拉杆头
Ball Link
尾舵机控制连杆
Tail Control Rod
380mm
约406mm
Approx 406mm
第40步组装完成
Assembled in Chapter 40
第41步组装完成
Assembled in Chapter 41
圆头内六角自攻螺丝
Socket Head Tapping Screw
M2x8mm
将尾舵机控制连杆套进锁尾舵机。
Put the tail control rod link into the
locked rudder servo.
螺丝锁入塑胶零件请勿过度拧紧。
Do not over-tighten the screws
into the plastic parts.
