组装说明 ASSEMBLY SECTION
15

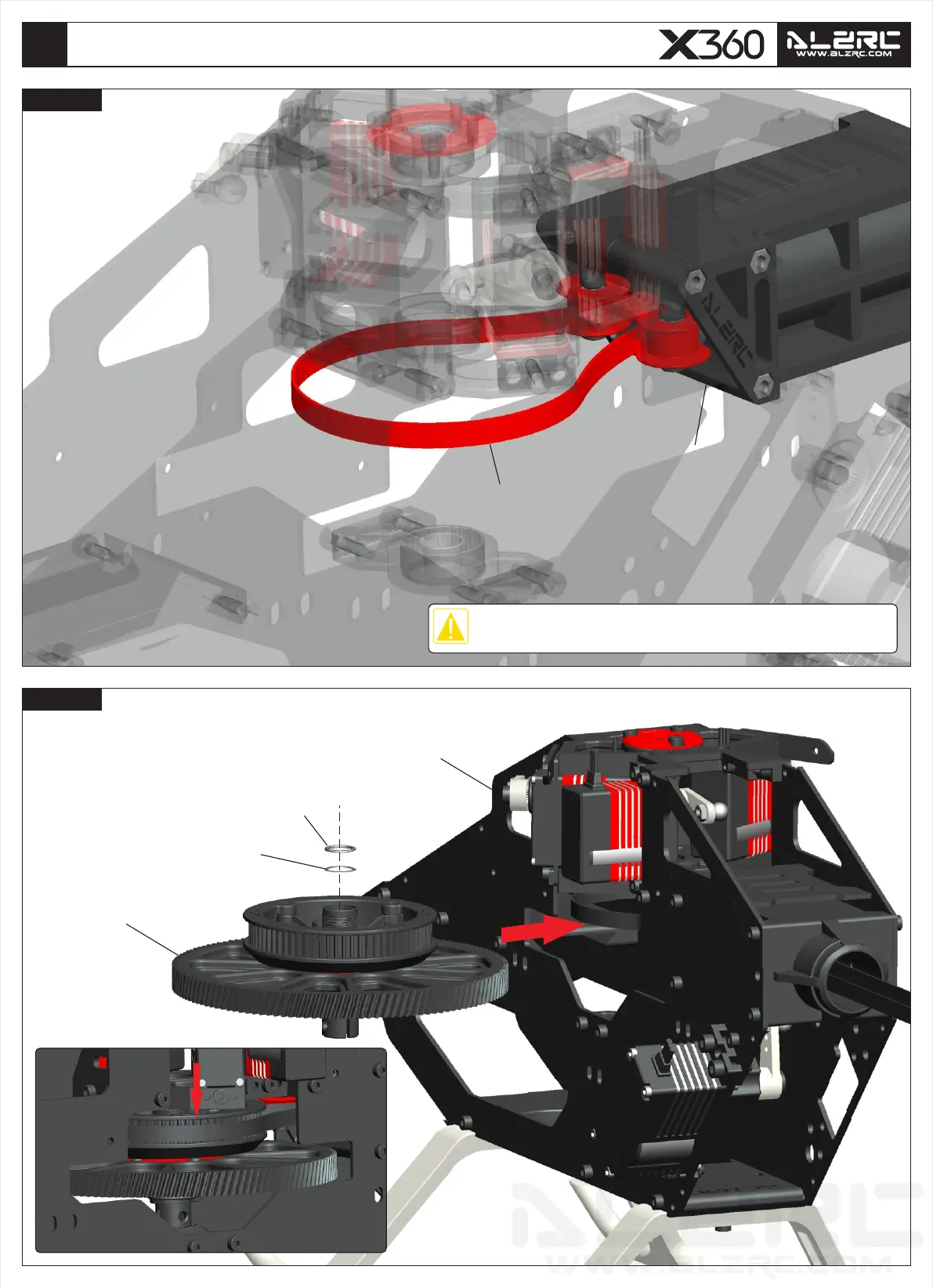

齿轮总成安装
Installation of Gear Assembly
Chapter 23
DX360-F
尾齿传动皮带
Performance Tail Drive Gear Belt
Chapter 22
特别注意：在安装齿轮总成至机架组前，先将尾齿传动皮带预先放置机架内。
Attention: put the tail belt in the fuselage in advance when install the gear
assembly.
尾齿传动皮带
Performance Tail Drive Gear Belt
第16步组装完成
Assembled in Chapter 16
垫片
Washer
Φ6xΦ7.6x0.5mm
垫片
Washer
Φ6xΦ7.6x0.1mm
第21步组装完成
Assembled in Chapter 21
第22步组装完成
Assembled in Chapter 22
安装后示意图
Finished Installation Sketch
DX360-G
