AOES3030 Wall Oven Installed Below
AKGD3060 Gas Downdraft Cooktop In An
Island Installation

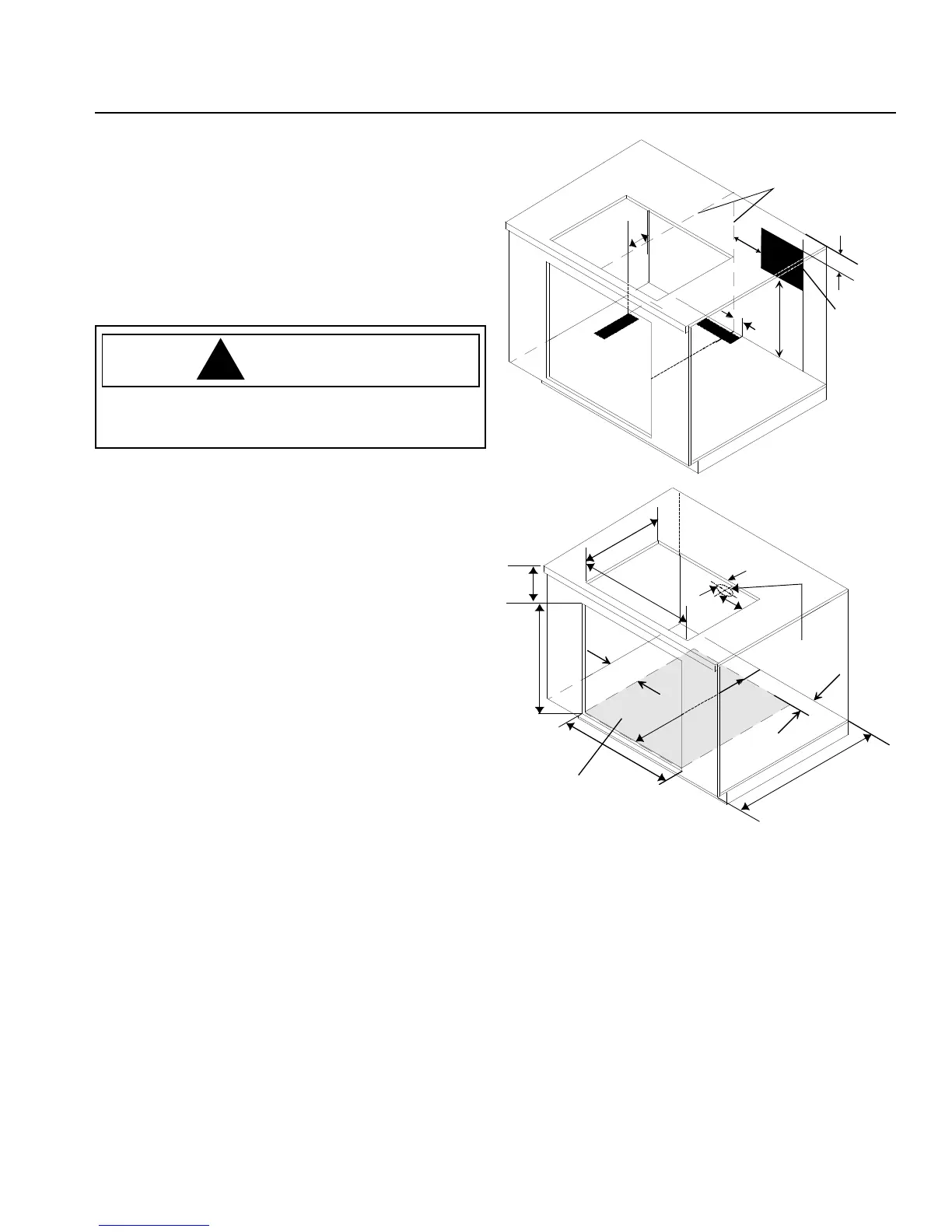

Illustration shows dimensions for venting behind, and to
the left side of the wall oven. Left side venting for wider
island applications only. Junction box and 10
1
/8"x3
3
/8" vent
location for 10"x3
1
/4" vent indicated in black. Cutout
bottom indicated in grey.
!
WARNING
To avoid property damage or personal injury,
information in these installation specifications must be
followed exactly.
A— 6" right of junction box location
B— 4
1
/2" from top of countertop
C— 24" from floor of cutout
D— 2
5
/8" right of centerline from right edge of vent
E— 6" from back of cooktop cutout to back of vent cutout
F— 3
1
/2" minimum from back wall of island cabinet to
back wall of wall oven
G—28" minimum island depth
H— 23
1
/2" bottom of wall oven in cutout
I— 28
1
/2" wall oven cutout width
J— 27
1
/4" wall oven cutout height
K— 3
1
/2" minimum from side wall of island to side wall of
wall oven
L— 27
7
/8" cooktop cutout width
M—20
5
/8" cooktop cutout depth
N— 4
1
/2" from top of countertop to top of wall oven cutout
O—
3
/4" from back of cooktop cutout to center of gas
entry into cooktop
P— 4
3
/4" from right of cooktop coutout to center of gas
entry into cooktop
B
A
C
Junction
box
location
E
Centerline of
island
top cutout
D
F
G
H
I
J
K
L
Shaded area
represents
bottom of
wall oven
M
N
O
P
Gas entry
into cooktop
