Amana AOES3030 Series User Manual

8
Wall Oven and Cooktop Combination Installation
Specifications
IMPORTANT— Save these instructions for local
electrical inspector's use.
Installer
Leave these instructions and other literature with
consumer for future reference.
Installations specified in these instructions are approved
for the AKT3000, AK2T30, AK2T36, AK2H30, AK2H36,
AKR3000 cooktops, and AKED3060, AKES3060
downdraft cooktops, above AOCS3040 and AOES3030
Amana wall ovens. Stacked and side-by-side wall oven
installation applies to Amana AOES3030 wall ovens only.
For additional individual unit requirements and clearances
refer to the installation instructions packaged with the wall
oven and cooktop.
All installations specified are for a 36" cabinet height,
23
1
/2" minimum depth. Junction box and 10
1
/8"x3
3
/8" vent
location for 10"x3
1
/4" vent indicated in black.
!
WARNING
To avoid property damage or personal injury,
information in these installation specifications must be
followed exactly.
Listed by Underwriters Laberatories

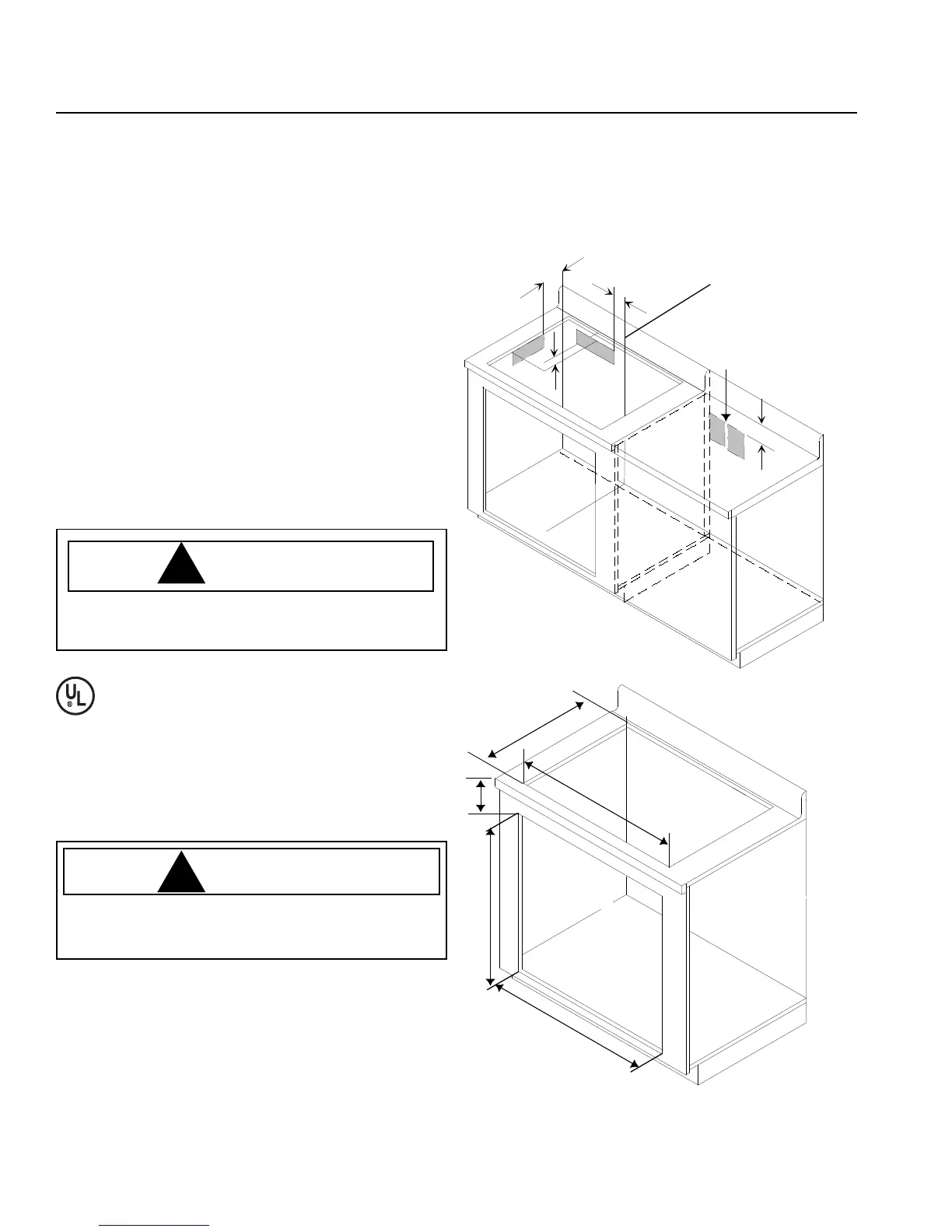

AKED3060 or AKES3060 Downdraft
Cooktops Above AOES3030 Wall Ovens
Junction box location and 10
1
/8 x 3
3
/8 inch vent location
indicated in black.
!
WARNING
To avoid property damage or personal injury,
information in these installation specifications must be
followed exactly.
A—6" from back of cutout to back edge of
vent cutout
B—4
7
/32" from centerline to vent cutout
C— 4
1
/2" from top of countertop
D—4
3
/8" from top of countertop to top of vent cutout
E—20
5
/8" cooktop cutout depth
F—28
7
/8" cooktop cutout width
G—28
1
/2" wall oven cutout width
H—27
1
/4" wall oven cutout height
I— 4
1
/2" from top of countertop to top of wall oven cutout
C
L
—Centerline of cutout
A
B
C
L
C
L
C
Oven and Cooktop
junction box
installed in
adjacent cabinet
D
Centerline of cabinet
cutout
E
H
F
G
I
