12
AKS3020 or AKS3040 cooktop above
AOES3030 Wall Oven
Gas Supply Location
Locate gas supply so manual shutoff valve is accessible
after installation. Electrical junction box and gas supply
should be installed in an adjacent cabinet.
!
WARNING
To avoid property damage or personal injury,
information in these installation specifications must be
followed exactly.

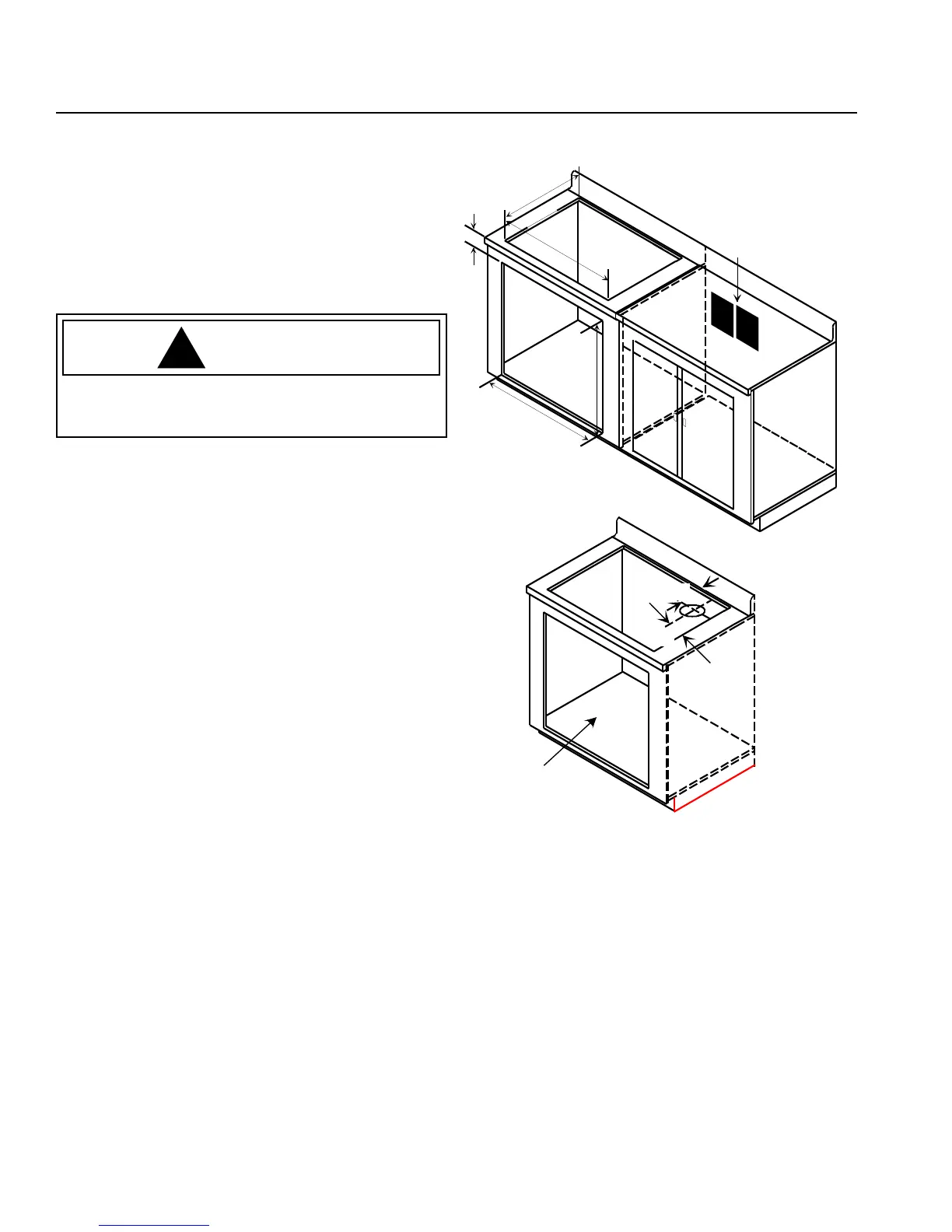

Installation specified is for a 36" cabinet height, 23
1
/2"
minimum depth.
A—19
3
/16" cooktop coutout depth
B—28
1
/2" cooktop cutout width
C—3
3
/16" from top of countertop to top of wall oven cutout
D—27
1
/4" wall oven cutout height
E—28
1
/2" wall oven cutout width
F—Oven and Cooktop junction box installed in adjacent
cabinet
G–1
3
/4" from back of cooktop cutout to center of gas
entry into cooktop
H—2
1
/8" from right side of cooktop cutout to center of gas
entry into cooktop.
F
G
Cabinet floor must
support 190 lbs.
A
B
C
D
E
Oven and Cooktop
junction box installed
in adjacent cabinet
F
G
H
