Amana AOES3030 Series User Manual

14

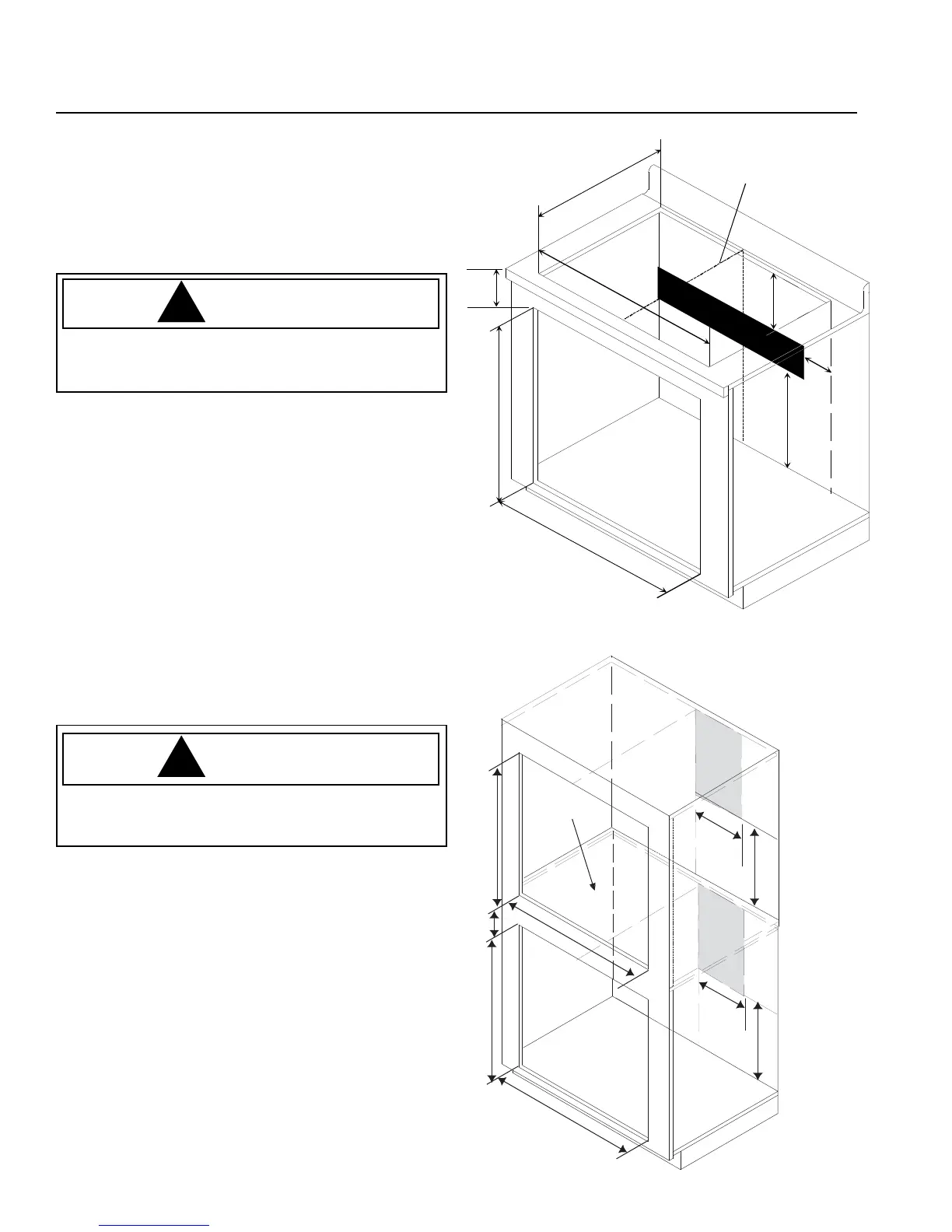

30" Electric Cooktop AK2H30, AK2T30,
AKR3000, AKT3000, CAK2H30, CAK2T30
Installed Above AOES3030 Wall Oven.
Cooktop and wall oven junction box location indicated in
black.
!
WARNING
To avoid property damage or personal injury,
information in these installation specifications must be
followed exactly.
A— 4
1
/2"minimum from top of countertop
B— 8" maximum from right of wall oven right side wall
cutout
C— 24" minimum from wall oven cutout floor
D— 28
1
/2" wall oven cutout width
E— 27
1
/4" wall oven cutout height
F— 28
7
/8" cooktop cutout width
G—20
3
/4" cooktop cutout depth
H— 3
3
/16" from top of countertop to top of wall oven
cutout
Centerline
of cabinet
top cutout
B
A
C
D
E
G
F
H
AOES3030 wall oven stacked installation
Wall oven junction box location indicated in grey.
!
WARNING
To avoid property damage or personal injury,
information in these installation specifications must be
followed exactly.
A—14
1
/4" from center of cutout
B— 24" minimum
C—28
1
/2" wall oven cutout width
D— 27
1
/4" wall oven cutout height
E—3" minimum space between wall ovens
B
A
D
E
B
A
C
D
C
F u l l
f l o o r
