4 Assembly and function
The following chapter informs you about the assembly of
AMASPRAY
+
and the functions of the individual components.
4.1 Function
The AMASPRAY
+
can be uses on the field boom sprayer as a fully
automatic controlling device. T
he unit allows an area related control of
the application rate in dependence of the actual forward speed and
working width.
The actual application rate, forward speed, worked area, sprayed
quantity as well as total spray rate, operating time and the travelled
distance are permanently determined.
4.2 Display

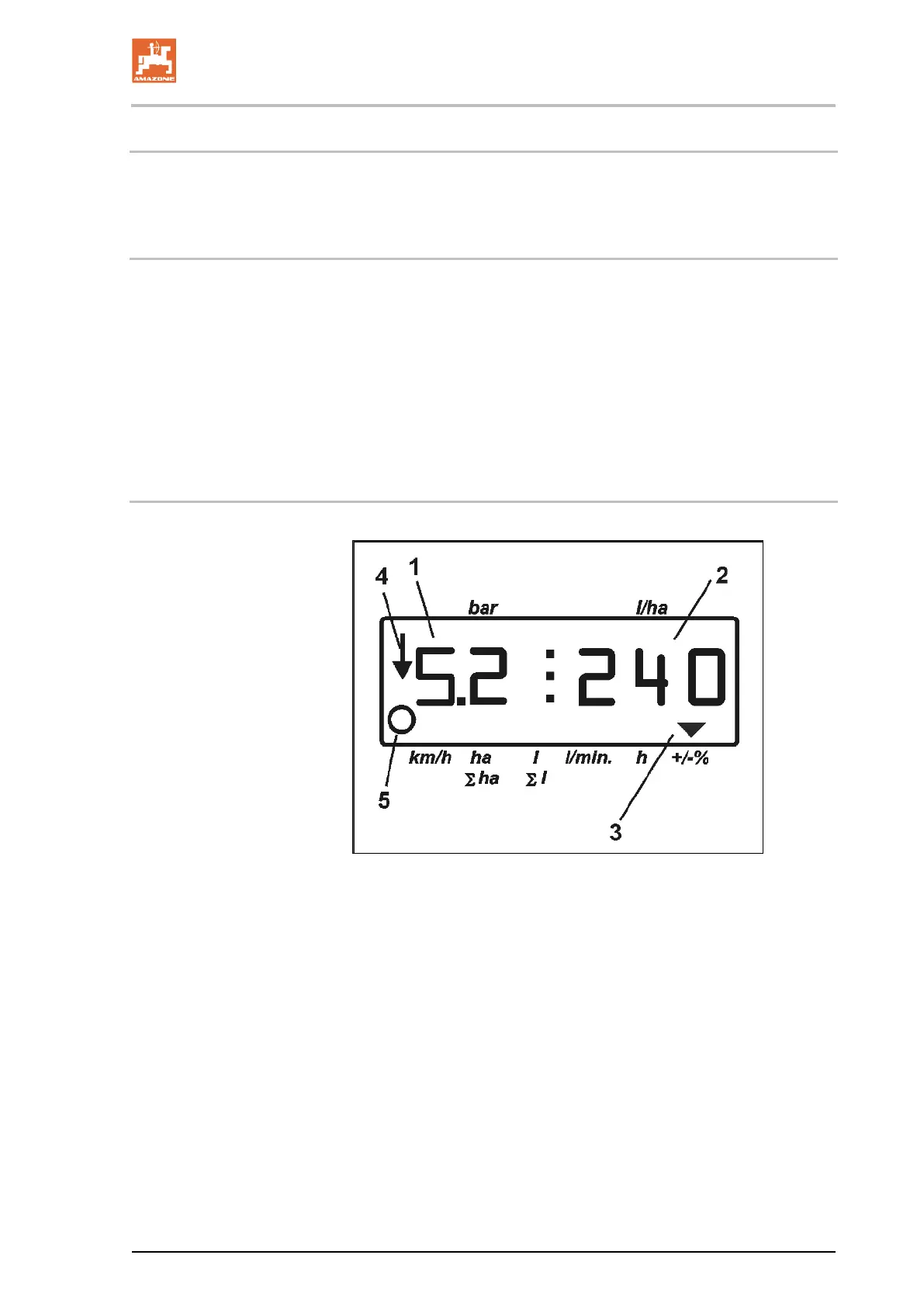

Fig. 2
AMASPRAY
+
features a numerical display. During the operational
procedure the current spray pressure (Fig. 2/1) [bar] and the applica-
tion rate (Fig. 2/2) [l/ha] can be read.
At the press of a key the display shows the working data and indi-
cates this with an arrow (Fig. 2/3).
Display Fig. 2/4: Machine in operational position (spraying switched
on).
Display Fig. 2/5: Machine travels along the distance (AMASPRAY
+
receives signals from the wheel sensor).
