Fitting instruction
38
AMASPRAY+ BAG0017.7 10.17
9 Fitting instruction
9.1 Console and computer

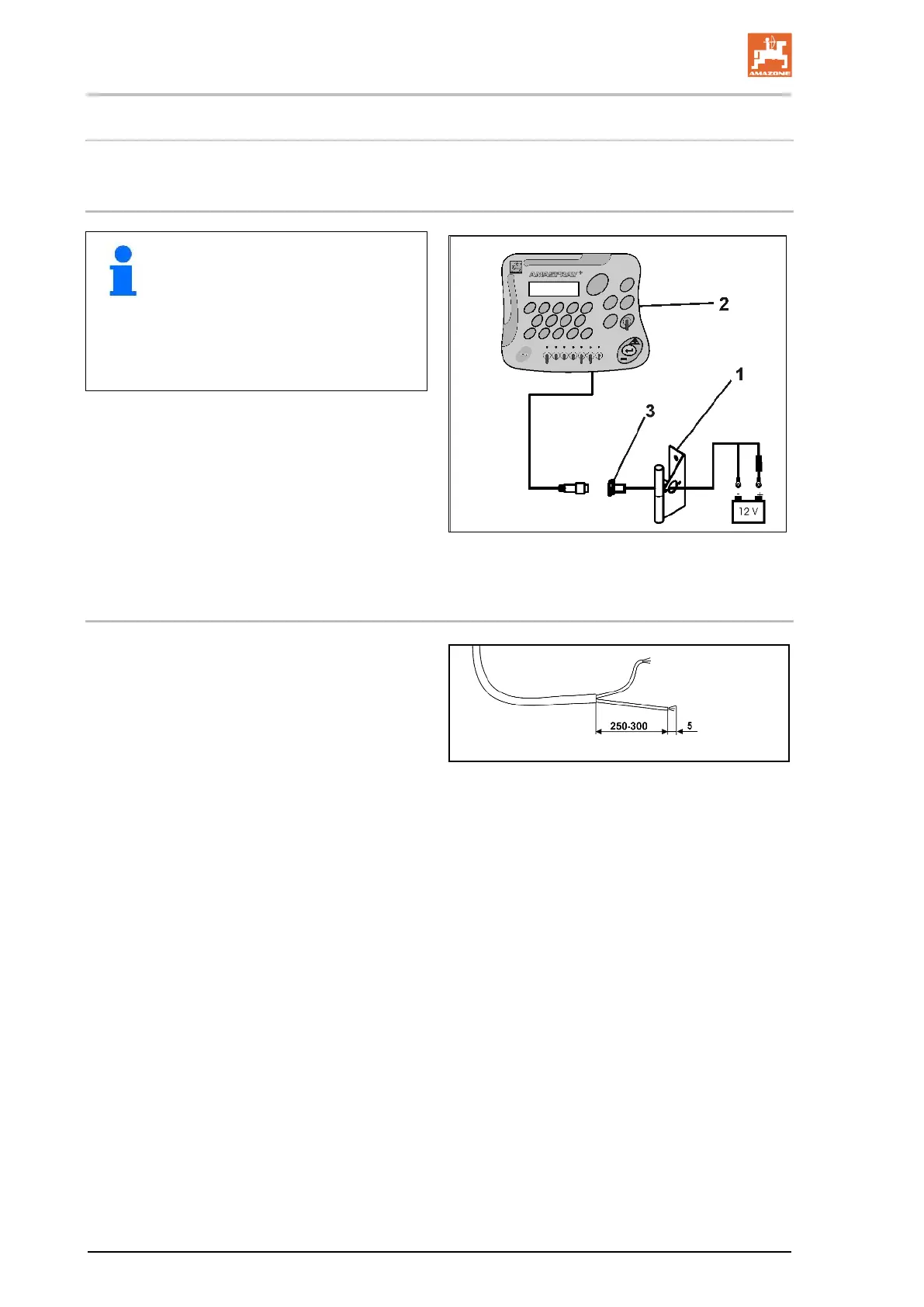

Fit the console (Fig. 15/1) within
reach and sight to the right hand
side of the operator. It must be in-
stalled in the tractor cab free from
vibrations and electrical conductivi-
ty. The distance from a radio trans-
mitter or an antenna should at least
be 1 m.
Fig.
15
Attach the bracket for the computer (Fig. 15/2)
on to the tube of the console.
Fix the bushing (Fig. 15
/3) of the battery cable on
the console.
Pivot the computer until the best angle of view is
achieved.
9.2 Battery connecting cable
The required power supply of 12 V should be
provided directly from the battery or from the 12V
starter motor.
1. Route the battery connecting cable from the
tractor cab to the tra
ctor battery and secure.
Ensure that the battery connecting cable
cannot be trapped.
2. Shorten the battery connecting cable as
necessary.
3. Strip the cable end by approx. 250 to
300mm.
4. Individually remove the insulation from the
cable ends by 5 mm.
Fig.
16
