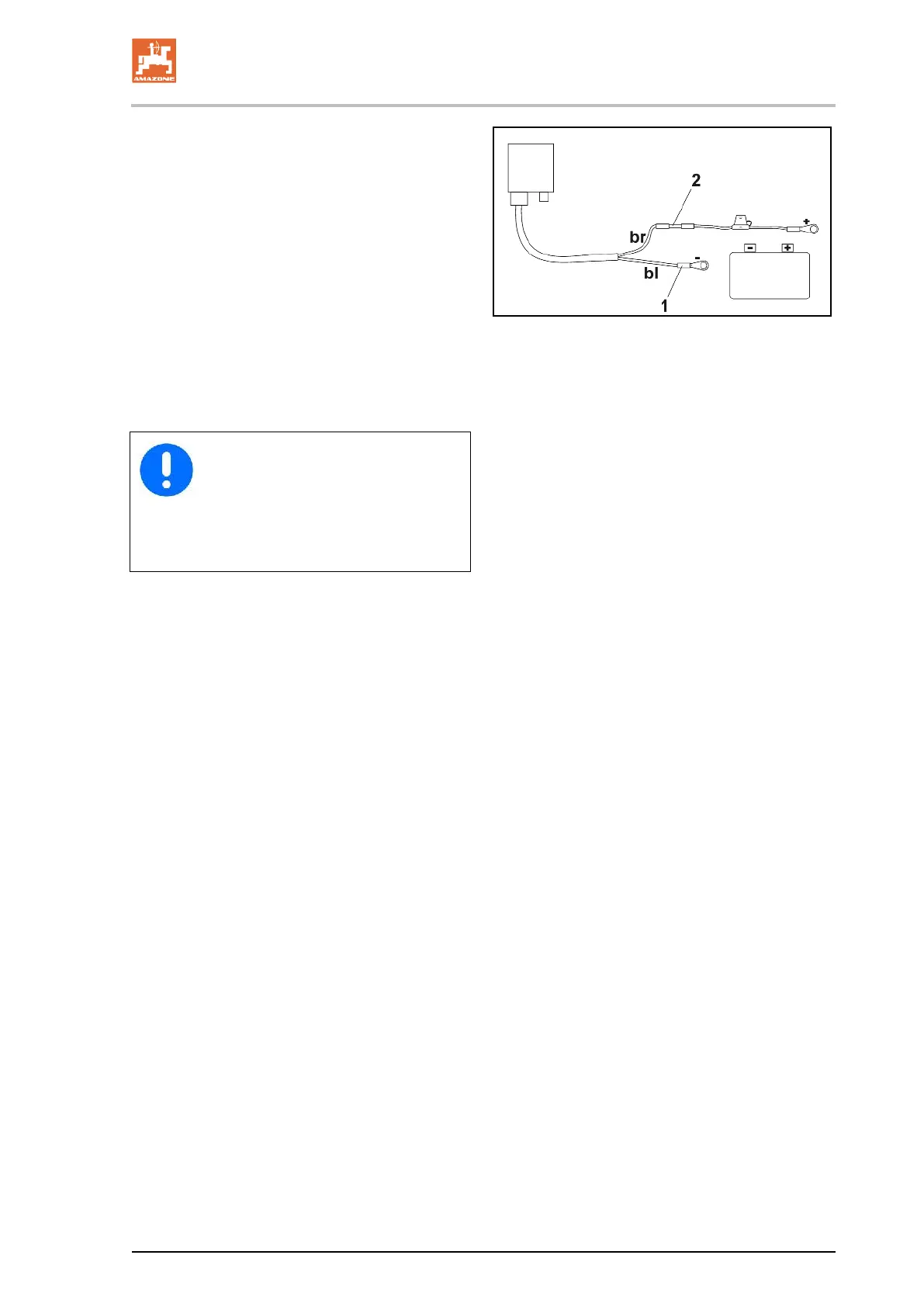

5. Insert the blue cable (earth cable) into the
loose ring tongue (Fig. 17/1).
6. Use crimping pliers to secure the joint.
7.
Insert the brown cable (+ 12 Volt) into a free
butt joint (Fig. 17/2).
8. Use crimping pliers to secure the joint.
9. Shrink the casing over the butt joint (Fig.
17/2) by using a heat source (lighter or hair
dryer) until the adhesive escapes.
10. Connect battery cable to tractor battery:
ο Brown cable with
+ of tractor battery.
ο Blue cable with
- of tractor battery.
17
Before connecting AMASPRAY
with a tractor that is equipped with
several batteries, please refer to
either the tractor's manual to ascer-
tain the battery to which the com-
puter should be connected, or ask
the tractor manufacturer!
