Structure and function
114
Cirrus 03 BAH0101-05 11.19
Implements with TwinTeC+ double disc coulters
5.19.3 Coulter pressure
The TwinTeC+ double-disc coulters are supported by the press rollers. Even on heavy soils, the coul-
ter pressure ensures uniform placement depth of the seed and allows the coulters to run smoothly.
Increase the coulter pressure to maintain the placement depth, e.g.
 before changing from light to heavy soil
 before increasing the working speed.
5.19.3.1 Coulter pressure - Manual actuation
The coulter pressure cylinders are connected to
a hydraulic circulation system.

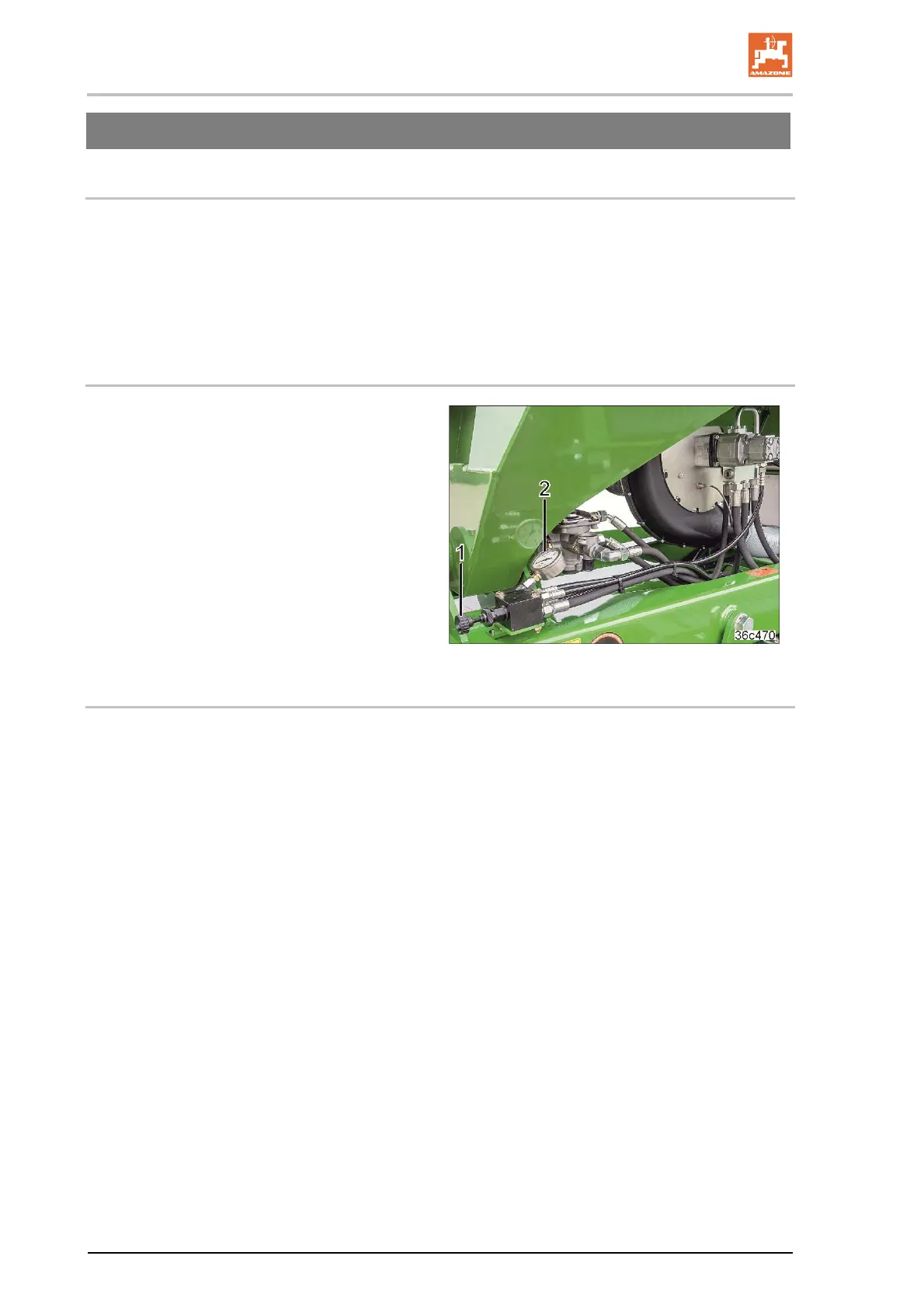

The pressure gauge (Fig. 141/2) indicates the
current coulter pressure. The coulter pressure is
infinitely variably adjusted using the pressure
control valve (Fig. 141/1) and can only be built
up and changed when the blower fan is running.
Fig. 141
5.19.3.2 Coulter pressure - Actuation on the control terminal
The coulter pressure and the increased seed rate are set on the control terminal before starting work.
There is a choice of several pressure levels. Each pressure level can be assigned to a specific
increased seed rate.
During operation, the coulter pressure can be adjusted in stages. The control terminal shows
 the selected pressure level of the coulter pressure
 the increase in the seed rate.
