Cleaning, maintenance and repairs
Cirrus 03 BAH0101-05 11.19
319
Specialist workshop work
12.7.6.3 Removing and installing the segment in the distributor head
The distributor head can have segments with
and without electronically driven flaps. The flap
on the tramline segment serves to close the seed
line hoses when creating tramlines.
This chapter describes the removal and
installation of a segment or tramline segment.
1. Observe the "Safety when working on the
distributor head" chapter, page 289.

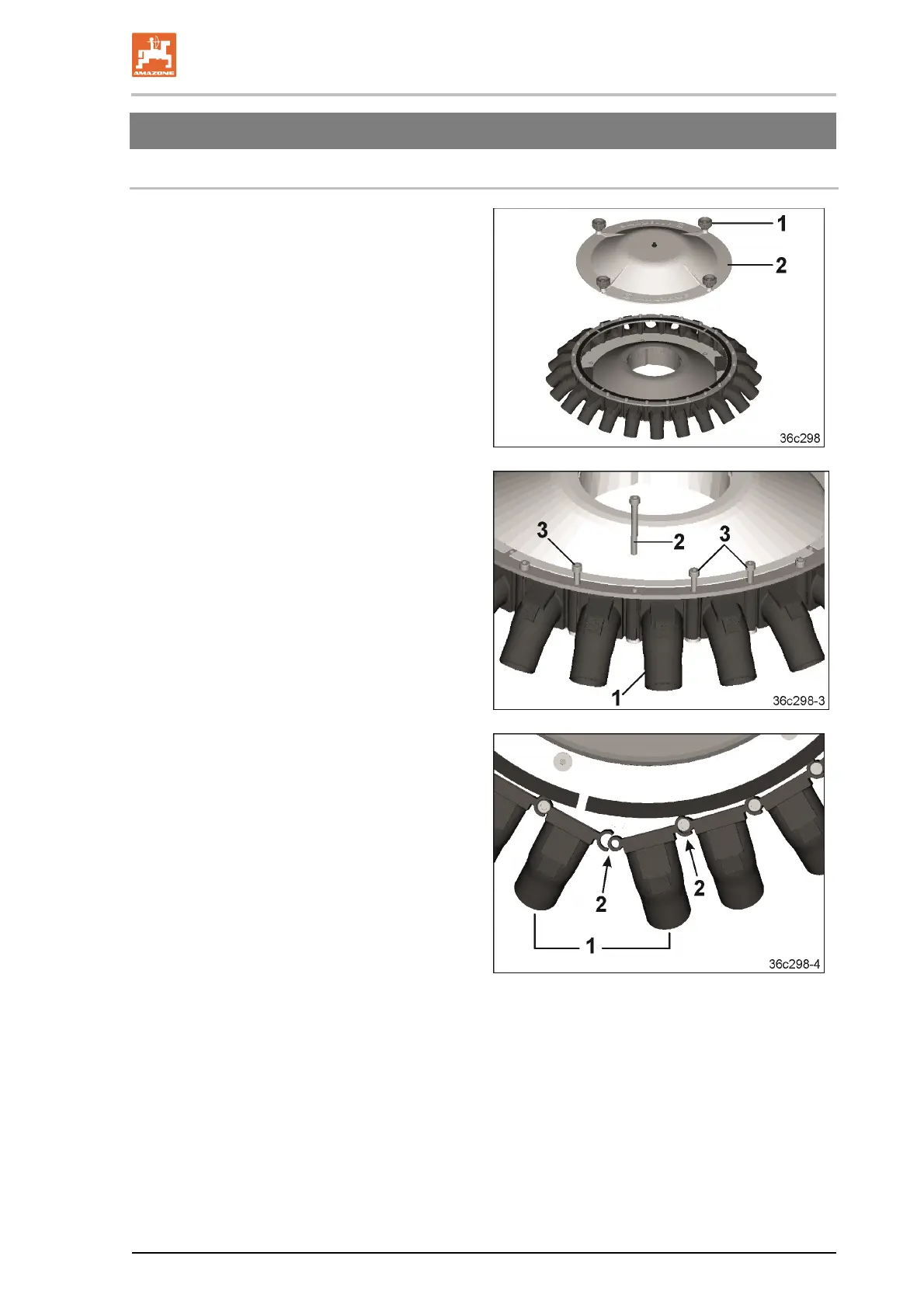

2. Loosen the four knurled screws (Fig. 470/1)
and remove the cover (Fig. 470/2) from the
distributor head.
Fig. 470
3. Remove one hexagon socket head screw
(Fig. 471/2) from the replacement segment
(Fig. 471/1).
4. Loosen the adjacent knurled screws (Fig.
471/3), do not remove.
Fig. 471
5. Slightly turn the loose segments (Fig.
472/1) until the clip is released (Fig. 472/2).
Fig. 472
