Amazone Cirrus 03 User Manual

Settings
Cirrus 03 BAH0101-05 11.19
201

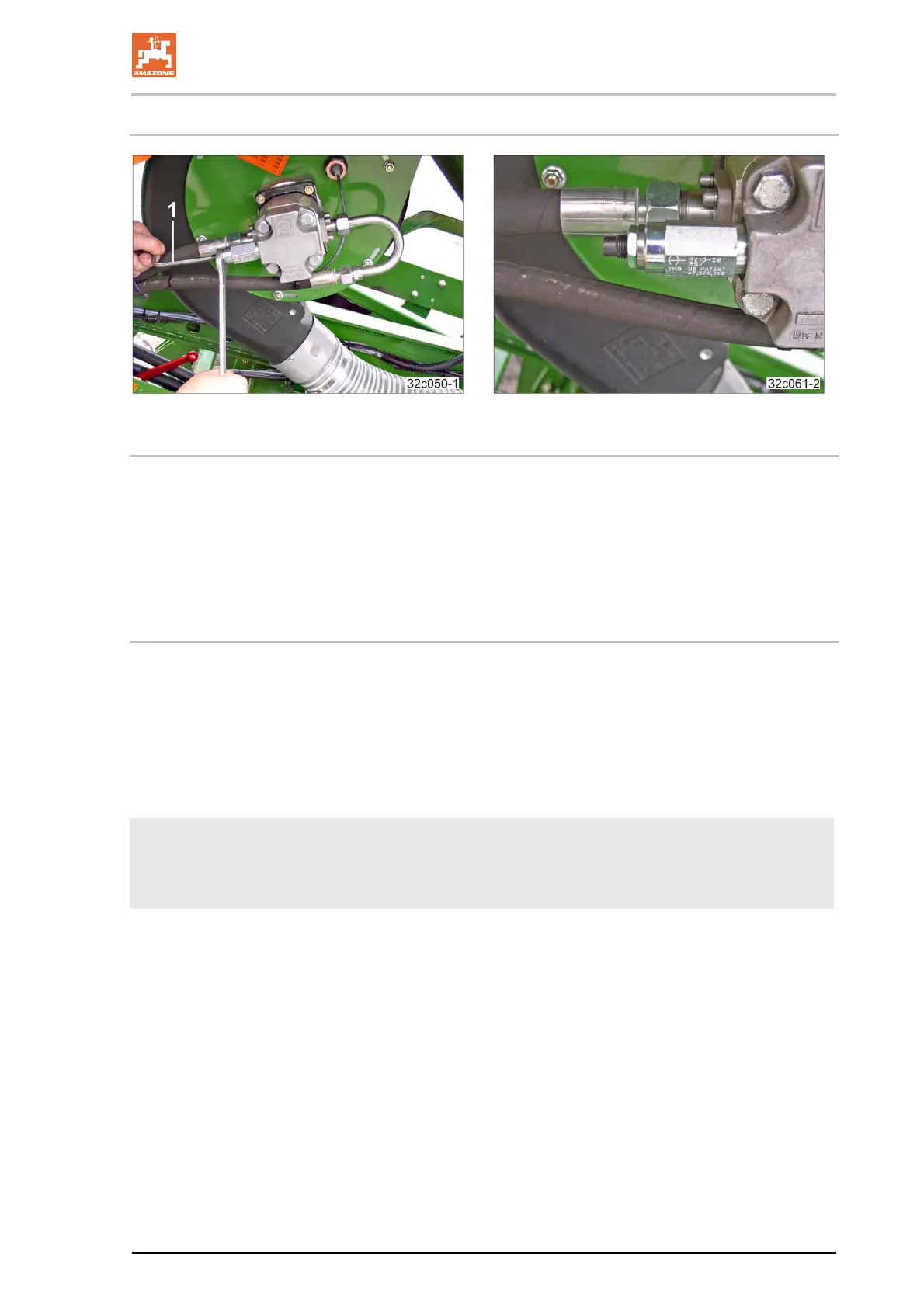

8.9.5 Pressure relief valve with hexagonal outer contour
Fig. 268 Fig. 269
8.9.5.1 Basic setting of the pressure relief valve
1. Loosen the lock nut (Fig. 268).
2. Completely screw in the bolt with the hexagon socket wrench (Fig. 268/1) (to the right).
3. Using the hexagon socket wrench, unscrew the bolt by 3 turns.
4. Tighten the lock nut.
8.9.5.2 Blower fan speed setting
Only perform this setting when the blower fan hydraulic motor
 is connected to the tractor hydraulic system and the tractor is equipped with a flow control valve
 is connected to the tractor PTO shaft.
1. Loosen the lock nut (Fig. 268).
2. Adjust the target fan speed on the pressure relief valve using the hexagon socket wrench (Fig.
268/1). Do not exceed the maximum blower fan speed of 4000 rpm.
Blower fan speed
Turning to the right: increases the nominal blower fan speed
Turning to the left: reduces the nominal blower fan speed
3. Tighten the lock nut.
