Ambient Weather WS-12 User Manual

Version 1.1 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 16

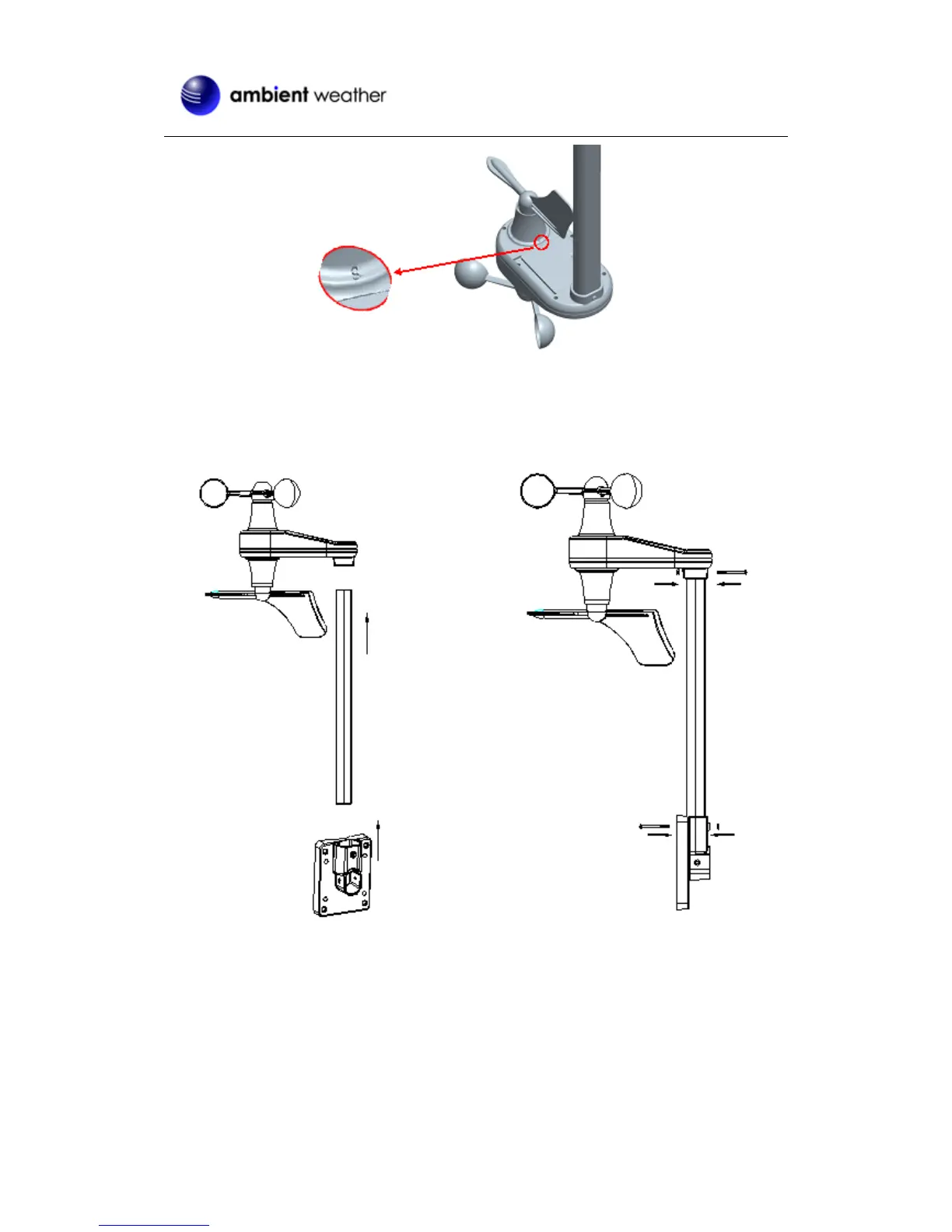

Figure 13
Fasten the wind transmitter to mounting pole brackets with foot-mounting, two ∅3 bolts and M3
nuts, as shown in Figure 14.
Figure 14
Tighten the included mounting pole to your mounting pole (purchased separately) with the four ∅5
Bolts and M5 Nuts assembly, or fix on the wall with four tapping screws, as shown in Figure 15.
