MEGAPOWER 168 / AD2088 OPERATION AND PROGRAMMING REFERENCE GUIDE (8200-0170-01, REV. A)
5 of 30
J. ACK key /Down Arrow /Eject key:
Acknowledges alarms, runs tours, sets and
repeats patterns in Operate mode. Moves
cursor down one row in Menu mode. Ejects tape
in VCR Operate mode.
K. VCR/Up Arrow key: Enables selection of VCR
Operate mode. Moves cursor up one row in
Menu mode.
L. CAM (Camera) key: Calls the camera number
entered using the numeric keypad.
M. Numeric Keypad: Keys ranging from 0 to 9 that
enable the user to select specific cameras,
monitors, salvos, tours, presets, patterns,
auxiliaries, recorders, sites, and macros.
N. MON (Monitor) key: Calls the monitor number
entered using the numeric keypad.
O. CLEAR key: Removes numbers entered on the
numeric keypad.
P. MACRO keys: Eight macro keys are provided to
call specified macros whose number is entered
on the numeric keypad.
Q. NEXT key: Calls the next camera displayed in a
sequence (tour).
R. LAST key: Calls the prior camera displayed in a
sequence (tour).
S. SALVO key: Calls a specified salvo whose
number is entered on the numeric keypad.
T. HOLD key: Holds the current camera in a
sequence (tour).
U. RUN key: Runs system and scratch pad tours.
V. Keyswitch: Enables the user to switch to the
Operate, Program, or Menu modes of operation.
When the keyswitch is set to Menu position, the
page and cursor navigation functions of the
multi-function keys are activated.
W. PROG key: Enables the user to set scratch-pad
tours and patterns, as well as a number of other
switching system functions.
Y, Z. F1 & F2 keys: Special functions keys used to
implement basic system commands and
SpeedDome/DeltaDome control.
General User Tasks
The following tasks can be performed regardless of
the keyswitch setting.
• Log On
• Log Off
• Select Monitor or VCR mode
Logging On
If UC appears in the Camera display of your
keyboard, User Codes and Passcodes have been
implemented at your facility. You must log on before
attempting to use the system.

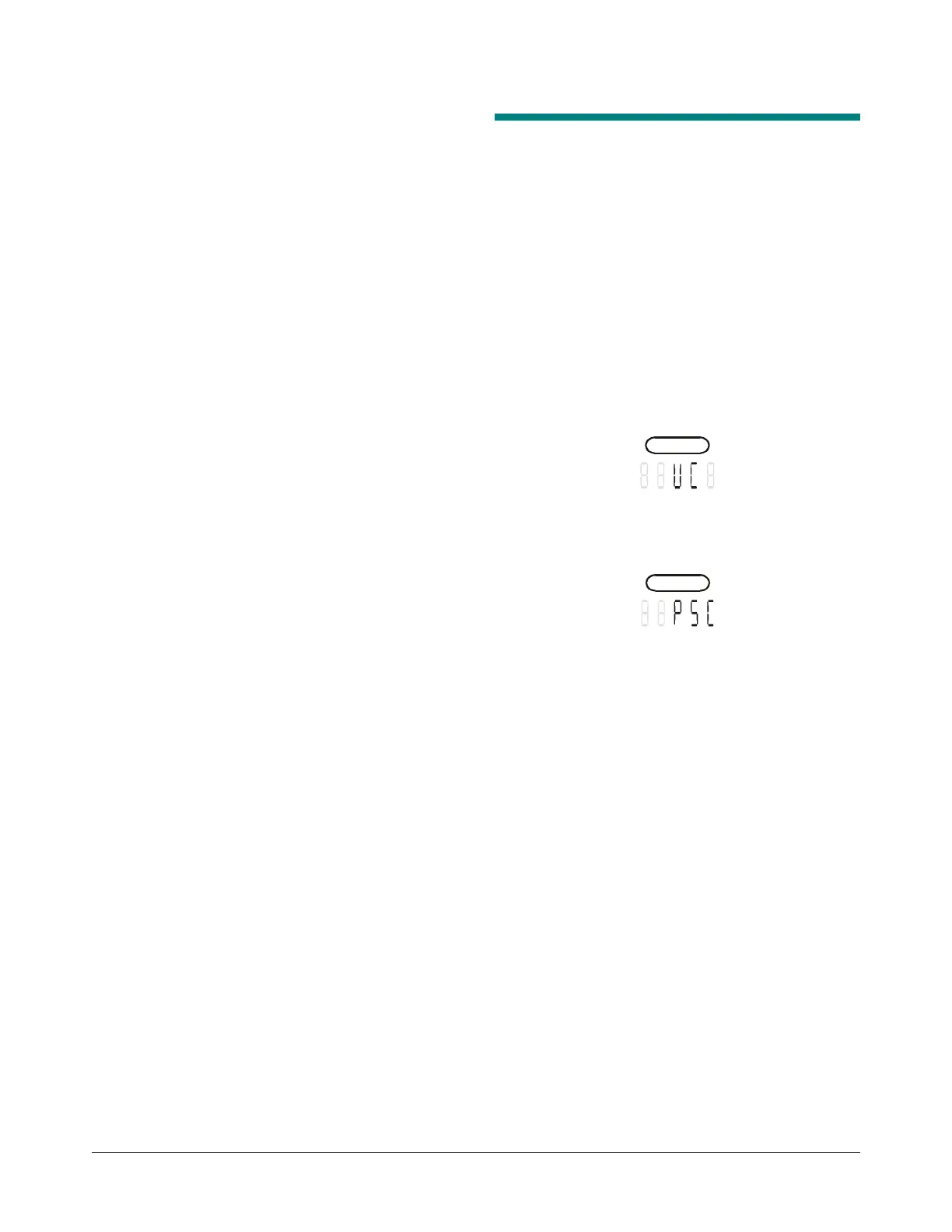

1. UC (User Code) appears in the Camera display.
CAMERA
2. Use the numeric keypad to enter the User Code
(1-64). Press Ack.
3. PSC (Passcode) appears in the Camera display.
CAMERA
4. Use the numeric keypad to enter the passcode
(up to 6 digits). Press Ack.
Once logged on, you can begin performing other
tasks.
