6-20 | Model 931S / Model 932S UV Analyzers
10. Open the Configurator file “M931S.dyc” or “M932S.dyc” (click on
the Standard Toolbar to display two Trend graphs, Figure 6-8):
• One for PMT Msr (Measure) Signal.
• One for PMT Ref (Reference) Signal.
The inputs are typically assigned to the channels at the factory. If they
are set up as described in Step a through Step h, continue with Step
11; if they are not set up, or they need to be modified, follow these
steps.
To assign inputs to the channels on the Msr PMT Signals Properties
and Ref PMT Signals Properties windows:
a. Right-click on the Msr PMT Signals Trend graph window and
click Scan from the context menu to view the Msr PMT Signals
Trend Properties dialog box (Figure 6-9).
b. To assign an input to a channel click the first (top) button under
Channels to select it.
NOTE

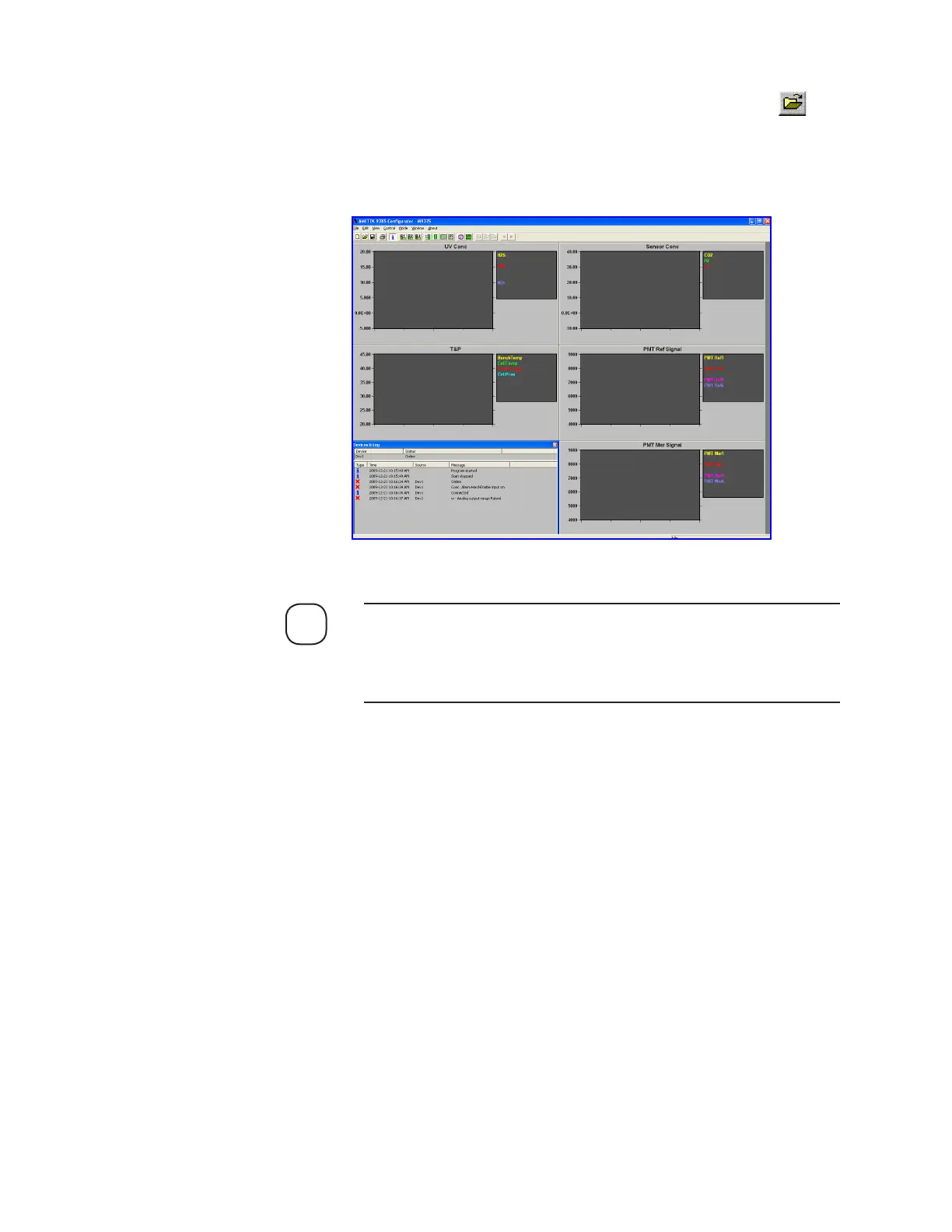

Figure 6-8.
Congurator screen
after opening the
M93XS.dyc le.
