4-70 | Model 931S / Model 932S UV Analyzers
Analyzer Data Tab
The Analyzer Data tab displays live data results of up to six species of
gases plus other components (depends on analyzer model), and live
data results of each temperature zone, analog inputs/outputs, and digital
inputs/outputs.
Results
Displays each gas species being measured (one for Model 931S
Analyzers; up to six for Model 932S Analyzers) and their live values
(updated at one-second intervals).
This information is also displayed in the Display field on the Optical
Bench, Gas Calibration, and Info dialog boxes, and Status tab.
Temperature Zones
Displays the real-time Temperature (°C) and Duty Cycle (%) of each
temperature zone:
• Bench (Optical Bench)
• Cell (Measuring Cell)
• Probe (Heat ed Acid Gas Probe) – optional

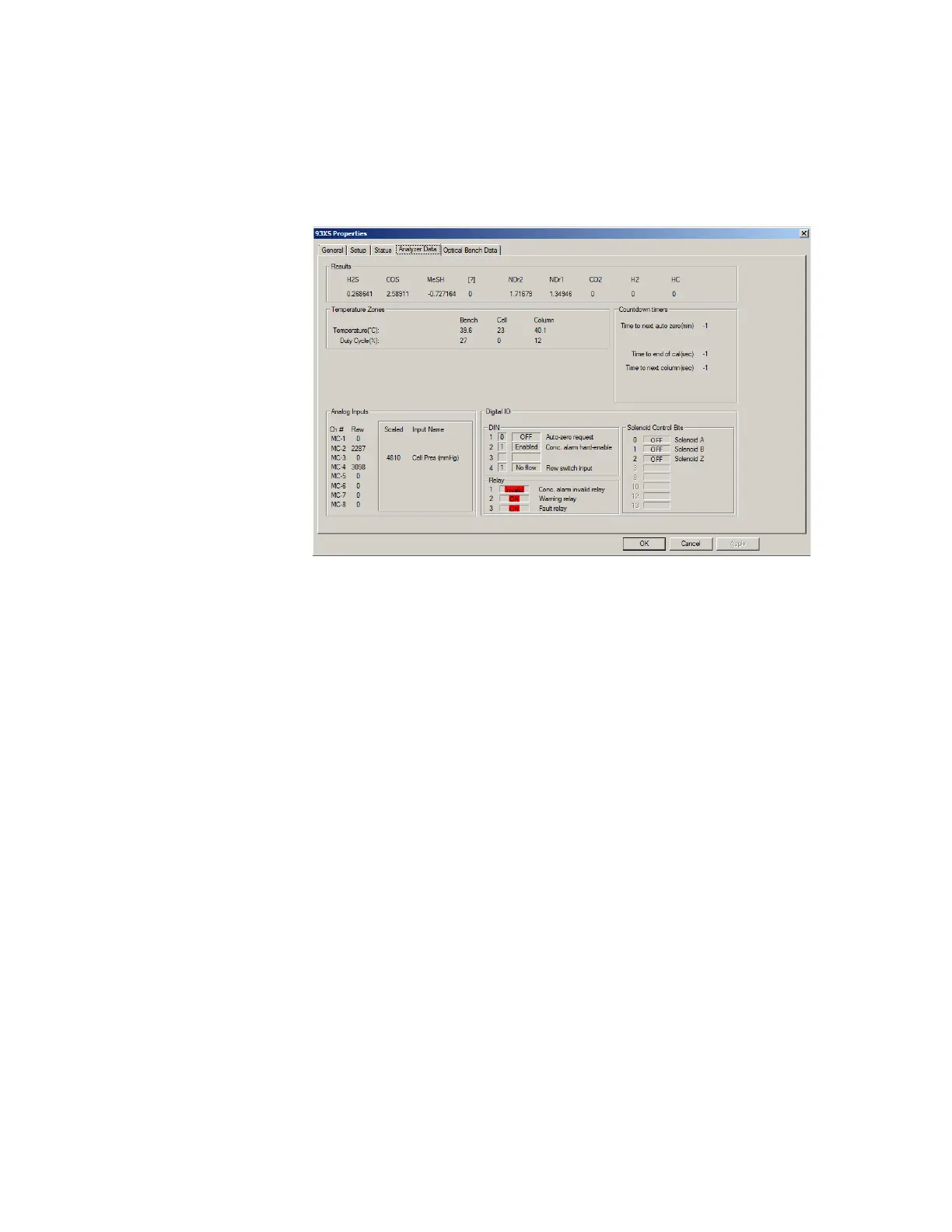

Figure 4-23.
Analyzer Data tab
(Model 932S).
