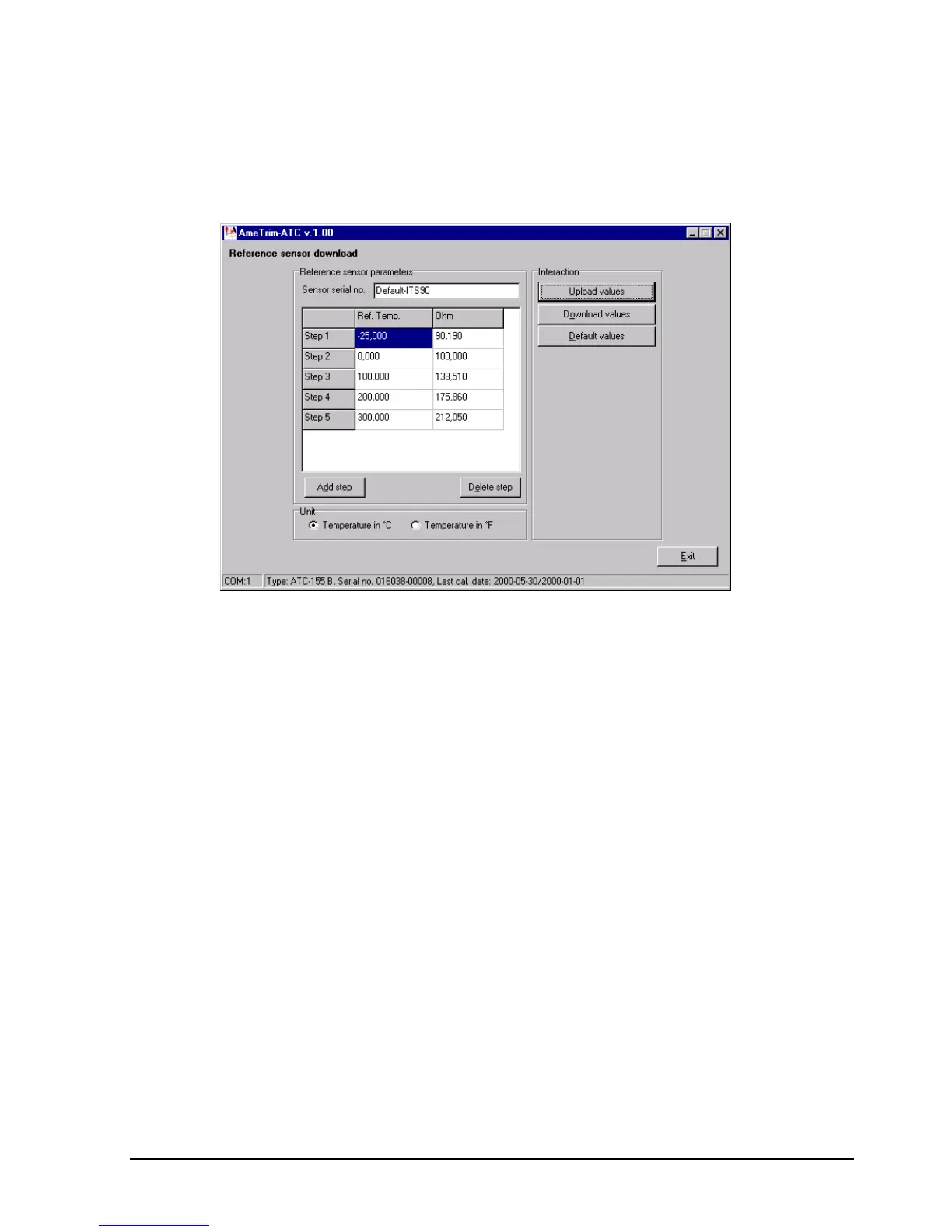

In AmeTrim-ATC main menu, click Reference sensor.
A new dialogue with a table containing the calibration of
corresponding temperatures and resistances of the
reference sensor. If none are present in the calibrator, then
the default values are displayed.
Click a radio button to select the desired temperature units.
To view current values in the Calibrator
Click Upload values. The current reference sensor values
stored in the calibrator are displayed.
Click Done when you are finished viewing the values. This
returns you to the AmeTrim-ATC Main Menu.
To enter values for a new reference sensor
Type in a unique and descriptive name for the reference
sensor.
Use the mouse to position the pointer in the boxes in the
table.
Type in the temperature and resistance values from the
Calibration Certificate supplied with the reference sensor.
