8 OWS, OIS And ECP Operation
The EV3000 ECP has three sections, the;
1. Emergency control panel,
2. OWS control panel; and
3. OIS control panel.
8.1 Emergency Control Panel

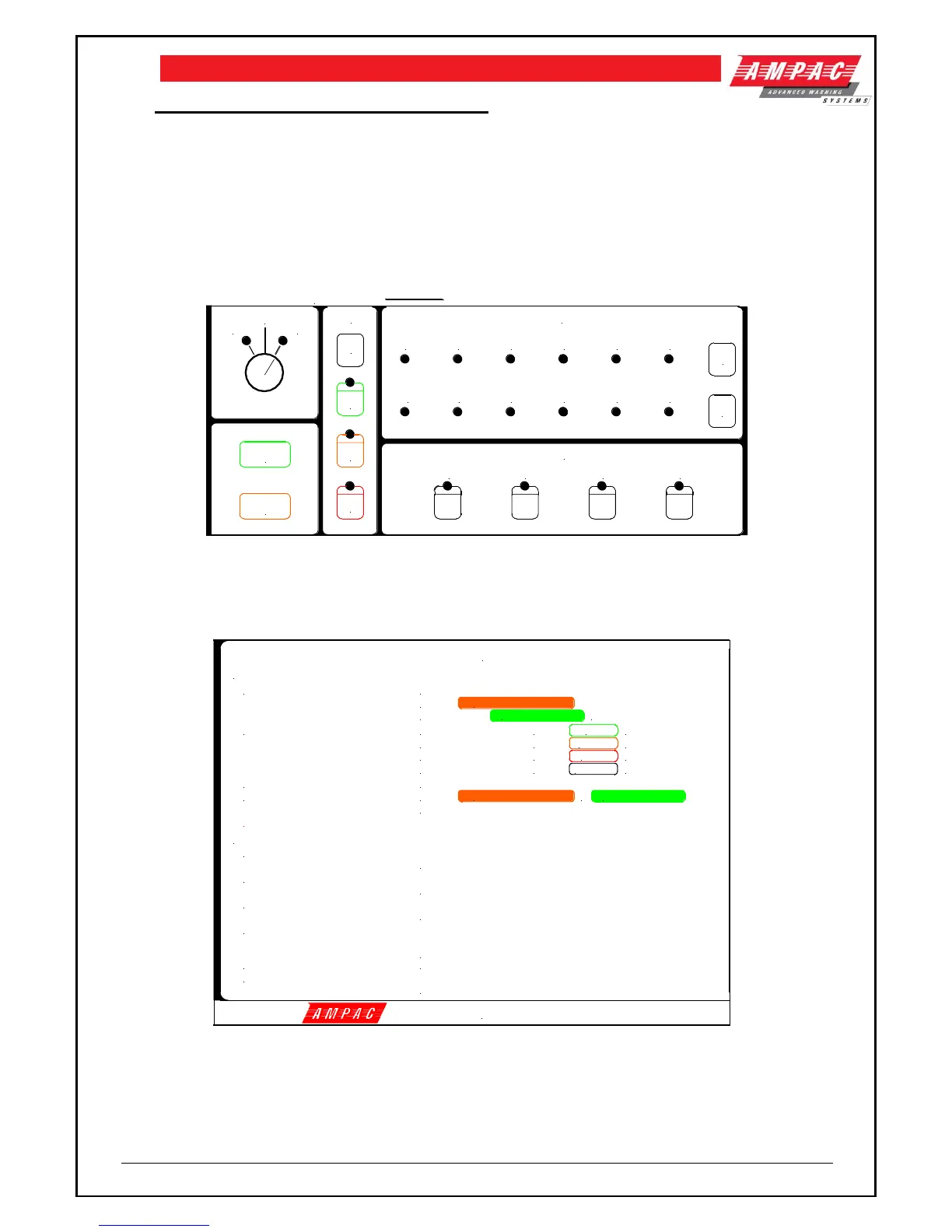

The Emergency Control Panel contains the common system controls and indicators and the
common OWS controls and indicators and the operating instructions. The layout of the controls on
the Master Control Panel is shown below.
E V 3 0 0 0
EMERGENCY OPERATING INSTRUCTIONS
EMERGENCY WARNING SYSTEM (E.W.S.)
1. TO SILENCE AUTOMATIC TONES PLACE KEYSWITCH IN MANUAL POSITION.
2. INDIVIDUAL ZONE OPERATION PUBLIC ADDRESS
3. ALL ZONE OPERATION PRESS REQUIRED 'ALL CALL' SWITCH.
4. TO RESTORE E.W.S. TO NORMAL PRESS
EMERGENCY INTERCOMMUNICATION SYSTEM (E.I.S.)
1. TO CALL INDIVIDUAL WIP
2. TO ANSWER INCOMING CALL
3. TO TERMINATE CALL
4. TO 'ALL CALL' WIPS
5. TO TERMINATE ALL CALL
6. ZONE CLEARED PRESS ZONE CLEARED SWITCH FOR ZONE CLEARED INDICATOR
ON OR OFF. (MASTER WIP HANDSET MUST BE LIFTED).
(FIVE WIPS MAX) LIFT HANDSET, PRESS WIP SELECT SWITCH FOR
REQUIRED WIP, THEN WAIT FOR WARDEN TO ANSWER THE WIP.
(FIVE WIPS MAX) LIFT HANDSET, PRESS WIP SWITCH WITH
FLASHING INDICATOR, INDICATOR WILL GO STEADY.
PRESS WIP SELECT SWITCH WITH STEADY INDICATOR
OR REPLACE HANDSET ON CRADLE.
LIFT HANDSET, PRESS 'ALL CALL' ON MASTER PHONE, WIP
SELECT INDICATORS WILL FLASH, THEN BECOME STEADY AS WIPS
ARE ANSWERED -CONVERSATION IS FROM MASTER TO WIPS ONLY.
REPLACE HANDSET ON CRADLE.
PRESS
THEN PRESS
ALERT SIGNAL
EVACUATION SIGNAL
TO CLEAR SELECTION
THEN RETURN KEYSWITCH TO AUTO.
PRESS
PRESS
PRESS
PRESS
5. WHEN TESTING FIB, PLACE E.W.S. IN MANUAL.
P.A. SWITCH
SWITCH
SWITCH
SWITCH
ALERT
EVAC
CANCEL
BUZZER MUTE/ACK
MASTER RESET TO CANCEL TONES
BUZZER MUTE/ACK MASTER RESET
,
