EV3000 INSTALLATION & COMMISSIONING
10.6 WIP/EAID Extension Connections
The 302-6270 is the field connection board for the WIP extensions. Each board terminates sixteen
WIP and EAID extensions.
10.6.1 Connections
Field Connections
Use
Field Connections
Use
TB1 - 1 ( W )
WIP No 1
TB3 - 1 ( W )
WIP No 9
TB1 - 2 ( C )
WIP / EAID Common No 1
TB3 - 2 ( C )
WIP / EAID Common No 9
TB1 - 3 ( E )
EAID No 1
TB3 - 3 ( E )
EAID No 9
TB1 - 4 ( W )
WIP No 2
TB3 - 4 ( W )
WIP No 10
TB1 - 5 ( C )
WIP / EAID Common No 2
TB3 - 5 ( C )
WIP / EAID Common No 10
TB1 - 6 ( E )
EAID No 2
TB3 - 6 ( E )
EAID No 10
TB1 - 7 ( W )
WIP No 3
TB3 - 7 ( W )
WIP No 11
TB1 - 8 ( C )
WIP / EAID Common No 3
TB3 - 8 ( C )
WIP / EAID Common No 11
TB1 - 9 ( E )
EAID No 3
TB3 - 9 ( E )
EAID No 11
TB1 - 10 ( W )
WIP No 4
TB3 - 10 ( W )
WIP No 12
TB1 - 11 ( C )
WIP / EAID Common No 4
TB3 - 11 ( C )
WIP / EAID Common No 12
TB1 - 12 ( E )
EAID No 4
TB3 - 12 ( E )
EAID No 12
TB2 - 1 ( W )
WIP No 5
TB4 - 1 ( W )
WIP No 13
TB2 - 2 ( C )
WIP / EAID Common No 5
TB4 - 2 ( C )
WIP / EAID Common No 13
TB2 - 3 ( E )
EAID No 5
TB4 - 3 ( E )
EAID No 13
TB2 - 4 ( W )
WIP No 6
TB4 - 4 ( W )
WIP No 14
TB2 - 5 ( C )
WIP / EAID Common No 6
TB4 - 5 ( C )
WIP / EAID Common No 14
TB2 - 6 ( E )
EAID No 6
TB4 - 6 ( E )
EAID No 14
TB2 - 7 ( W )
WIP No 7
TB4 - 7 ( W )
WIP No 15
TB2 - 8 ( C )
WIP / EAID Common No 7
TB4 - 8 ( C )
WIP / EAID Common No 15
TB2 - 9 ( E )
EAID No 7
TB4 - 9 ( E )
EAID No 15
TB2 - 10 ( W )
WIP No 8
TB4 - 10 ( W )
WIP No 16
TB2 - 11 ( C )
WIP / EAID Common No 8
TB4 - 11 ( C )
WIP / EAID Common No 16
TB2 - 12 ( E )
EAID No 8
TB4 - 12 ( E )
EAID No 16
NOTE: WIP cabling is not polarity conscious.
Factory Connections
Use
CN1, CN2, CN3, CN4
Control Cable to OIS Selector boards
302 6270
LINE1
W C E
LINE2 LINE3 LINE4 LINE5 LINE6
LINE7 LINE8
LINE9
LINE10 LINE11
LINE12 LINE13
LINE14
LINE15
LINE16
W C E W C E W C E
W C E W C E W C E W C E
W C E W C E W C E W C E
W C E W C E W C E W C E
W = WIP
C = Common
E = EAID
G3
G4
G2
G1
TB2
TB3
TB4
TB1
CN1
CN2
CN3
CN4

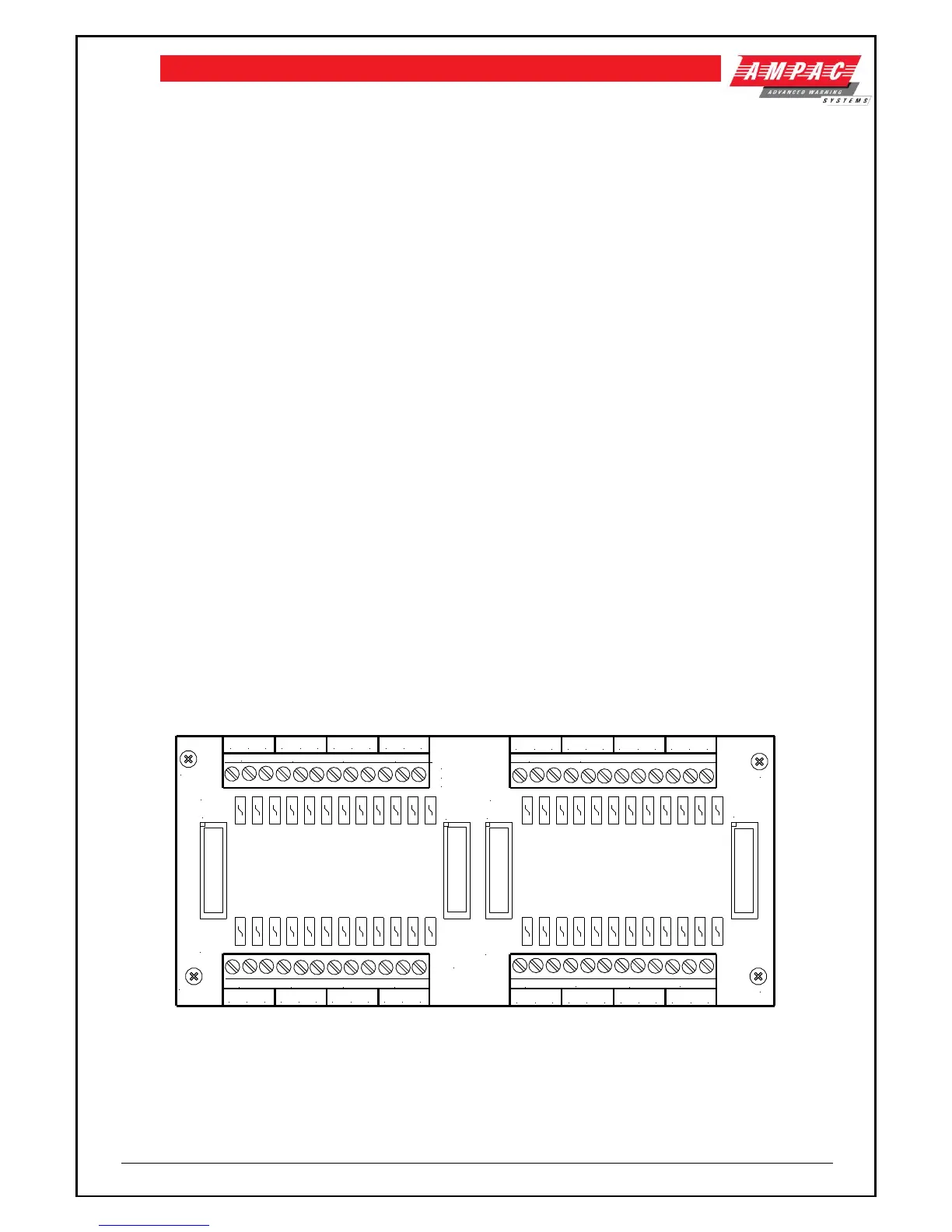

Figure 25: 302-6270 WIP Termination Board
