Ampler – Stellar / Stout 14Ampler Pedelec
4 Ampler Pedelec
The Pedelec consists of the bicycle, the charger and optional accessories. The Ampler Bike App can also be used with the Pedelec.

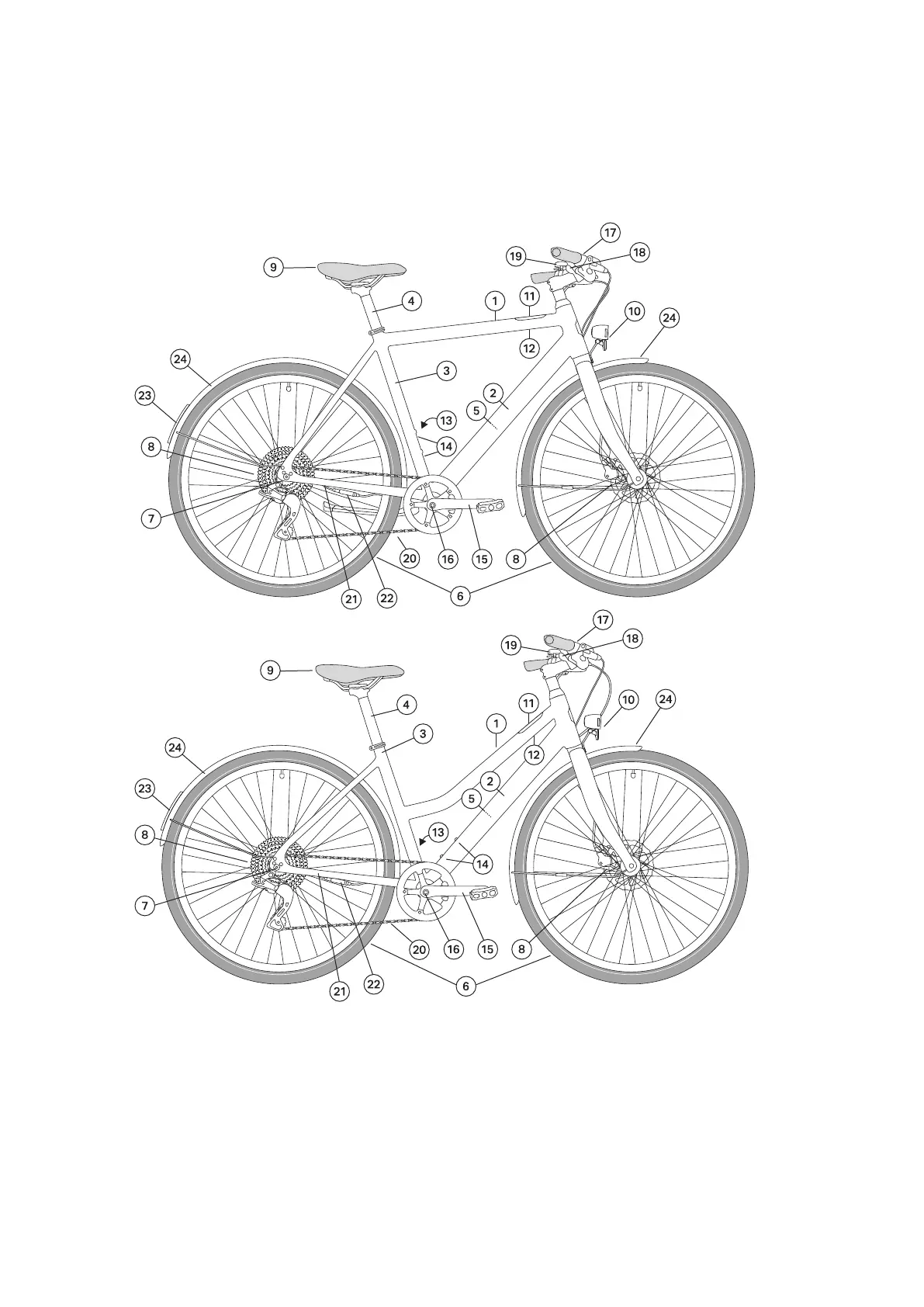

4.1 Bicycle - structure and components
Stellar / Stout
1 Top tube with
integrated display
2 Down tube with
integrated battery
3 Seat tube
4 Seatpost
5 Battery
6 Wheels
7 Hub / Electric motor
8 Disc brake
9 Saddle
10 Front light with reector
11 Display
12 Power button
13 Charging port
14 Eyelets for bottle
holder, lock
15 Pedals and crank
16 Bottom bracket
17 Handlebar
18 Brake levers
19 Bell
20 Chain
21 Chainstay
22 Motor cable
23 Rear light with reector
24 Fenders
