23 Assembly Ampler – Stellar / Stout
5.3 Reectors
Stellar and Stout each require one white reector on the front
light and are equipped with a rear facing red reector integrated
in the rear light. The tires are equipped with reective sidewalls.
5.4 Fitting the accessories
5.4.1 Trailer adapter (optional)

Observe and adhere to the maximum permissible load of
the trailer according to the manufacturer's instructions.

Observe and adhere to the permissible total weight of
the Pedelec with trailer.

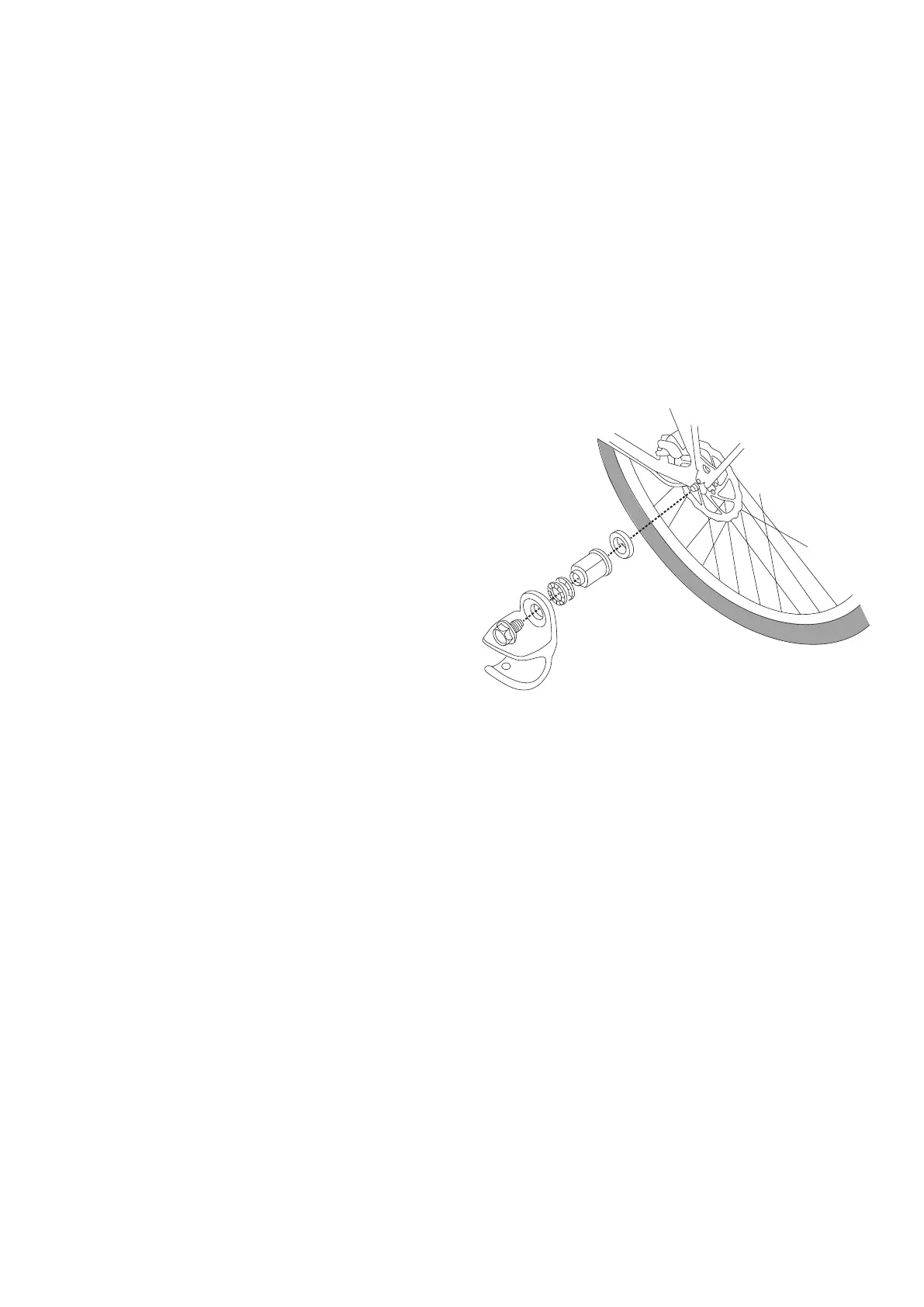

Mounting the trailer adapter
1. Remove the nut from the left side of the rear dropout.
y Do not remove the black washer from the dropout:
the washer must remain on the axle.
2. Attach the trailer adapter to the axle with a 15 mm spanner.
3. Make sure that the adapter is properly attached.
4. Remove the top screw on the trailer adapter
with a 13 mm spanner.
y Both washers remain as they are on the trailer adapter.
The nely notched structure points outwards,
the coarsely notched structures interlock.
5. Install the axle hitch supplied by the trailer manufacturer,
together with the set screw, on the trailer adapter.
y Hold the hitch securely in place while fastening the screw.
Connect trailer to axle hitch
1. Make sure the bike is positioned securely.
2. Connect the trailer to the axle hitch as described
in the trailer instructions.
