The fourth screen: Max value of power and
power factor.
As In fig 3.31, Max value of system total power
P_max=0.375W, Max value of system total
reactive power Q_max=0.649Kvar, Max value of
system apparent power S_max=0.749KVA and
Max value of system average power factor
PF_max=1.000.
Press P key to change display from Max to
Min and vice versa.
Press V/A key, go to the next screen.
The fifth screen: Max value of demand and
frequency
As in fig 3.32, Max value of system total power
demand Dmd_P_max=0.375KW, Max value of
s y s t e m t o t a l r e a c t i v e p o w e r d e m a n d
Dmd_P_max=0.649Kvar, Max value of system
total apparent power demand Dmd_P_max=0.
749KVA and Max value of system frequency.
Press P key to change display from Max to
Min and vice versa.
Press V/A key, go to the next screen.

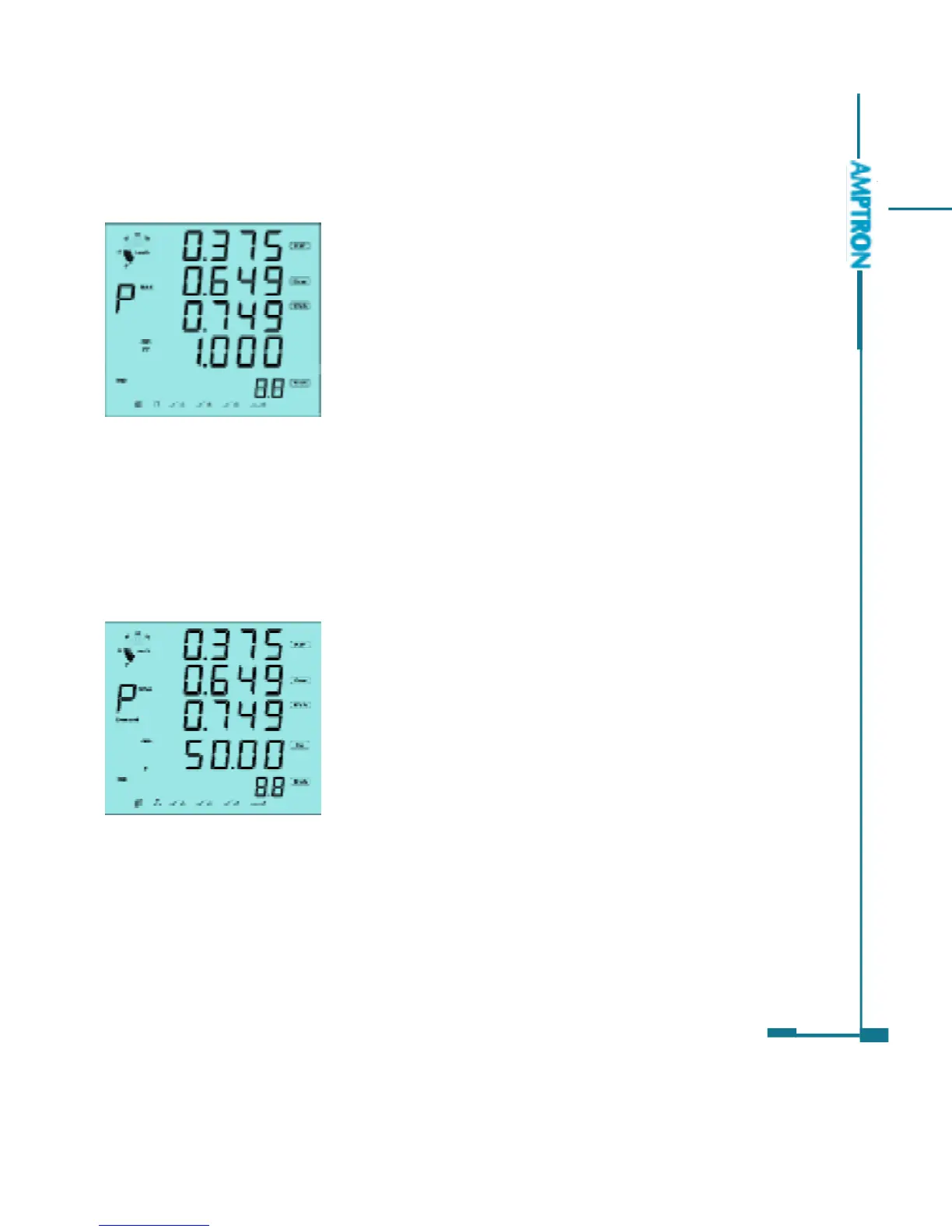

Fig 3.31 Max value of system power
Fig 3.32 Max value of system
demand and frequency
Note: Only Ai205-P2 OR -P3 has the function of Max and Min record.
