AMPTRON Ai205 - DO2 Output Item; Pulse Rate; Pulse Width

The tenth screen: DO2 output item selecting
The DO2 output can be one of the 8 energy
items as in Table3.2.
48
The eleventh screen: The DO pulse width
setting
The DO pulse width is integer from 1 to 50.
One digit represents 20ms.
As in fig 3.44, the pulse width is set to be 2,
that is 2x20=40ms.
The twelfth screen: Energy pulse rate setting
page.
Pulse rate means the energy value per pulse.
It can be the integer of 1 to 6000. One digit
represents 0.1Kwh or 0.1Kvarh.
As in fig 3.45, the pulse rate is 10.

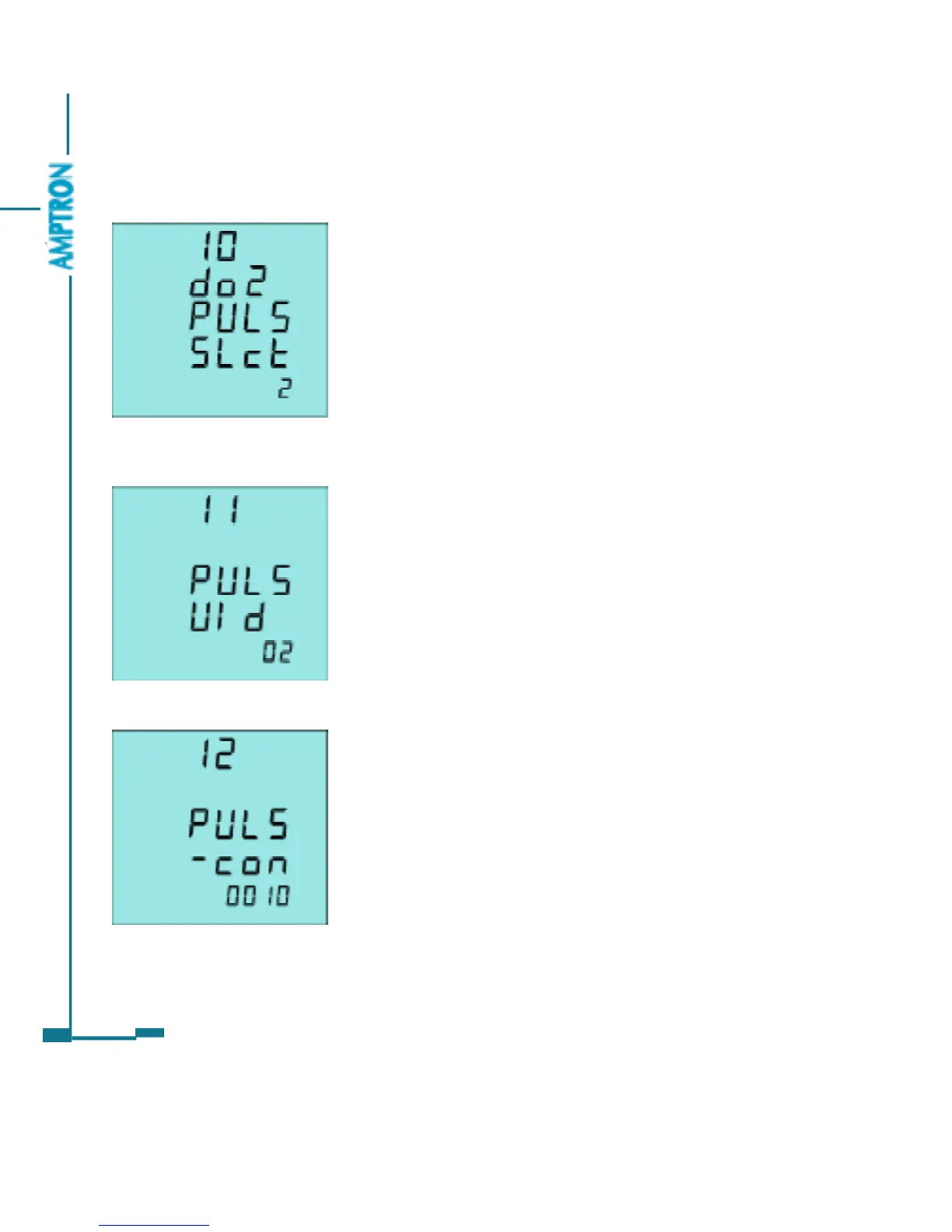

Fig 3.43 DO2 output item
Fig 3.44 Pulse width
Fig 3.45 Pulse rate
