AMX NetLinx NI-3101-SIG

Connections and Wiring
15
NI-3101-SIG Signature Series NetLinx Integrated Controller
DB9 Device Port: Connections and Wiring

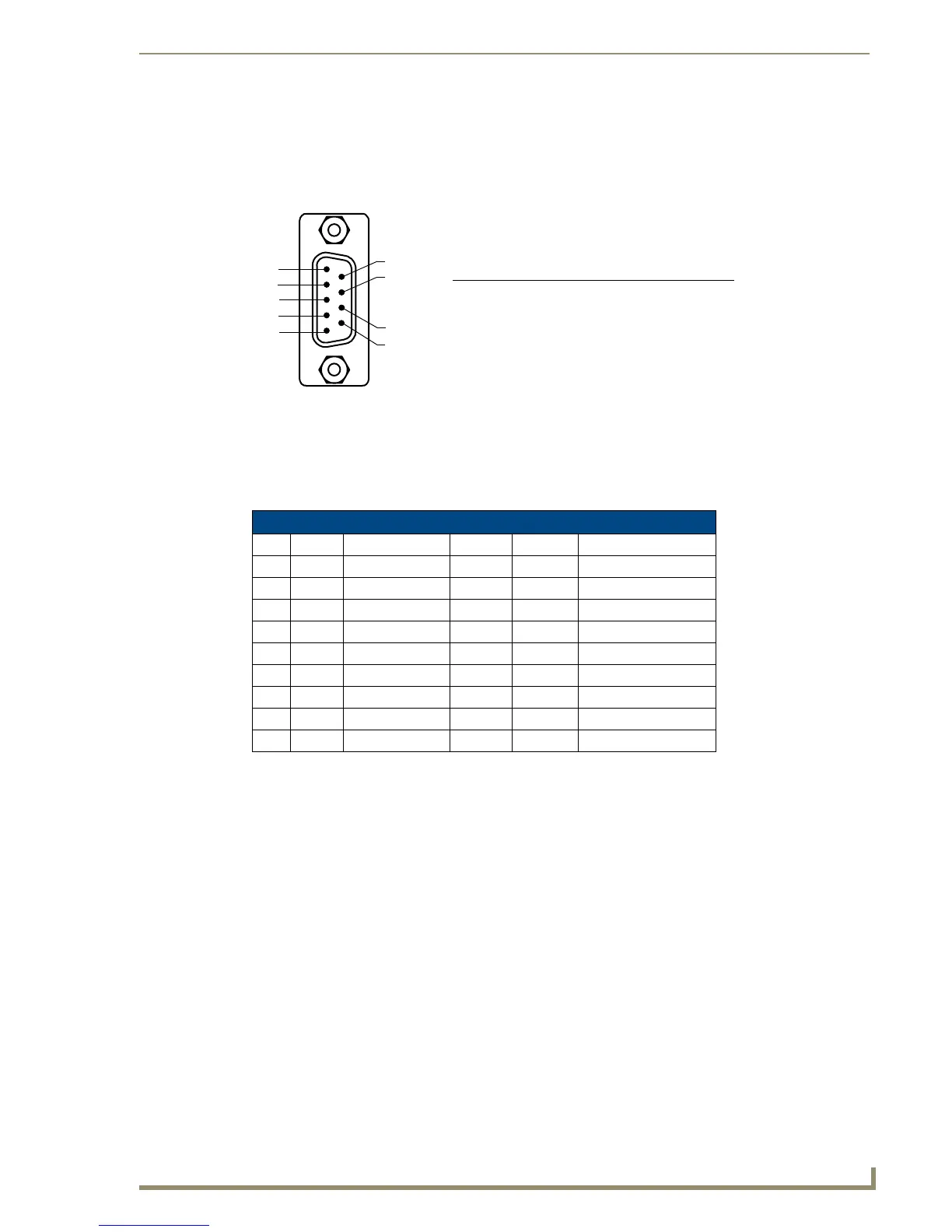

FIG. 7 shows the connector pinouts for the rear RS-232/RS-422/RS-485 (DB9) Device Ports. These
ports support most standard RS-232 communication protocols for data transmission. This figure gives a
visual representation of the wiring specifications for the RS-232/422/485 Device connectors.
The table below provides information about the connector pins, signal types, and signal functions. This
table’s wiring specifications are applicable to the rear RS-232/422/485 Device Port connectors on the
NI-3101-SIG (Ports 1-6).
Relay Port: Connections and Wiring
Up to 8 independent external relay devices may be connected to the Relay connectors on the device.
 Connectors labeled A are for common; B are for output.
 Each relay is isolated and normally open.
 A metal commoning strip is supplied with each device to connect multiple relays.
FIG. 7 RS-232/422/485 DB9 (male) connector pinouts for the rear Device Ports
RS-232/422/485 Device Port Wiring Specifications
Pin Signal Function RS-232 RS-422 RS-485
1 RX- Receive data X X (strap to pin 9)
2 RXD Receive data X
3 TXD Transmit data X
4 TX+ Transmit data X X (strap to pin 6)
5 GND Signal ground X X
6 RX+ Receive data X X (strap to pin 4)
7 RTS Request to send X
8 CTS Clear to send X
9 TX- Transmit data X X (strap to pin 1)
5
4
3
2
1
9
8
7
6
Male
DB9 Serial Port pinouts (male connector)
Pin 2: RX signal
Pin 3: TX signal
Pin 5: GND
Pin 7: RTS
Pin 8: CTS
RS-232
Pin 1: RX -
Pin 4: TX +
Pin 5: GND
Pin 6: RX +
Pin 9: TX -
RS-422
Pin 1: A (strap to 9)
Pin 4: B (strap to 6)
Pin 5: GND
Pin 6: B (strap to 4)
Pin 9: A (strap to 1)
RS-485
