AMX NetLinx NI-3101-SIG User Manual

Introduction
2
NI-3101-SIG Signature Series NetLinx Integrated Controller
NI-3101-SIG Specifications
The NI-3101-SIG (FIG. 1) provides support for 6 configurable RS-232/RS-422/RS-485 Ports, 8 IR/
Serial Output ports, 8 Digital Input/Output ports, and 8 Relays.

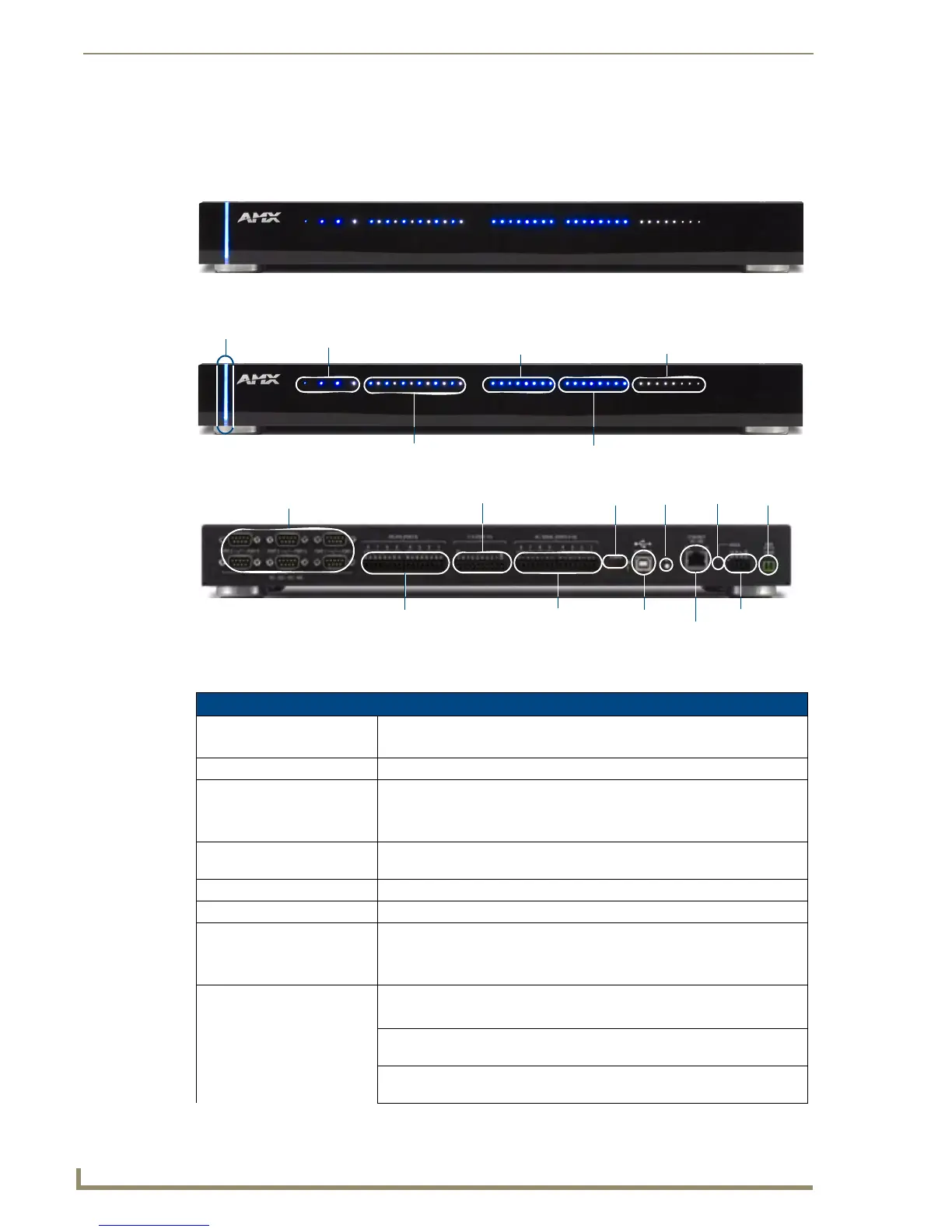

FIG. 1 NI-3101 NetLinx Integrated Controller (front view)
FIG. 2 NI-3101 front and rear panel connectors and components
NI-3101-SIG Specifications (Cont.)
Dimensions (HWD): • 2" (with feet) x 17" x 10" (5.1 cm x 43.2 cm x 26.35 cm)
• 1 RU (rack unit) high
Power Requirement: • 900 mA @ 12 VDC
Memory: • 64 MB SDRAM
• 256 MB Flash
• 1 MB Non-volatile (NV) SRAM
Compact Flash: • 128 MB Card (upgradeable) (refer to the Other AMX Equipment section for
more information)
Weight: • 6.95 lbs (3.15 kg)
Enclosure: • Metal with black matte finish and translucent polycarbonate faceplate
Certifications: • FCC Part 15 Class B
•CE
• IEC 60950
Front Panel Components:
POWER • Blue LED bar lights when powered up
LINK/ACTIVE • Blue LED blinks when the Ethernet cable is connected and an active link is
established. This LED also blinks when receiving Ethernet data packets.
Status • Blue LED blinks to indicate that the system is programmed and
communicating properly.
Link/Active-Status-I/O
RS-232/422/485
TX/RX LEDs
Relay LEDs
I/O LEDs
IR/Serial LEDs
Power
Front
RS-232/422/485
Ports (1-6)
Relays
(Port 8)
I/O
(Port 17)
IR/Serial
(Ports 9-16)
Configuration
switches
Programming
Port
ID
switch
Ethernet
10/100
Port
AXLink
Power
12 VDC
LED
AXLink
Port
Rear
