NI-3101-SIG Signature Series NetLinx Integrated Controller
IR/Serial Port: Connections and Wiring

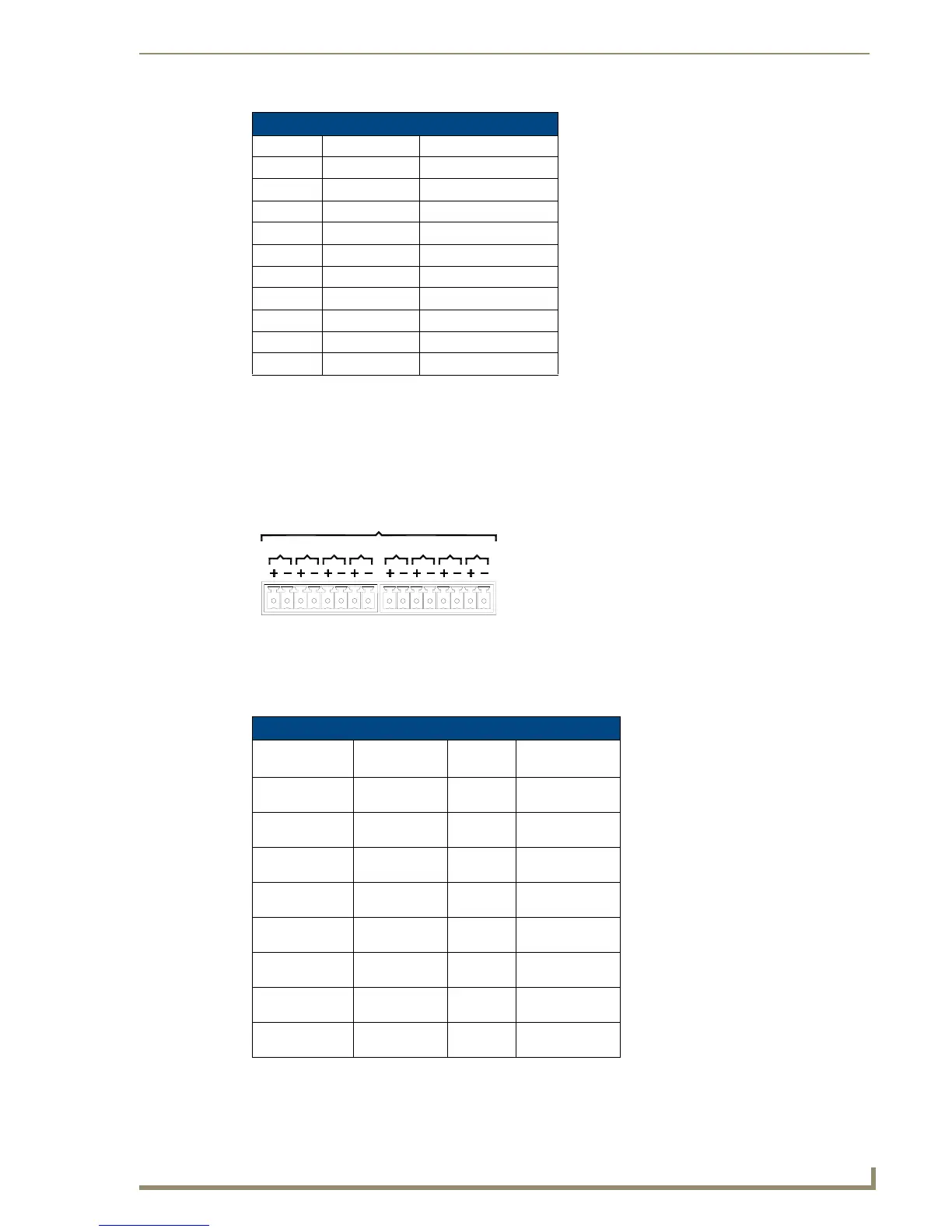

Up to eight IR- or Serial-controllable devices may be connected to the IR/Serial connectors on the rear
of the NI-3101 (FIG. 10). These connectors accept an IR Emitter (CC-NIRC) that mounts onto the
device's IR window, or a mini-plug (CC-NSER) that connects to the device's control jack. A data 0 - 5
VDC device may also be connected. These units come with two CC-NIRC IR Emitters (FG10-000-11).
The IR/Serial connector wiring specifications are listed in the following table:
I/O Port Wiring Specifications - NI-3101-SIG
Pin Signal Function
1 GND Signal GND
2 I/O 1 Input/Output
3 I/O 2 Input/Output
4 I/O 3 Input/Output
5 I/O 4 Input/Output
6 I/O 5 Input/Output
7 I/O 6 Input/Output
8 I/O 7 Input/Output
9 I/O 8 Input/Output
10 12 VDC PWR
FIG. 10
IR/SERIAL (male)
IR/Serial Connector Wiring Specifications (per Port)
Number of IR
connections
NI-3101-SIG
Port #
Signal Function
1 9 GND (-)
Signal 1 (+)
2 10 GND (-)
Signal 2 (+)
3 11 GND (-)
Signal 3 (+)
4 12 GND (-)
Signal 4 (+)
5 13 GND (-)
Signal 5 (+)
6 14 GND (-)
Signal 6 (+)
7 15 GND (-)
Signal 7 (+)
8 16 GND (-)
Signal 8 (+)
IR / SERIAL (Ports 9-16)
8 76 45 321
NI-3101-SIG IR/Serial connector
configuration (Port 9-16)
To Next Page
