NI-3101-SIG Signature Series NetLinx Integrated Controller
Manage System - Diagnostics
This page allows an authorized user to setup and monitor diagnostic messages coming from and going to
devices available on the Online Tree. This dialog also allows the user to watch the ICSP commands
being sent to/from a device. There are several different types of asynchronous notifications that can be
selected for a device:port:system (D:P:S) combination. Each notification type is represented by a column
in the table. All messages are displayed in the Notifications tab of the Output Display window within
NetLinx Studio v 2.4.
1. Click the Manage System link (from within the System Settings section of the Navigation frame).
2. Clicking on any of the Online Tree items opens menu items with the Diagnostics button option
available.
3. Click the Diagnostics button to open the Diagnostics dialog (FIG. 46).
4. Use the Refresh Interval drop-down to select from the following values: 2 seconds, 5 seconds, or
10 seconds. This refresh interval allows you to select how often the messages are updated.

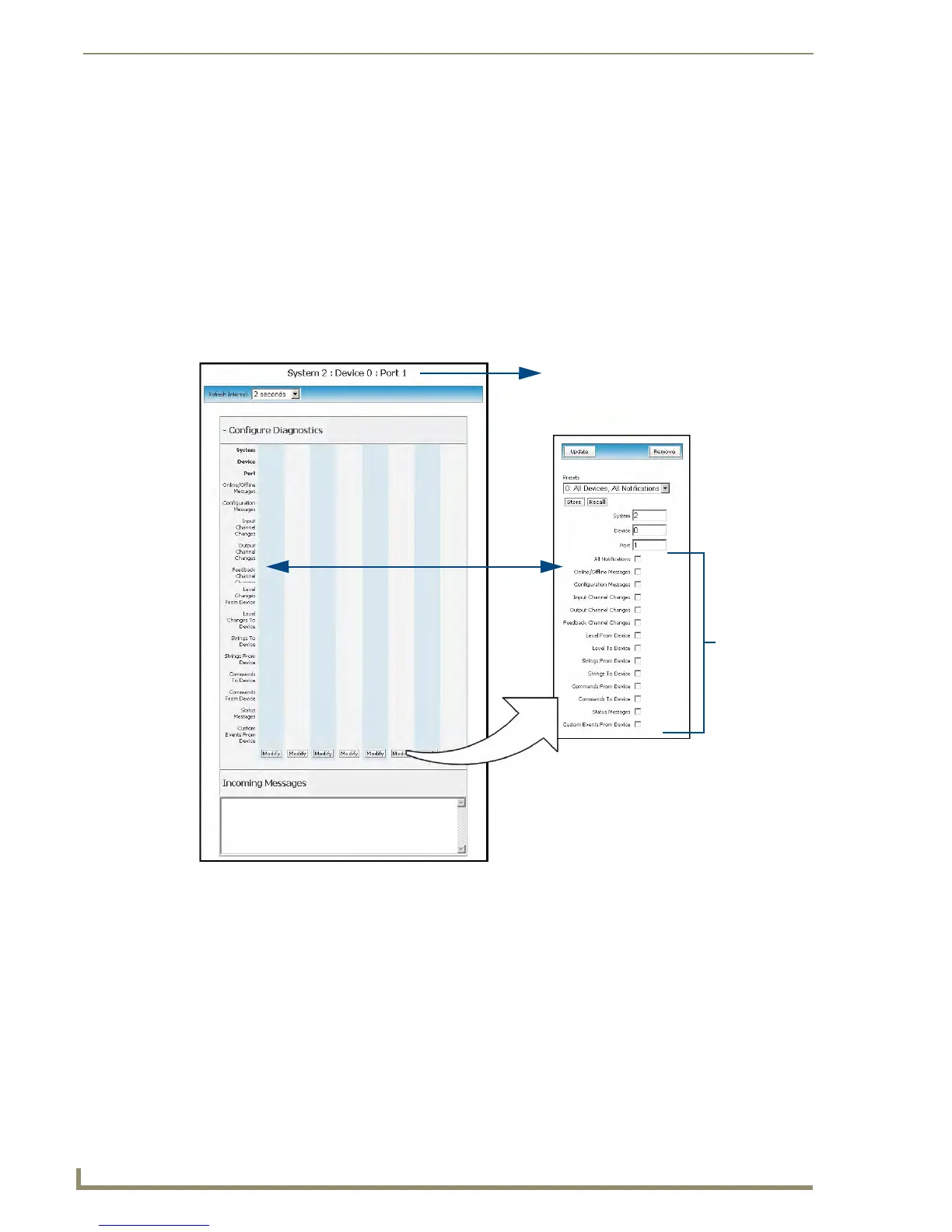

FIG. 46 Diagnostics dialog (showing modify popup)
Device Configuration
dialog
NetLinx
Notification
types
Selected device
