version 2.0 rev 18 Feb 2021
15
1.6 Cooling Hose Connectors (Water Cooled Models only)
TT
There are two connectors to allow connection of Water Cooled Zyla models to a water cooler or
re-circulator. Hose inserts are provided to enable connection to coolant hoses.

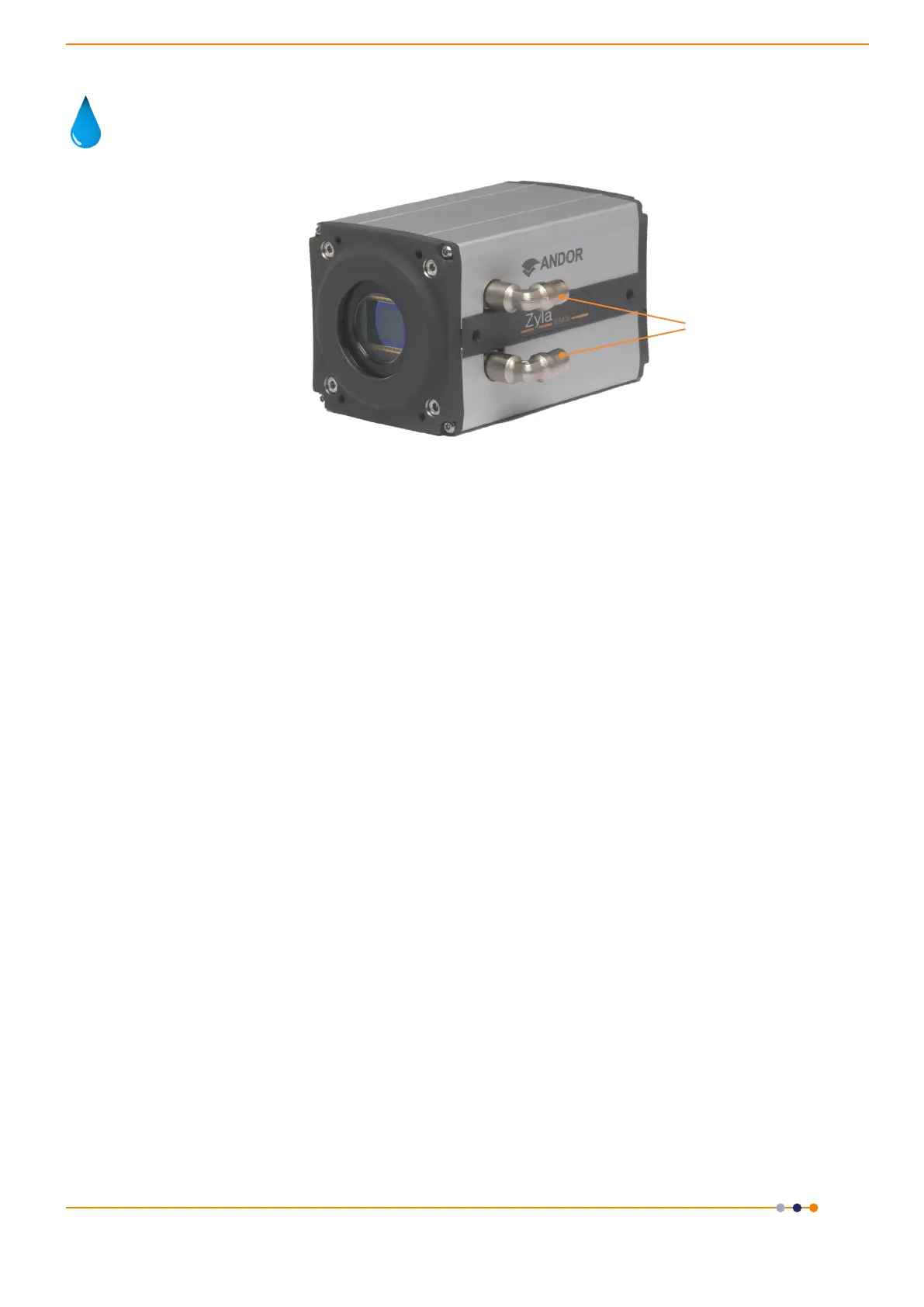

Figure 6: Zyla Cooling Hose Connectors
Please refer to Section 3.3 for details of connector and hose type compatibility and for connection and
disconnection information.
1.6.1 Important Considerations when using Cooling Systems
• Always ensure that the temperature of the liquid coolant circulated through the camera head is
above the dew point of the camera ambient temperature and humidity conditions. Refer to the dew
point graph in Appendix C for guidance.
• Use of coolant at or below the dew point can result in permanent damage to the camera head, due
to formation of condensation on internal components.
• In the event that replacement hose inserts / barbs are required, please contact your local Andor
representative.
Coolant pipes for
connection to water
cooler or re-circulator
