2.6.2.8 Rolling Shutter External Start Triggering
In this mode the camera will wait for a single external trigger event. Once this external trigger event is detected,
the camera will progress as if the camera was in internal trigger mode (see Section 2.6.2.3 and 2.6.2.4). The ARM
signal indicates to the user when the camera is ready to detect an External Start Trigger. Figure 23 below shows the
External Start used in Non-overlap Mode, Long Exposure. The delay from the External Trigger to start of exposure is
1 Row.

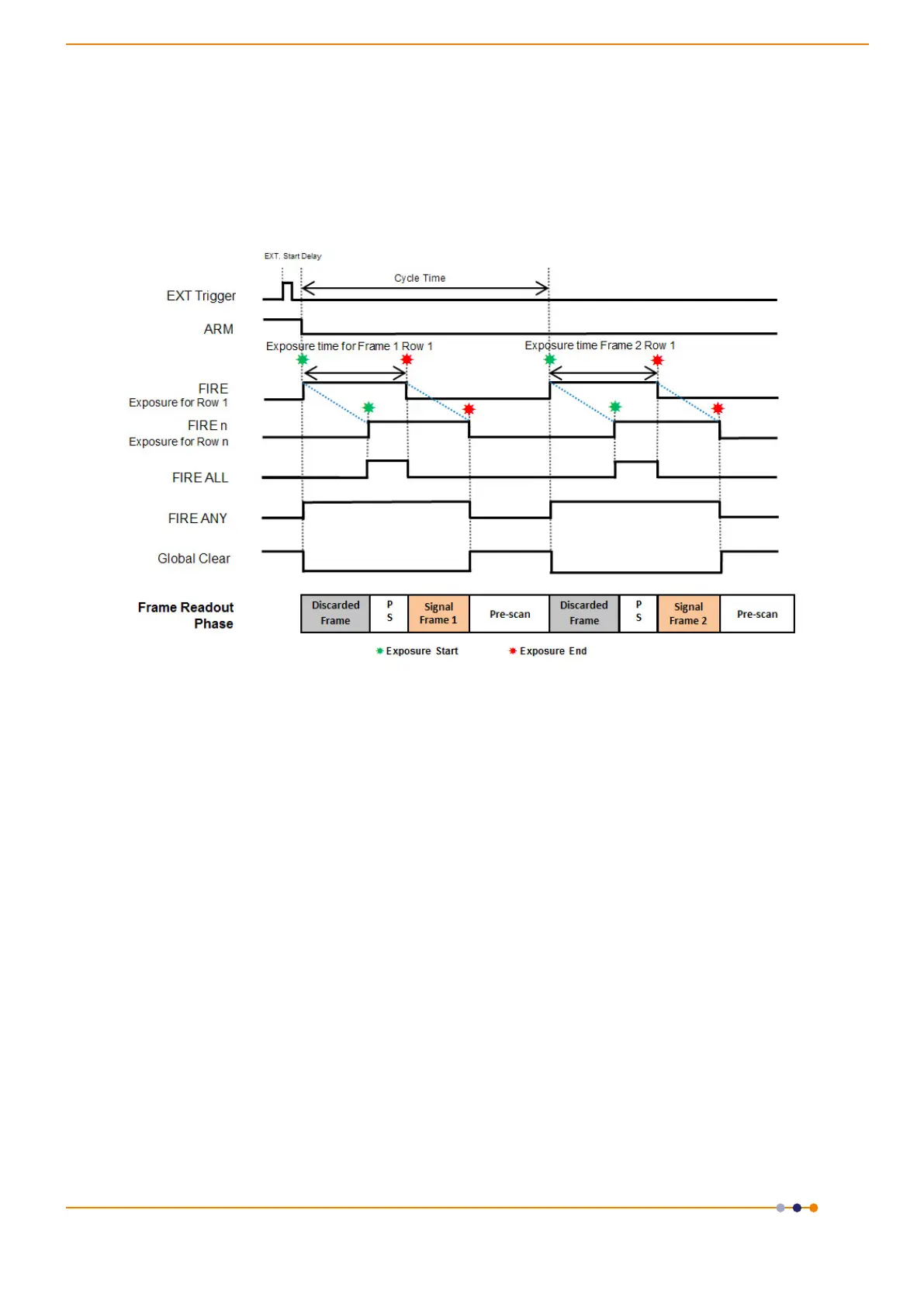

Figure 22: Rolling Shutter External Start Triggering (Non Overlap)
