2.6.2.9 Rolling Shutter Global Clear Internal (Non-Overlap Mode)- Zyla 4.2 only
Rolling Shutter Global Clear is an extended Rolling Shutter Mode. If enabled, the sensor rows are held in a
global clear state to ensure there is no charge build-up on the sensor. When the camera is taken out of the
Global Clear state, the exposure period begins for all rows in the sensor. When the required exposure period for
Row 1 has completed, a signal frame rolling shutter readout phase begins. This means all rows have the same
exposurestarttimebutdierentexposureendtimes.
When the frame has been read out completely, the camera is returned to the Global Clear state until the user-
denedcycletimeisachievedorexternaltriggerisdetected(ifinanexternaltriggeringmode).
Rolling Shutter Global Clear mode is best used in conjunction with illumination controlled by the Fire ALL signal.

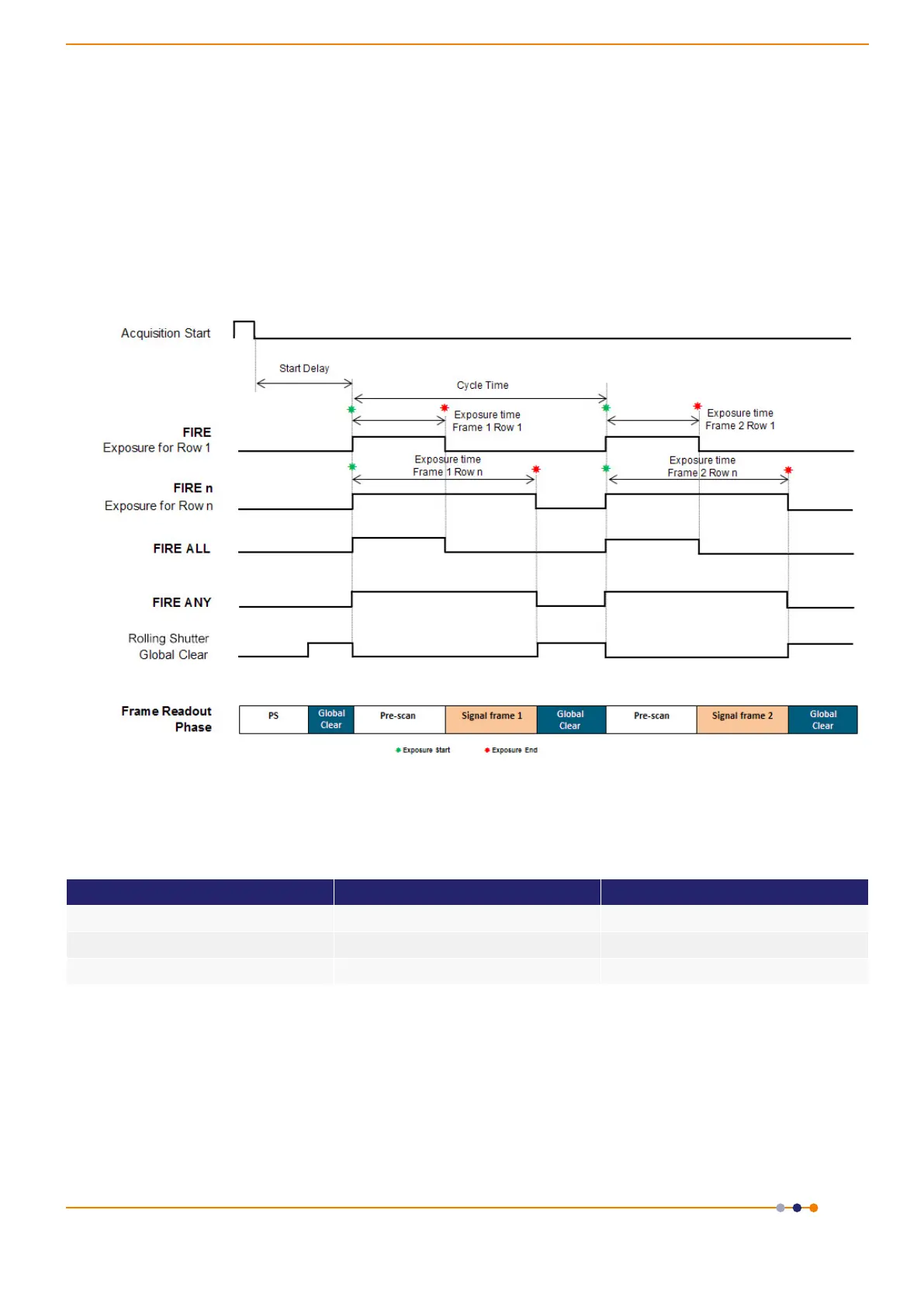

Figure 23: Rolling Shutter Global Clear- Internal (Non-Overlap Mode) - Zyla 4.2
Table 18: Rolling Shutter Global Clear Internal (Non Overlap Mode) Timing Parameters - Zyla 4.2
Parameter Minimum Maximum
Exposure* 1 Frame + 1 Row 30s
Cycle Time (1/Frame Rate) Exposure + 1 Frame + 5 Rows 20,000s
Acquisition Start Delay - 2 Rows
*The exposure time reported is the exposure time for ROW 1 and the period for which FIRE ALL is HIGH.
