APPENDIX B: MECHANICAL DRAWINGS
Zyla Mechanical Drawings
Air Cooled Models

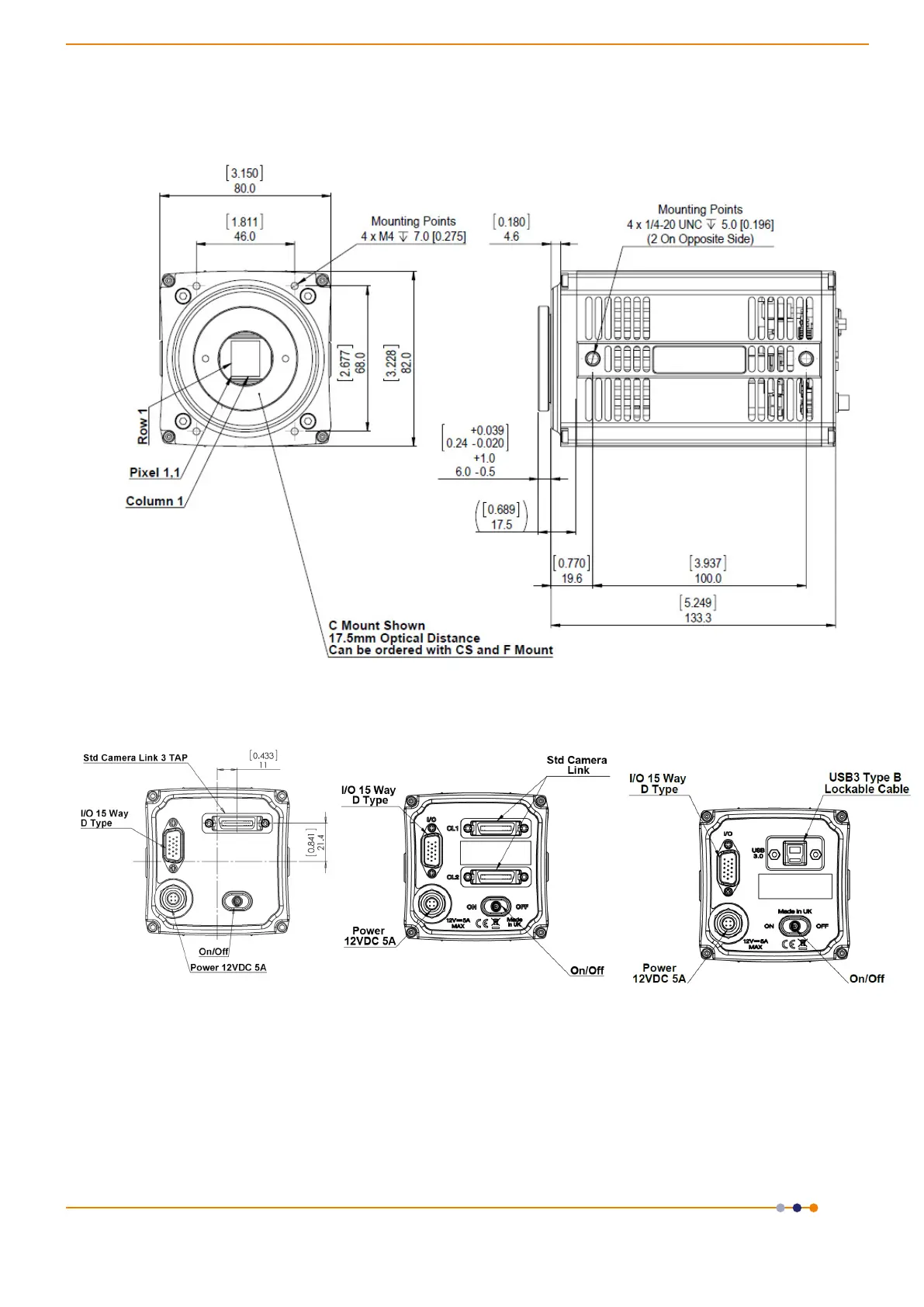

Zyla 5.5 3-tap version Zyla 5.5 and Zyla 4.2 10-tap Zyla 5.5 and 4.2 USB 3
Below: Zyla Mechanical Drawings for water cooled versions of Zyla 5.5 and Zyla 4.2.
