Andor Technology Zyla sCMOS 4.2 PLUS User Manual

version 2.0 rev 18 Feb 2021
51
2.6.3.6 Global Shutter External Start Triggering
In this mode the camera will wait for a single external trigger event. Once this external trigger event is detected,
the camera will progress as if the camera was in internal trigger mode. The ARM signal indicates to the user
when the camera is ready to detect an External Start Trigger. The diagram below shows the External Start used
in an Internal Trigger Non-Overlap Mode.

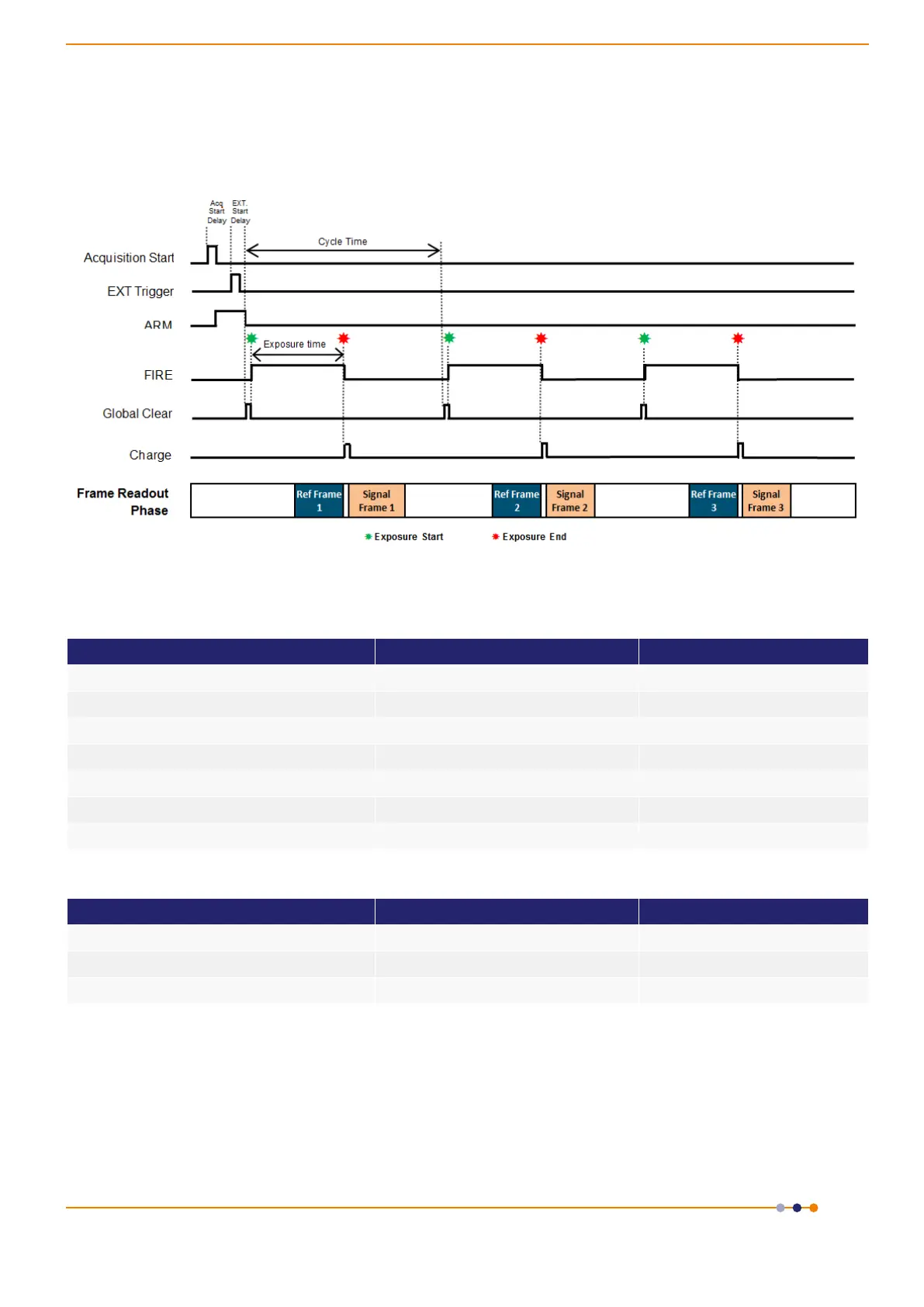

Figure 33: Global Shutter External Start Triggering
Table 30: Global Shutter External Start Triggering Timing Parameters (Overlap O)
Parameter Minimum Maximum
Exposure 1 Row 1 Frame + 3 Rows
External Start Delay 0 1 Frame
EXT Trig Pulse Width 2 Sensor Clock Speed Cycles
Exposure 1 Frame + 4 Rows 30 s
External start Delay 1 Row 2 Rows
EXT Trig Pulse Width 2 Sensor Clock Speed Cycles
Table 31: Global Shutter External Start Triggering Timing Parameters (Overlap On)
Parameter Minimum Maximum
Exposure 1 Frame + 1 InterFrame + 1 Row 30 s
External Start Delay 1 Row 2 Rows
EXT Trigger Pulse Width 2 Sensor Clock Speed Cycles
