7.7. Core probe
To replace the core probe, follow the instruction below:

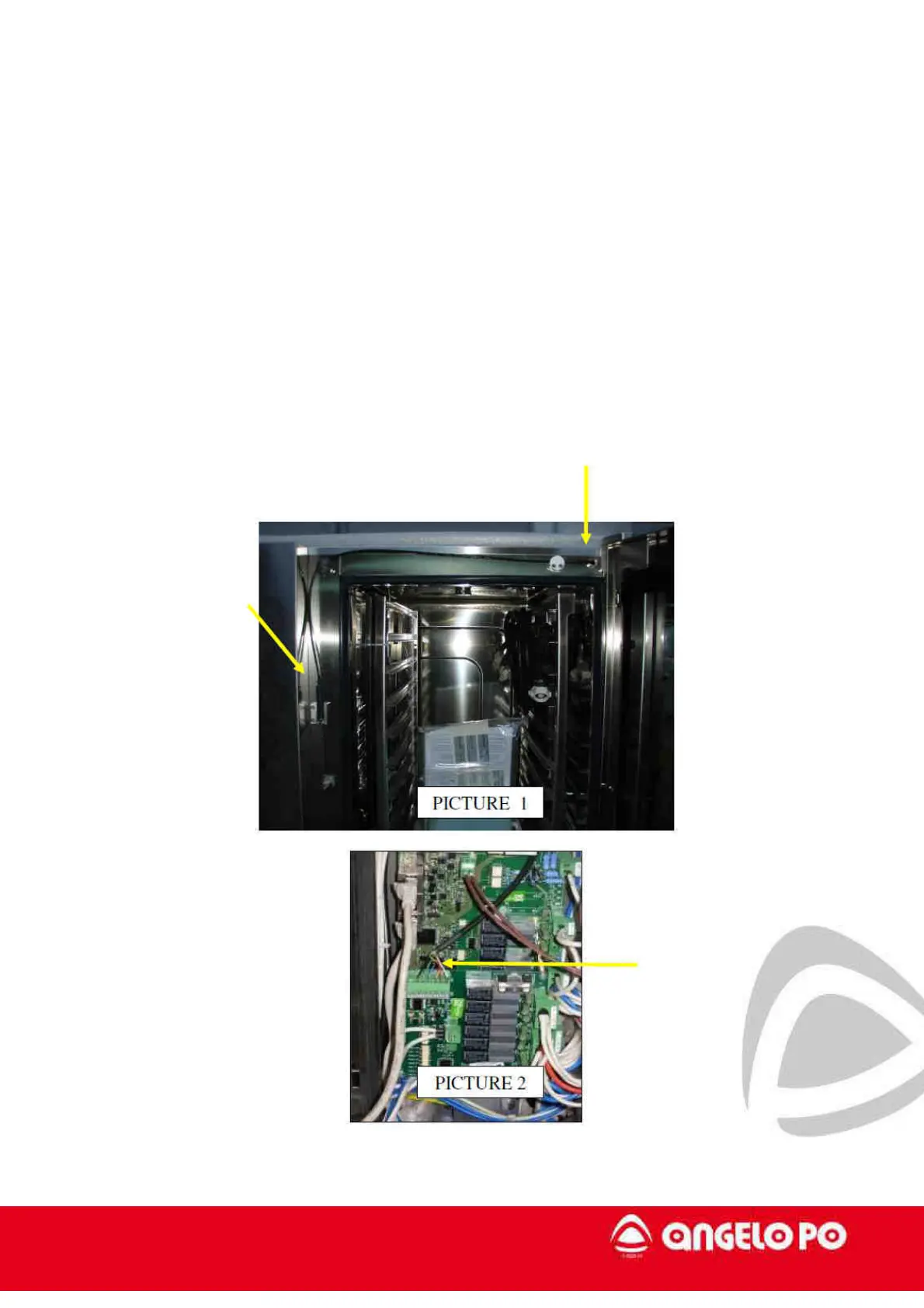

1. the probe cable goes into the pipe (picture 1) without gasket and pass on the teflon
bushing;
2. the correct positioning of the probe is shown in the picture 2;
3. the terminals of the probe are connected to the power board, the white one on the
plug 73, for the others is the same.
