4.2. System components

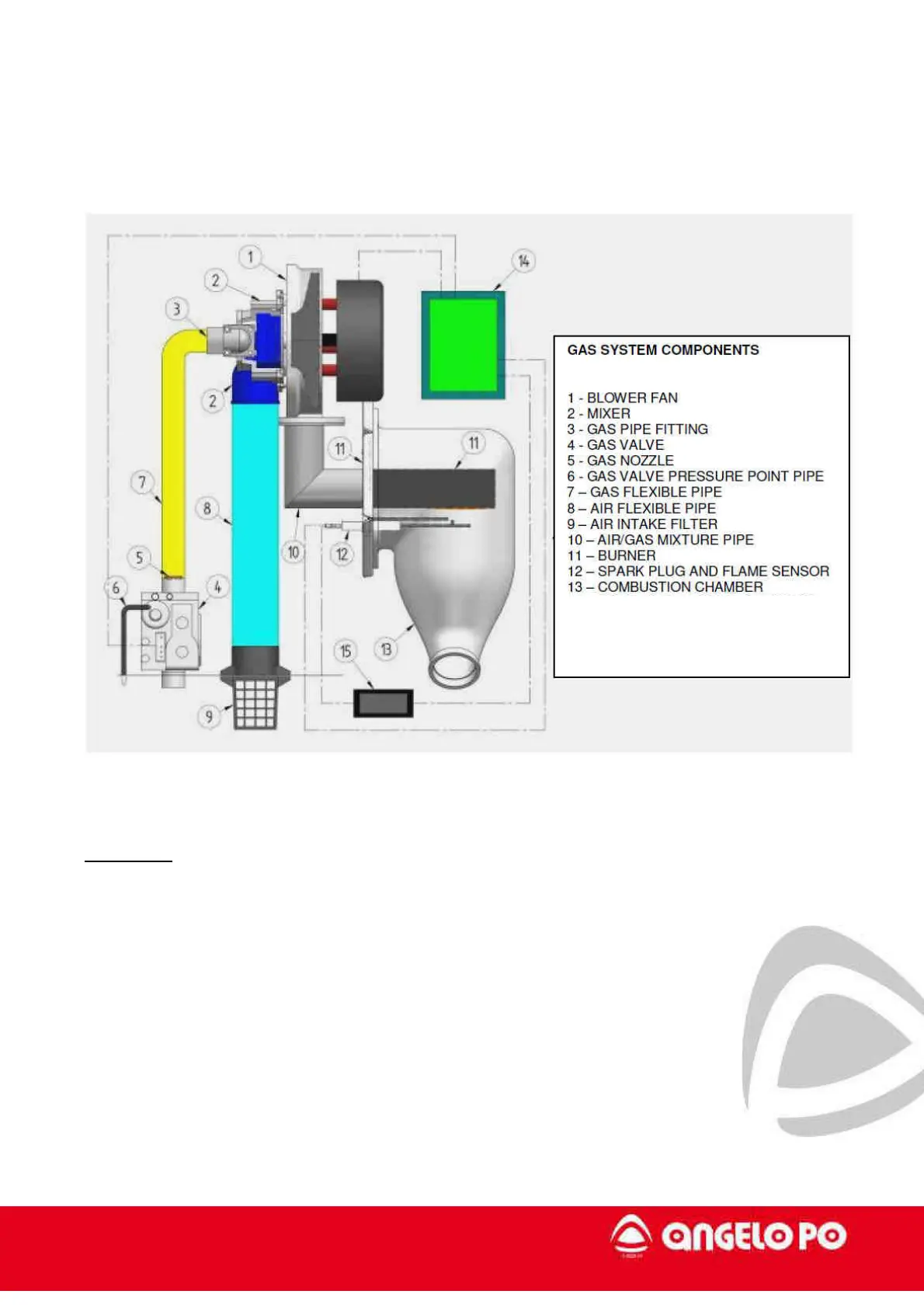

The picture shows all the components of the gas system.
Attention:
- Always check before every intervention that all components are securely attached
(electrical connectors, screws, clamps, fittings, insulation materials ..)
- Be sure the air inlet filter (9) and the exit of the gas valve pressure test point pipe
(6) are totally clean (if necessary clean them properly).
- As the gas inside the tube (7) and the fitting (3) is at negative pressure, in case of
leak to find it don’t use flame because it could be sucked in the mixer and cause a
fire / explosion.
14 - BLOWER CONTROL BOARD
