Angelo Po FX201E2 - Ignition Standard Cycle

Copyright by Servizio Clienti ANGELO PO Spa
59
4.3.1. Ignition standard cycle

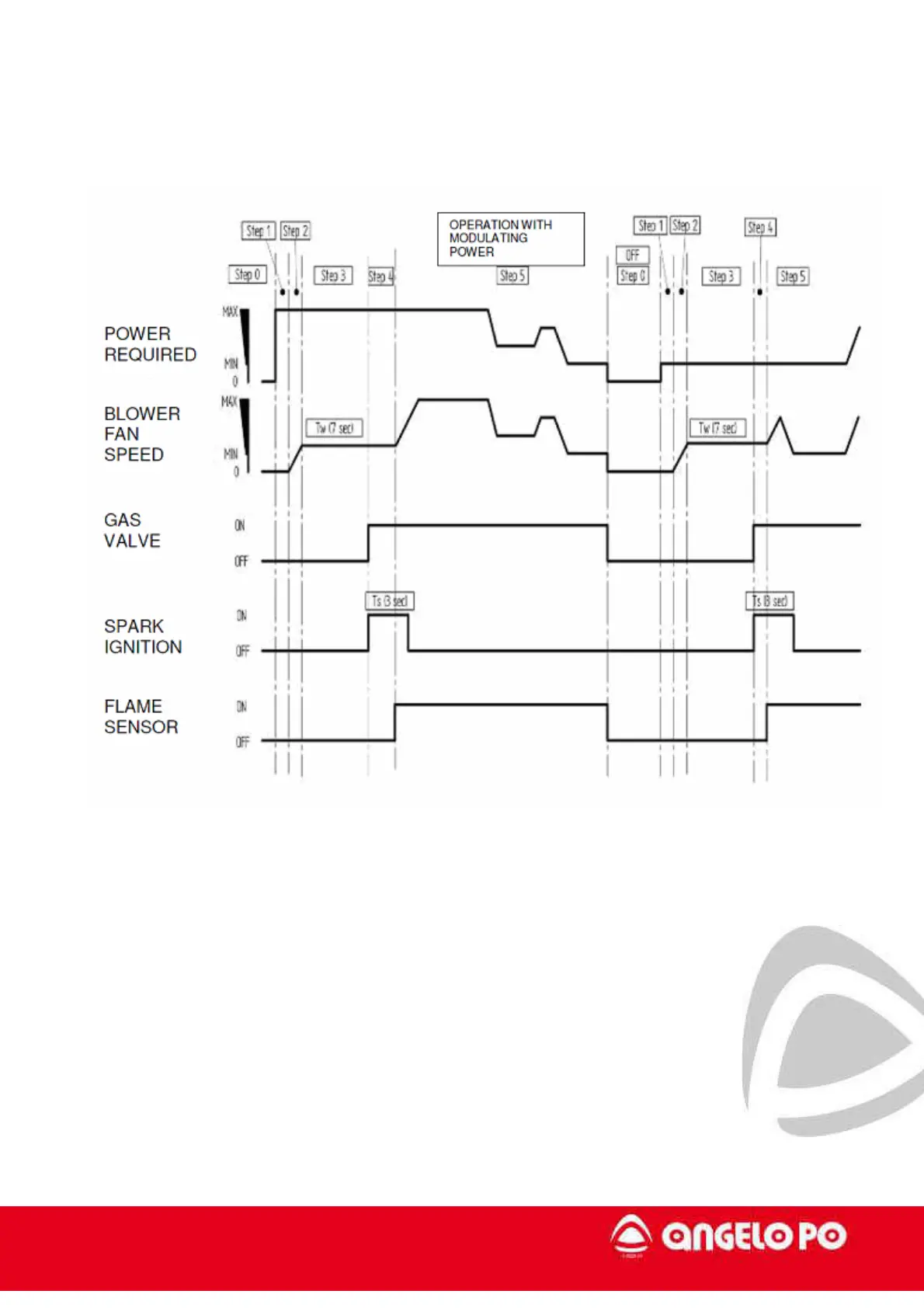

The diagram shows 2 ignition cycles (step 1-5): the first operational phase (step 5) has a
modulating working, the second, the minimum power range working.
The difference between the two cycles is the speed of the blower, which varies with the
required power.
