Copyright by Servizio Clienti ANGELO PO Spa
109
7.14. CPU and display LCD boards (LIV.3) replacing

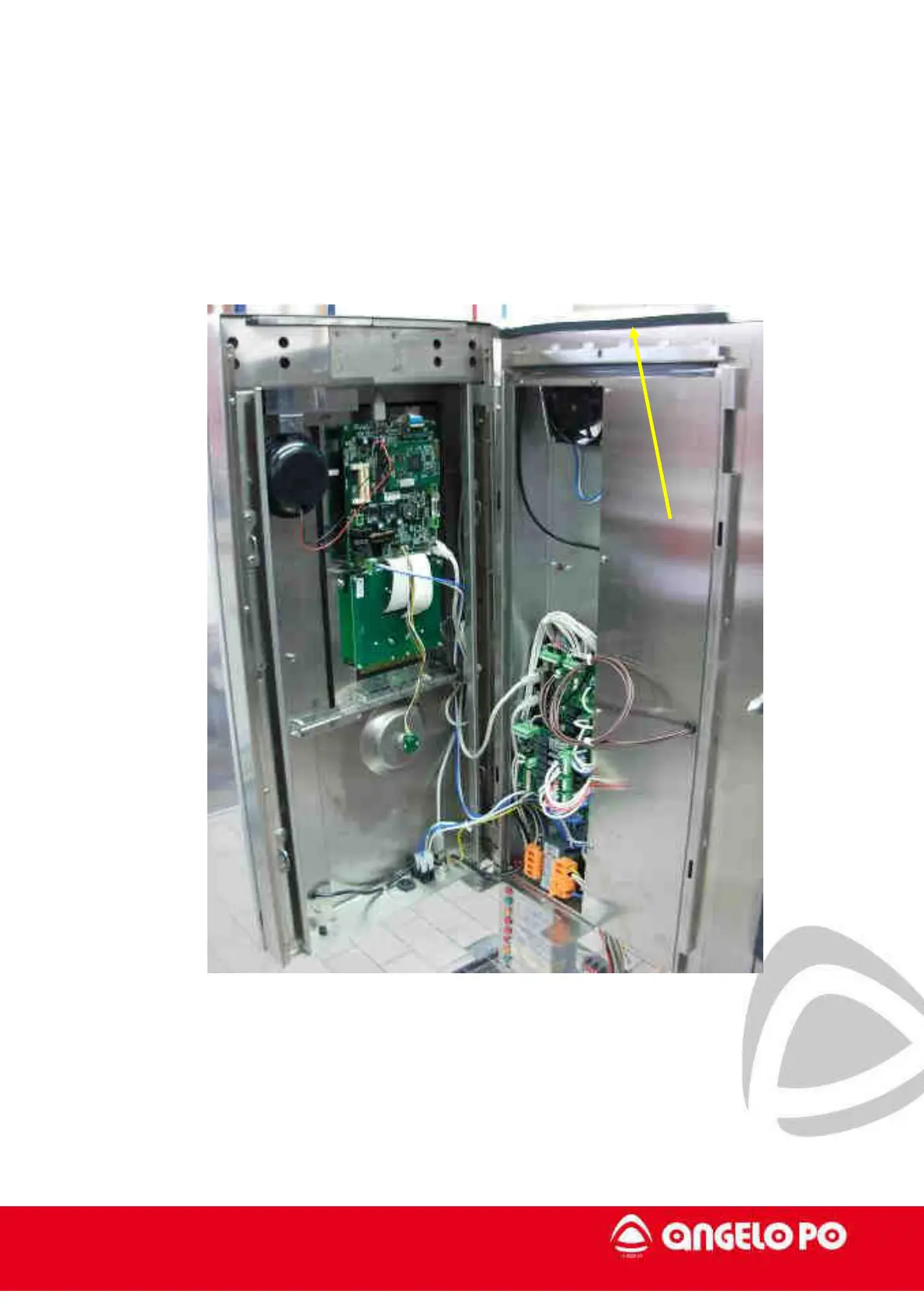

To access the replacement of such components, unscrew the two screws TE M5 placed on
the bottom of the dashboard that opens like a book.
