7. DISMANTLE AND REASSEMBLY COMPONENTS

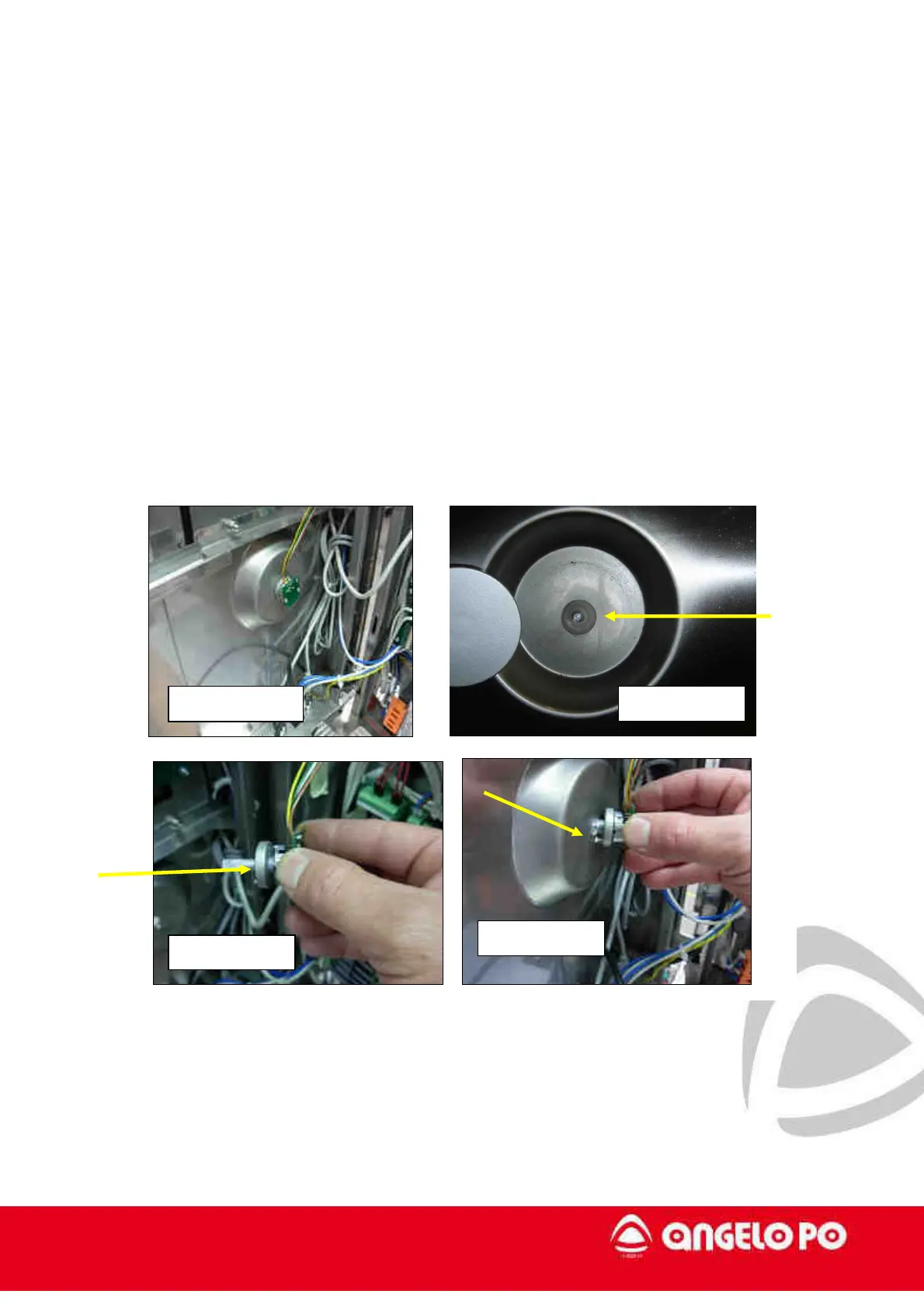

7.1. Encoder
To replace the encoder, follow the instruction below:
1. Encoder from the back (picture 1 );
2. Encoder from the front, don’t forget the washer ( picture 2);
3. the pin on the encoder goes into the hole on the spacer (picture 3) ;
4. All the assembly should be put in place with the pin into the hole on the dashboard
(picture 4).
PICTURE 1 PICTURE 2
PICTURE 3
PICTURE 4
