Animo OptiFresh - Interface; Display; Power Supply

72
05/2008 Rev. 0.6
6.1.2 Interface / Display

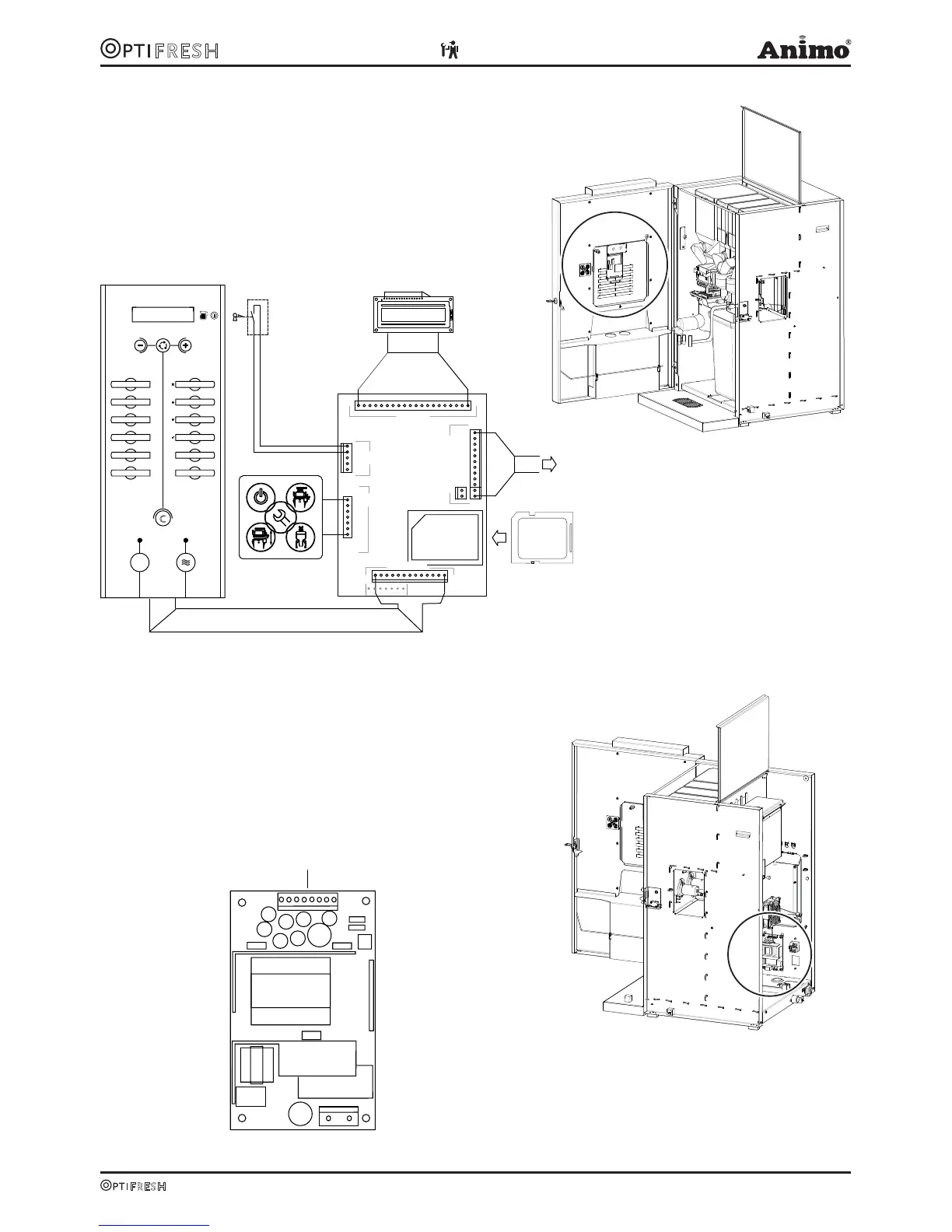

The interface (fig. 17) connects all components found
inside and on the door with the main control unit via a
flat cable.
6.1.3 Power supply
The 24 V DC power supply (fig. 18) consists of a
24V DC 65W switch mode power supply and can be
accessed by removing the rear plate. The power supply
is located under the main circuit.
During an overload the power supply automatically
switches off. Reset the power supply by turning the
main switch off and on.
SD Memory Card
Animo OptiFresh
C
SD-READER
KEYSWITCH
MAIN BOARD
DISPLAY
SERVICE KEYBOARD
J1
JP2
JP3
J3
J14
J2
TO MAIN PC BOARD
KEYBOARD
J4
JP4
+24V GND
84-265 Vac
1
Fig. 17
Fig. 18
Fig. 17a
Fig. 18a
