78
05/2008 Rev. 0.6

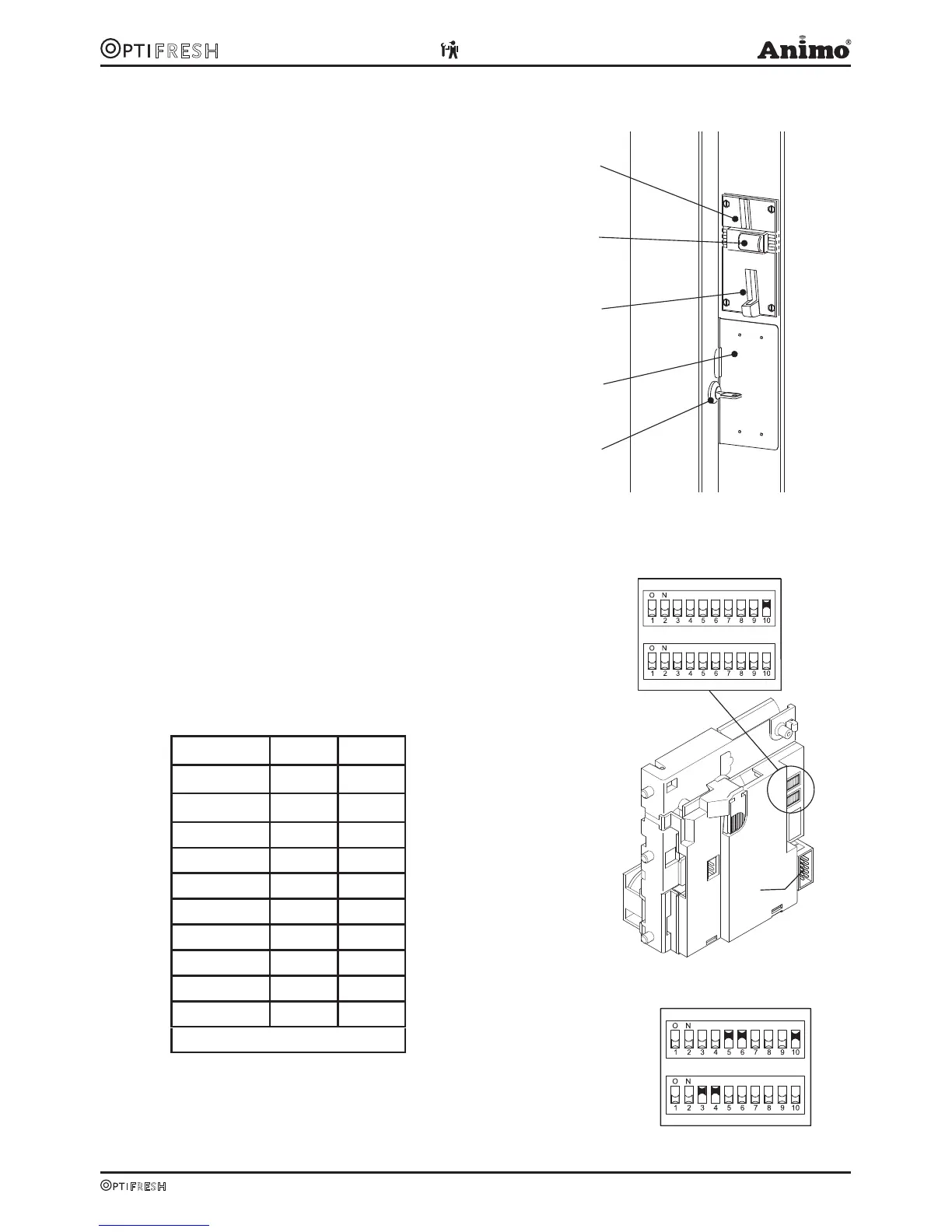

8. COIN MECHANISM (OPTIONAL)
The OptiFresh is available with an optional coin
mechanism suitable for euros (€0.05 - €2.00). Other
currencies are available on request.
The coin mechanism can also easily be programmed to
accept tokens.
It is also possible to have an existing device fitted
with the coin mechanism. The right-hand side panel is
replaced by a wider side panel, which houses the coin
mechanism and slot (fig. 23).
1. Coin insert
2. Return button
3. Return slot
4. Money drawer
5. Door lock (also locks the money drawer)
8.1 Standard configuration
Fig. 24 shows the standard configuration of the DIL
switches, S1-10 ON
The coin mechanism is connected to the device with a
connector (Fig. 24A).
8.2 Rejecting coins
If desired, certain types of euro coins can be rejected by
using DIL-Switch block S1 + S2 (fig. 24).
Coin DIL + DIL
€ 0,05 S1-1 S1-7
€ 0,10 S1-2 S1-8
€ 0,20 S1-3 S2-1
€ 0,50 S1-4 S2-2
€ 1,00 S1-5 S2-3
€ 2,00 S1-6 S2-4
Token 607 - S2-5
Token Eagle - S2-6
Token new - S2-7
Token new - S2-8
ON = rejected / OFF = accepted
Example: Reject €1 and €2 euro coins (fig. 25)
● S1-5, S2-3 -> ON (€ 1,00 rejected)
● S1-6, S2-4 -> ON (€ 2,00 rejected)
1
2
3
4
5
S1
S2
A
S1
S2
Fig. 23
Fig. 24
Fig. 25
