Animo OptiFresh - 1 Basic Functioning

05/2008 Rev. 0.6
45

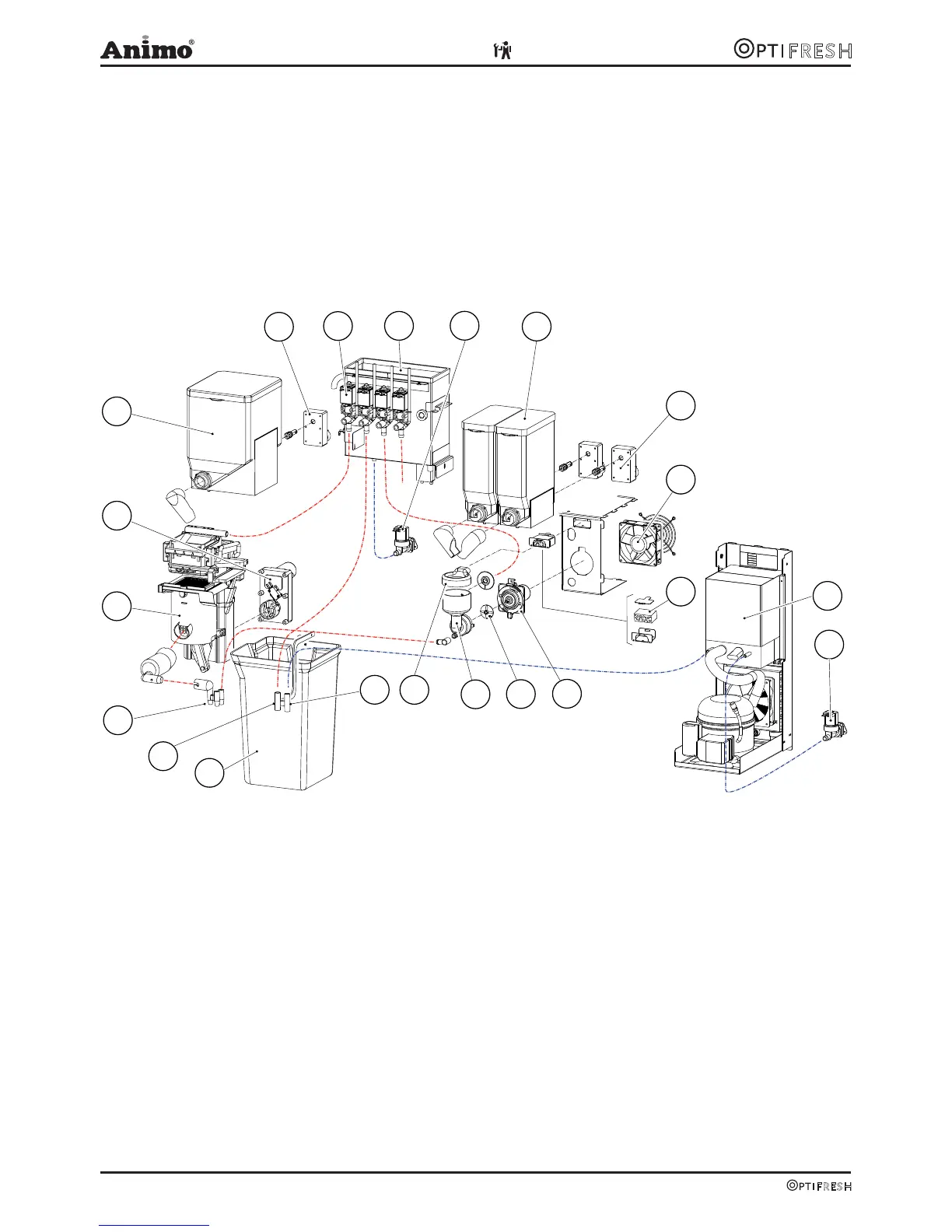

1. BASIC FUNCTIONING
1. Waste bin 6. Fresh brew coffee canister
2. Hot water outlet 7. Coffee canister motor
3. Coffee outlet/Drink outlet (instant) 8. Dispensing valves
4. Brewer 9. Water reservoir
5. Brewer motor 10. Inlet valve
Instant (OptiFresh 2 model and upwards)
11. Instant ingredient canisters 15. Mixer motor
12. Canister motor 16. Mixer impellor
13. Ventilator 17. Mixer housing
14. Evaporation extractor filter cassette 18. Evaporation extractor ring
Cold water (optional)
19. Cold water outlet 22. Inlet valve
21. Cooling unit (base cabinet)
Fresh brew Instant
11
1
2
3
4
5
6
7
8
12
13
14
15
17
18
16
9
10
Cold water
(optional)
20
21
19
Fig. 1
