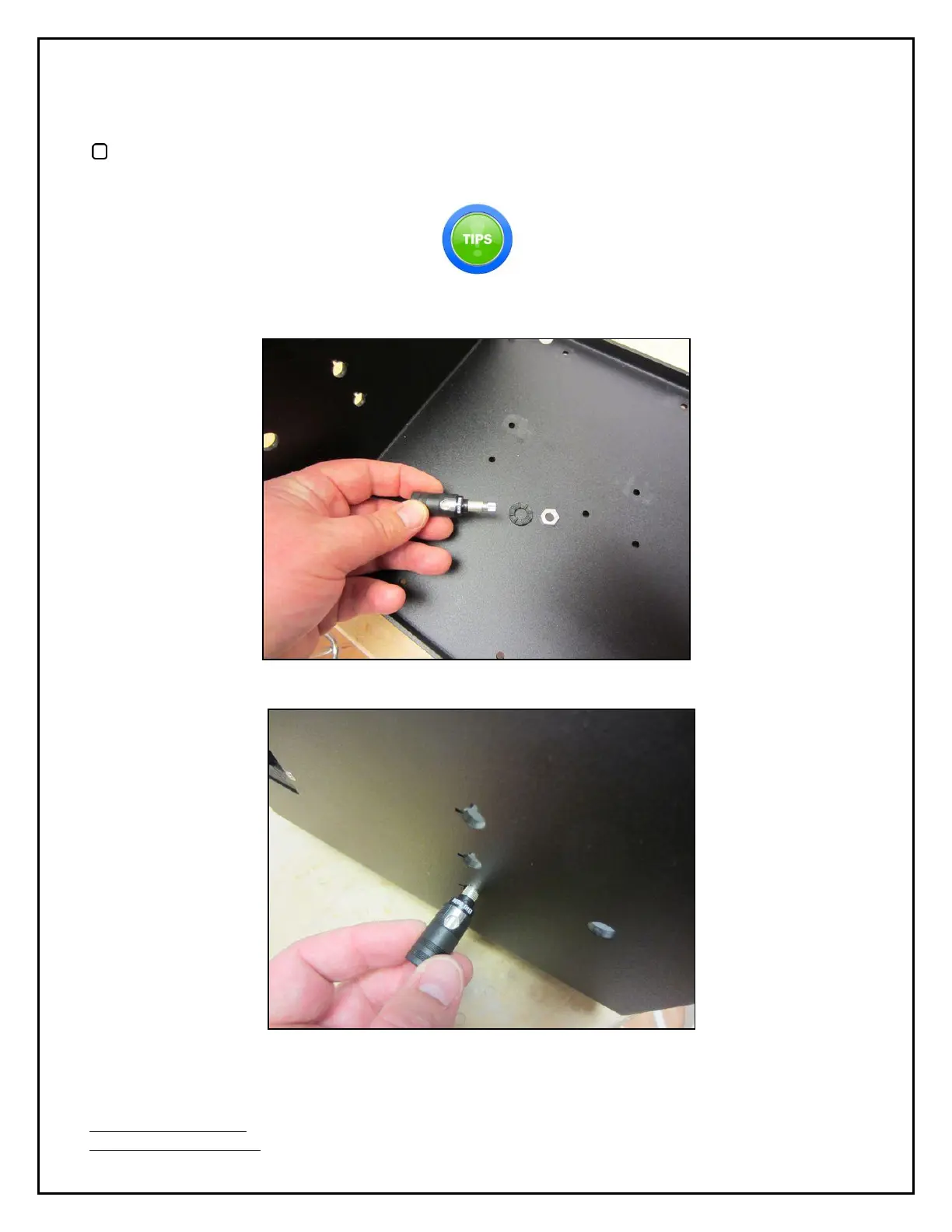

2.4 Installing the Speaker Posts
Install the 2 pairs of speaker posts found in chassis fittings bag. Let's put the Red (POSITIVE)
posts on top and the Black (NEGATIVE) posts on the bottom.
To make it easier to solder a wire to a speaker post it's a good idea to orient the center tab facing up.
The view from inside the chassis:
Note the insulation against the chassis
.
