9.2.2 Installing the Tag Strips

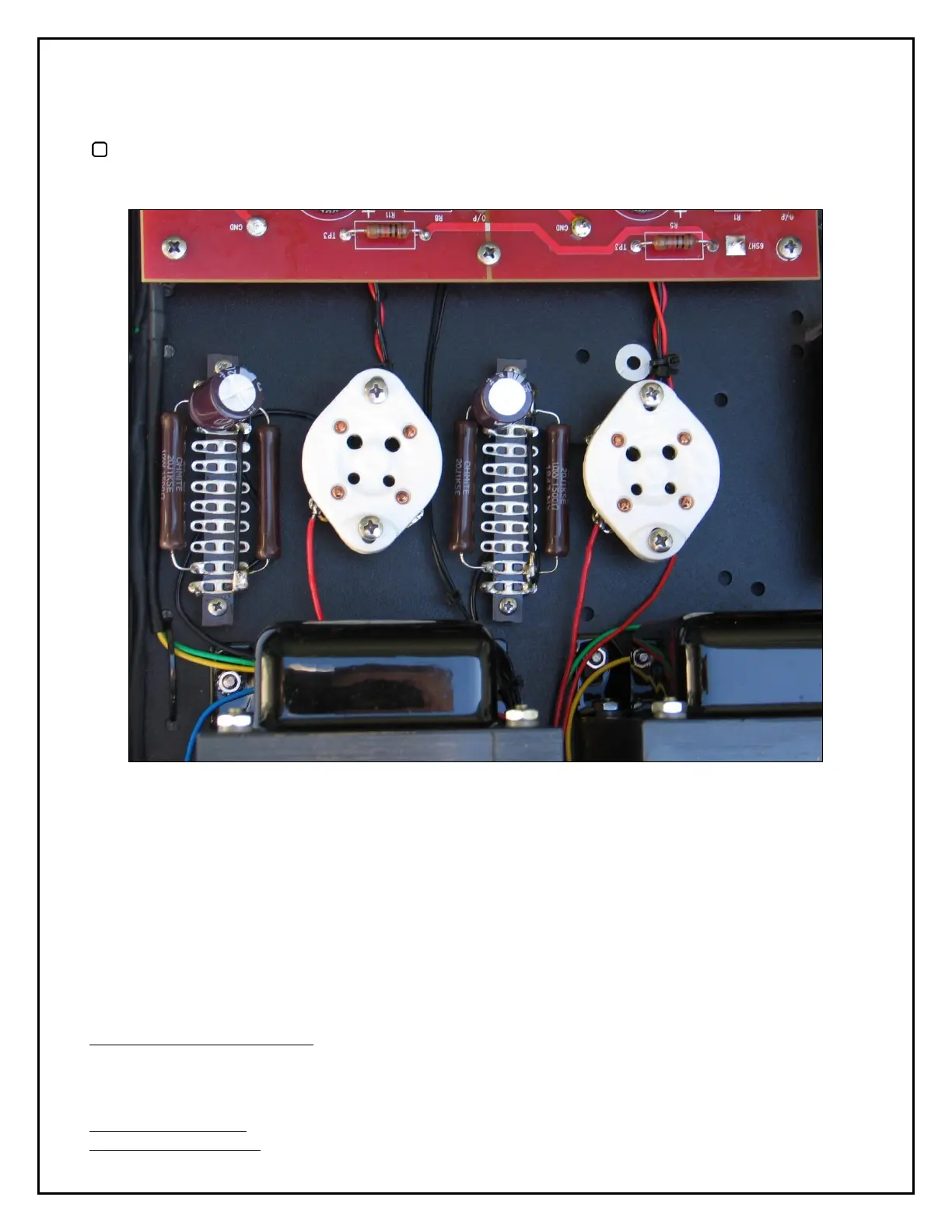

Using the supplied M3 (7mm screws) hardware, mount the tag strips to the chassis, oriented with
the capacitors nearest the Driver board, as shown below
13
:
13
The 1.5 10W resistors get hot, so, if you've routed wires along the side of the chassis and they're close to the
10W resistor, you can bend it up a bit to 'give it more air'.
